| System | Trigger Events Snapshot, Voice Prompt, Buzzer and Screen Tips |
|---|
| Main Processor | Multi-core embedded processor Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Video Detection Tampering and Scene Change |
|---|
| 操作系統 | Embedded LINUX Alarm Input 4 Channel |
|---|
| 周界防護 | Alarm Output 2 Channel |
|---|
| Performance | 4 channel, 10 IVS rules for each channel Playback and Backup Human/Vehicle secondary recognition for tripwire and Sync Playback 1/4/9/16 Object classification intrusion Time /Date, Alarm, MD and Exact Search (accurate to |
|---|
| Search Mode | second) |
|---|
| AI Search | Search by target classification (Human, Vehicle) by targe |
|---|
| Backup Mode | USB Device/Network Face Recognition Third-party Support Max 12 face pictures /sec processing |
|---|
| stream face recognition ( with FD camera) | and more Detect strangers' faces(not in device's face database). Stranger Mode |
|---|
| Similarity threshold can be set manually. | Network Up to 8 target face images search at same time, similarity Interface 1 RJ-45 Port (10/100/1000Mbps) AI Search threshold can be set for each target face image. Up to 10 face databases with 20,000 face images in total. 16 ports (IEEE802.3af/at) Name, gender, birthday, address, certificate type, certificate 1-8 ports support ePoE & EoC Database Management No., countries®ions and state can |
|---|
| Database Application | etc.), P2P independently. Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Max. User Access 128 users Trigger Events Out, PTZ Activation, etc. |
|---|
| Mobile App | iPhone, iPad, Android Audio and Video |
|---|
| Interoperability | ONVIF (Profile S), SDK, CGI |
|---|
| IP Camera Input | 16 Channel |
|---|
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA Storage |
|---|
| Internal HDD | 2 SATA III Ports, Up to 8 TB capacity for each HDD |
|---|
| 接口 | 1 HDMI, 1 VGA eSATA NA Resolution HDMI/VGA: 3840 x 2160, 1920 × 1080 , 1280 × 1024, 1280 × Auxiliary Interface 720 , 1024 × 768 |
|---|
| 解碼能力 | 2-ch@8MP(30fps), 8-ch@1080P(30fps) USB 2 USB Ports (1 Rear USB 3.0 , 1 Front USB 2.0 ) |
|---|
| Multi-screen Display | 1/4/8/9/16 RS232 1 Port, for PC Communication and Keyboard |
|---|
| Recording | RS485 NA 200Mbps (80Mbps when AI function enabled, based on Bandwidth Dahua private protocol) |
|---|
| Compression | Smart H.265+/H.265/Smart H.264+/H.264/MJPEG 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 Resolution etc. Manual, Schedule (Continuous, MD(Motion Detection) , Record Mode Alarm, IVS) 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post- Record Interval record: 10 ~ 300 sec www.dahuasecurity.com |
|---|
| Electrical | Dimensions (mm) |
|---|
| 供電 | Single, AC100-240V, 3.5A NVR: <6.1W (Without HDD) Power Consumption PoE: Max 25.5W for single port 130W total rated power Environmental |
|---|
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
|---|

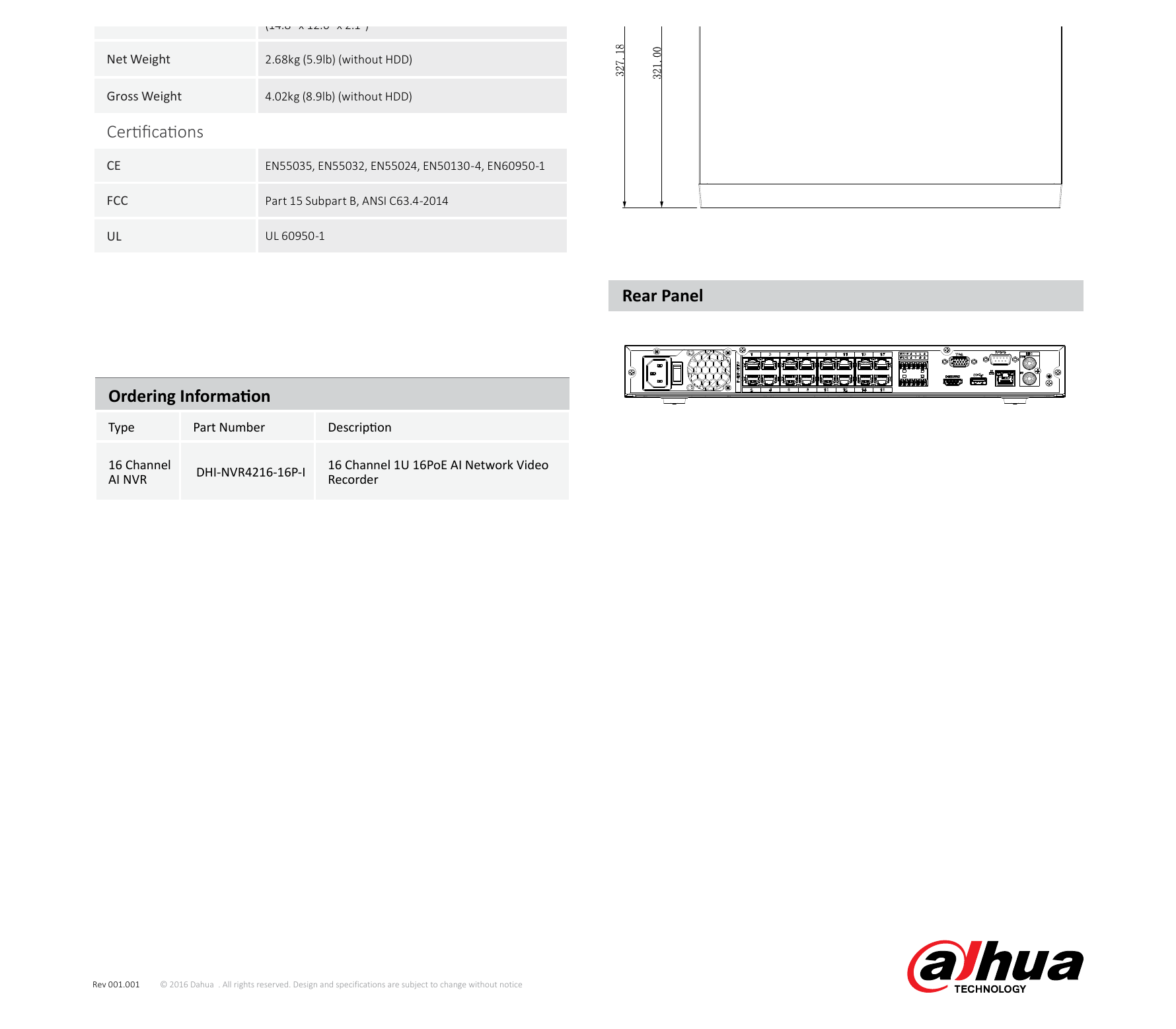

| 儲存環境 | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH Construction 1U, 375mm x 321mm x 53.8mm ; Dimensions (14.8" x 12.6" x 2.1") |
|---|
| 淨重 | 2.68kg (5.9lb) (without HDD) |
|---|
| 毛重 | 4.02kg (8.9lb) (without HDD) Certifications |
|---|
| CE | EN55035, EN55032, EN55024, EN50130-4, EN60950-1 |
|---|
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
|---|
| UL | UL 60950-1 Rear Panel Ordering Information |
|---|
| 類型 | Part Number Description 16 Channel 16 Channel 1U 16PoE AI Network Video DHI-NVR4216-16P-I |
|---|
| AI NVR | Recorder |
|---|
| Rev 001.001 | © 2016 Dahua . All rights reserved. Design and specifications are subject to change without notice www.dahuasecurity.com |
|---|
