| System | Arecont Vision, AXIS, Bosch, Brickcom, Canon, |
|---|
| Third-party Support | CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, |
|---|
| Main Processor | Dual-core embedded processor Samsung, Sanyo, Sony, Videotec, and more |
|---|
| 操作系統 | Embedded LINUX Network |
|---|
| Audio and Video | Interface 1 RJ-45 port (10/100Mbps) |
|---|
| IP Camera Input | 4 Channel Ethernet Port 1 Independent 100Mbps Ethernet Port |
|---|
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA |
|---|
| PoE | 4 ports (IEEE802.3at/af) HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, |
|---|
| Display | Network Function DHCP, DNS, IP Filter, DDNS, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P |
|---|
| 接口 | 1 HDMI, 1 VGA |
|---|
| Optical Fiber Interface | N/A HDMI: 3840 ×2160,1920×1080, 1280×1024, 1280×720, 1024×768 Max. User Access 128 users Resolution VGA: 1920×1080, 1280×1024, 1280×720, 1024×768 Smart Phone iPhone, iPad, Android |
|---|
| Decoding Capacity | 1ch@8MP 30fps, 4ch@1080P 30fps Interoperability ONVIF ,SDK, CGI Conformant |
|---|
| Multi-screen Display | 1/4 Storage Camera title, Time, Camera lock, Motion detection, Internal HDD 1 SATA III Port, up to 6TB capacity for each HDD OSD Recording |
|---|
| HDD Mode | Single Recording |
|---|
| eSATA | N/A |
|---|
| Compression | H.265+/H.264+ |
|---|
| 解像度 | 8MP/6MP/5MP/4MP/3MP/1080P/ 720P/ D1&etc. |
|---|
| USB | 2 ports (1 Rear USB2.0, 1 Front USB2.0) |
|---|
| Record Rate | 80Mbps |
|---|
| RS232 | N/A |
|---|
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
|---|
| RS485 | N/A |
|---|
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Stop Electrical 1~120 min (default: 60 min), Pre-record: 1~30 sec, Record Interval |
|---|
| Post-record: 10~300 sec | Power Supply Single, DC48V/1.25A |
|---|
| Video Detection and Alarm | NVR: <6W (without HDD) Recording, PTZ, Tour, Video Push, Snapshot, and Power Consumption |
|---|
| Trigger Events | PoE: Max 25.5w for single port, 50w in total Screen Tips Motion Detection, MD Zones: 396 (22 × 18), Video Detection |
|---|
| and Tampering | Environmental |
|---|
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
|---|
| 警報輸入 | N/A |
|---|
| 儲存環境 | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
|---|
| Relay Output | N/A Construction |
|---|
| Playback and Backup | Compact 1U, 260mm×229.3mm×47.6mm Dimensions(W×D×H) (10.2" x 9.03" x 1.9") |
|---|
| Sync Playback | 1/4 |
|---|
| 淨重 | 0.86kg (1.89 lb) (without HDD) Time /Date, MD and Exact Search |
|---|
| Search Mode | (accurate to second) Gross Weight 1.87kg(4.12 lb)(without HDD) Play, Pause, Stop, Rewind, Fast play, Slow Play, Next Certifications |
|---|
| Playback Function | File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom |
|---|
| CE | EN55032, EN55024, EN50130-4, EN60950-1 |
|---|
| Backup Mode | USB Device/Network FCC Part 15 Subpart B, ANSI C63.4-2014 |
|---|
| Ordering Information | Rear Panel |
|---|
| 類型 | Part Number Description 4 Channel Compact 1U H.265 4 Channel NVR NVR1B04HS-4P 4PoE Network Video Recorder |
|---|

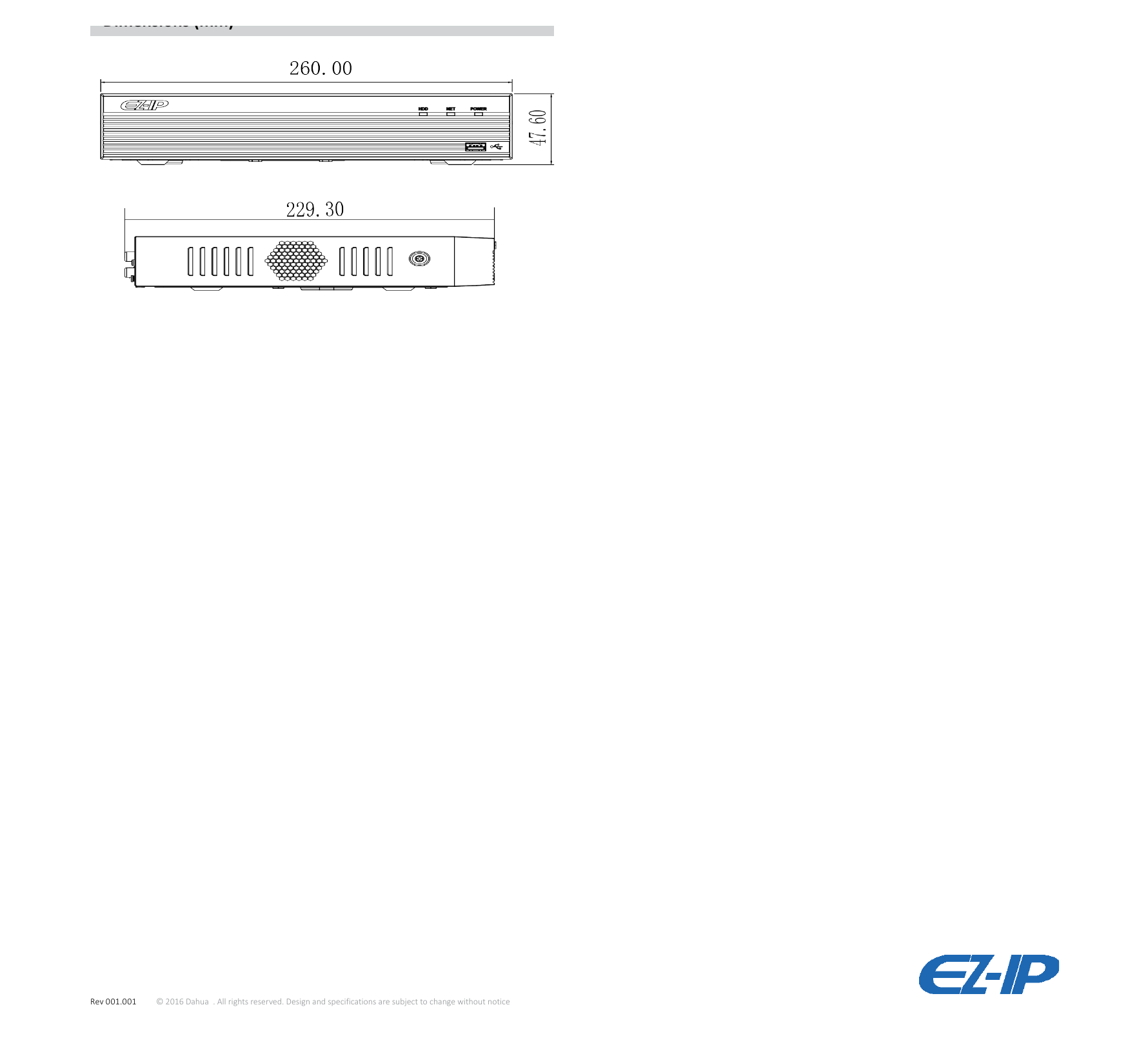

| Accessories | N/A N/A Dimensions (mm) |
|---|
| Rev 001.001 | © 2016 Dahua . All rights reserved. Design and specifications are subject to change without notice |
|---|
