| Series Overview | · Supports remote configuration and management of IPC, such as set ting parameters, getting information, and upgrading IPC of the same |
|---|
| Functions | Smart Codec With advanced scene-adaptive rate control algorithm, Dahua smart codec technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission. DMSS The DMSS app is available on the iOS App Store and Google Play. It makes surveillance easy and simple, allowing you to remotely access back-end devices, view li |
|---|
| Technical Specification | 1. Play/pause/stop/slow/quick/backward/by frame |
|---|
| Playback Function | 2. Full screen, backup (video clip/file), partial zoom in, |
|---|
| System | and audio on/off |
|---|
| Main Processor | Industrial-grade embedded processor Storage |
|---|
| OS | Embedded Linux |
|---|
| Disk Group | Yes |
|---|
| Operation Interface | Web/operating in local GUI Alarm |
|---|
| Perimeter Protection by Camera | Motion detection, privacy masking, video loss, scene General Alarm changing, PIR alarm, IPC external alarm |
|---|
| Performance | 8 channels Camera disconnection, storage error, disk full, IP conflict, Anomaly Alarm |
|---|
| AI Search | Search for pictures by channel, time and event type MAC conflict, login locked, and cybersecurity exception Face detection, perimeter protection (intrusion and |
|---|
| Face Detection by Camera | Intelligent Alarm tripwire), IVS, people counting, heat map, and SMD alarms |
|---|
| Face Attributes | email mask, and beard External Port |
|---|
| 音訊輸入 | 1 × RCA input SMD Plus by Camera |
|---|
| HDD | maximum HDD capacity varies with environment temperature |
|---|
| USB | 2 (2 × back USB2.0) |
|---|
| Access Channel | 8 |
|---|
| HDMI | 1 (supports up to 4K resolution output) |
|---|
| Network Bandwidth | Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps |
|---|
| VGA | 1 |
|---|
| 解像度 | 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1 |
|---|
| Network | 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port |
|---|
| 解碼能力 | 8 × 1080p@30 fps General Parameter 1 × VGA output, 1 × HDMI output, supports Video Output simultaneous video sources output for VGA and HDMI Power Supply 12 V DC, 2 A |
|---|
| Multi-screen Display | 1, 4, 8, 9 views Power Consumption < 10 W (HDD not included, idling) |
|---|
| Third-party Camera | Net Weight 0.45 kg (0.99 lb) ONVIF; RTSP Access |
|---|
| 毛重 | 1.07 kg (2.36 lb) Compression 204.6 mm × 206.4 mm × 48.1 mm (8.06" × 8.12" × 1.90") Product Dimensions |
|---|
| Video | Smart H.265/H.265/Smart H.264/H.264/MJPEG (W × L × H) 96 mm × 364 mm × 261 mm (3.78" × 14.33" × 10.28") |
|---|
| Audio | PCM/G711A/G711U/G726/AAC Package Dimensions (W × L × H) |
|---|
| Storage Humidity | 30%~85% |
|---|
| Mobile Phone Access | Android; iOS |
|---|
| Operating Altitude | 3000 m (9842.52 ft) |
|---|
| Interoperability | ONVIF(profile T/S/G); CGI; SDK |
|---|
| 安裝 | Desktop mounted |
|---|
| Browser | Chrome; IE9 or later; firefox CE: EN62368-1; EN55032,EN55024, EN55035, EN61000- |
|---|
| Record Playback | Certifications 3-2, EN61000-3-3 EN50130-4 FCC: Part 15 Subpart B |
|---|
| Multi-channel Playback | Up to 8 channels for playback Manual record; alarm recording; SMD recording; smart Record Mode recording |
|---|
| Storage | Local HDD; network |
|---|
| Backup | USB storage device www.dahuasecurity.com Ordering Information |
|---|
| 類型 | Model Description |
|---|

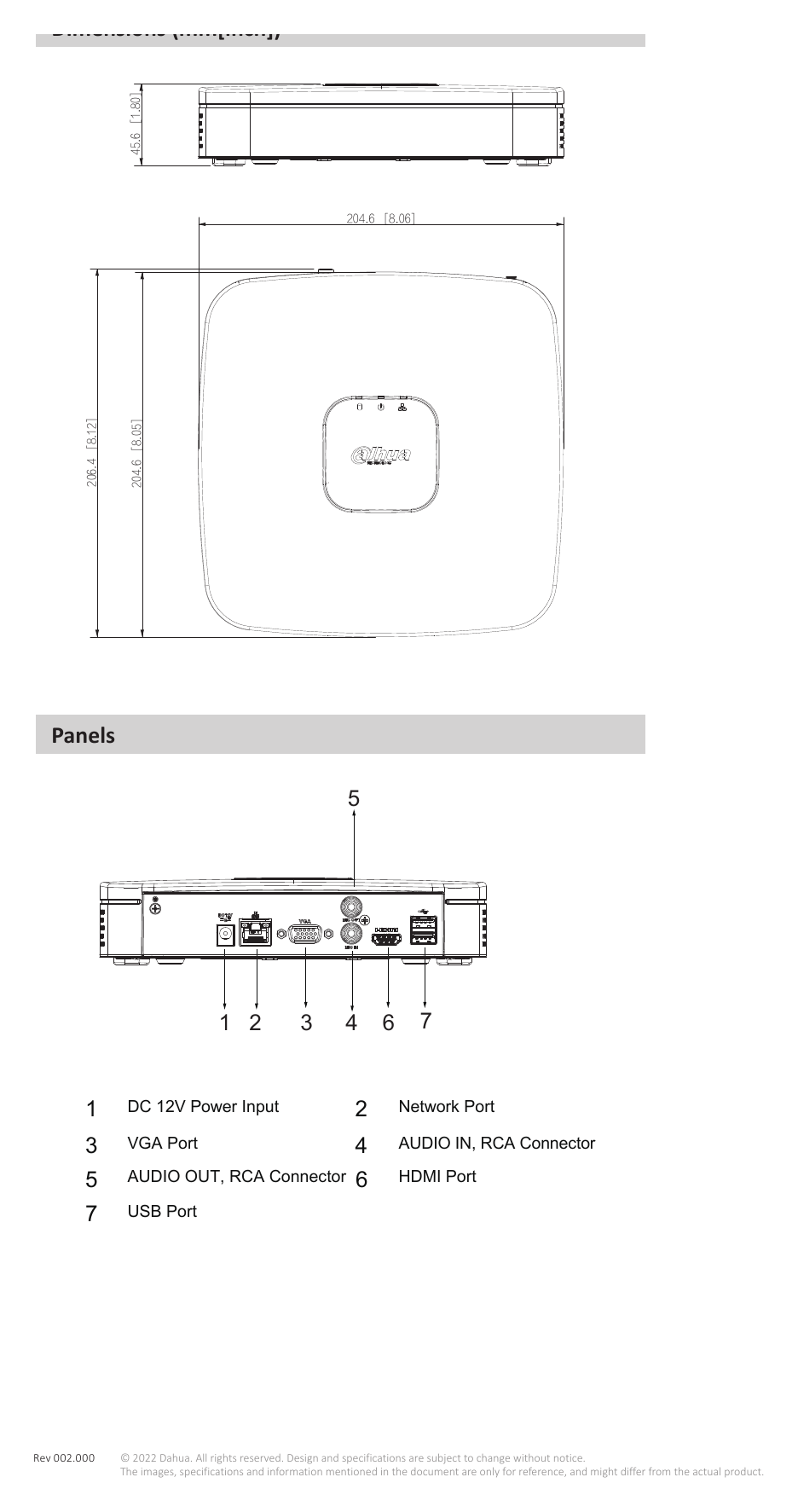

| DHI-NVR4108- | 8 Channel Smart 1U 1HDD Network 8 Channel NVR 4KS2/L Video Recorder Dimensions (mm[inch]) <> <> <> <> Panels 1 2 3 4 6 7 1 DC 12V Power Input 2 Network Port 3 VGA Port 4 AUDIO IN, RCA Connector 5 AUDIO OUT, RCA Connector 6 HDMI Port 7 USB Port |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
