DAHUA XVR5104HS-X CCTV攝影機安裝・保養

Name: DAHUA XVR5104HS-X DH-XVR5104HS-X
Brand: dahua
SKU: XVR5104HS-X

產品簡介

dahua XVR5104HS-X 為DH-XVR5104HS-X，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 XVR5104HS-X 香港價格連安裝報價。

System：Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP,
Main Processor：Embedded Processor Motion Detection, MD Zones: 396 (22 × 18)
Embedded LINUX：Tampering and Diagnosis Operating System
警報輸入：N/A
Relay Output：N/A

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

System	Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Main Processor	Embedded Processor Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Video Detection
Embedded LINUX	Tampering and Diagnosis Operating System
警報輸入	N/A
Relay Output	N/A
Analog Camera Input	4 Channel, BNC Playback and Backup
HDCVI Camera	5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
Playback	1/4
AHD Camera	5MP, 4MP, 1080P@25/30, 720P@25/30fps Time /Date, Alarm, MD and Exact Search (accurate to Search Mode
TVI Camera	5MP, 4MP, 1080P@25/30, 720P@25/30fps second)
CVBS Camera	PAL/NTSC Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File,
Playback Function	Previous File, Next Camera, Previous Camera, Full Screen,
IP Camera Input	4+2 Channel, each channel up to 6MP Repeat, Shuffle, Backup Selection, Digital Zoom
Audio In/Out	1/1, RCA Backup Mode USB Device/Network
Two-way Talk	Reuse audio in/out, RCA Storage Recording
Internal HDD	1 SATA Port, up to 10TB capacity
Compression	H.265+/H.265/H.264+/H.264
eSATA	N/A
解像度	5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF Main stream:the 1st channel 5M-N(1~10fps), other channels 4M-N/1080P(1~15fps); 1080N/720P/960H/ USB 2 USB 2.0 Record Rate D1/CIF (1~25/30fps)
RS232	N/A Sub stream: D1/CIF(1~15fps)
RS485	1 Port, for PTZ Control
Bit Rate	32Kbps ~ 6144Kbps Per Channel Electrical Manual, Schedule (General, Continuous), MD (Video detection: Record Mode Motion Detection, Video Loss, Tampering), Alarm, Stop Power Supply DC12V/2A 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post- Power Consumption
Record Interval	<10W
record: 10 ~ 300 sec	(without HDD)
音訊壓縮	AAC(only for the 1st channel), G.711A, G.711U, PCM Construction
Audio Sample Rate	8KHz, 16 bit Per Channel Dimensions Compact 1U, 260×236×48mm(10.2"×9.3"×1.9")
音訊碼率	64Kbps Per Channel Device with PFH101 483mmx281mmx56mm (19.0"x11.1"x2.2") Rack Mount Tray Net Weight
接口	1 HDMI ,1 VGA 0.9kg (2.0 lb) (without HDD)
When IP extension mode not enabled: 1/4	Installation Desktop installation Multi-screen Display When IP extension mode enabled: 1/4/6 Environmental Camera title, Time, Video loss, Camera lock, Motion detection, OSD
Recording	Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH
Network	Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Max. User Access	128 users Certifications FCC: Part 15 Subpart B
Smart Phone	iPhone, iPad, Android
Interoperability	ONVIF 16.12, CGI Conformant CE: CE-LVD: EN 60950-1/IEC 60950-1
Certifications	CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1 www.dahuasecurity.com
Ordering Information	Rear Panel
類型	Part Number Description DH-XVR5104HS-X 4 Channel Penta-brid 1080P Compact 4 Channel XVR DH-XVR5104HS-X 1U Digital Video Recorder 1 2 9 Accessory,
DH-PFH101	Rack Mount Tray 3 4 56 7 8 Dimensions (mm) 1 VIDEO IN 6 RS485 Interface 2 AUDIO IN, RCA Connector 7 USB Interface 3 AUDIO OUT, RCA Connector 8 DC 12V Power Input 4 HDMI Interface 9 VGA Interface 5 Network Interface Installation on Rack Mount Tray Standard Cabinet 1U Device Rack Mount Tray
Rev 001.001	© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com

* 規格以原廠最新 Datasheet 為準。

下載完整PDF規格書 →

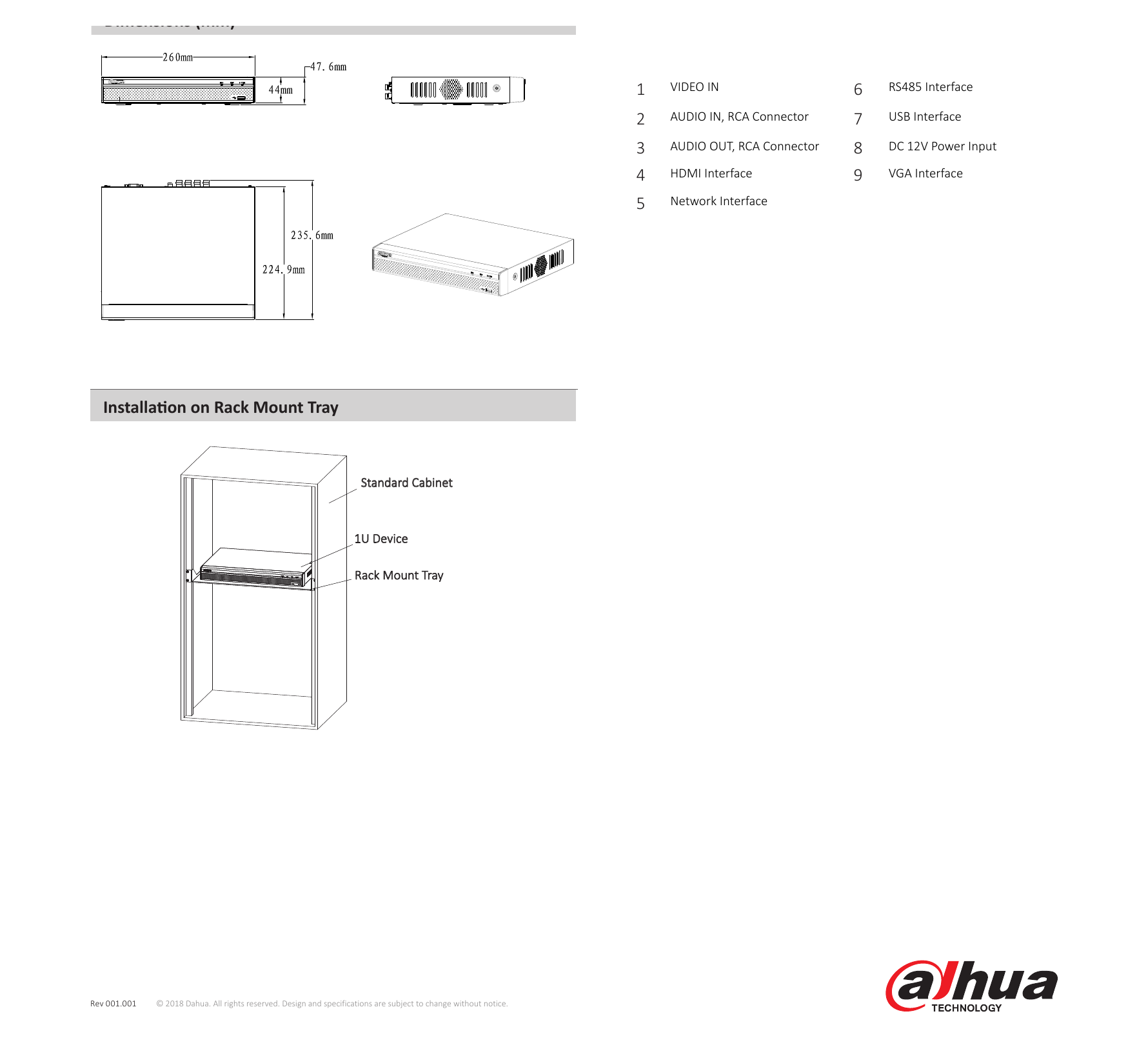

外形尺寸

詳見圖示｜Unit: mm

CCTV 監控安裝工程服務

HKEZIT 專營裝CAM、裝CCTV、裝監控工程，XVR5104HS-X 由我們供貨、安裝、調試到使用教學一站式完成。無論裝CAM、裝CCTV或裝監控，均由自家工程團隊上門施工，品質有保證。

裝CAM 裝CCTV 裝監控

CCTV 監控適合邊類專業客戶

XVR5104HS-X dahua DH-XVR5104HS-X亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。

私人銀行／財富管理

貴賓客戶室高保安等級佈點，配合監管合規存證，出入口身份記錄嚴謹。

WhatsApp 查詢 →

牙科診所

診症室私隱合規佈點、X光及貴重牙科儀器防盜，配合預約系統減少候診糾紛。

WhatsApp 查詢 →

獸醫診所

手術室同住院動物籠舍監控，主人可遠端查看住院寵物，醒晚更觀察狀態。

WhatsApp 查詢 →

保險經紀行

客戶會面室簽單過程存證，減少銷售爭議，配合保監局合規要求。

WhatsApp 查詢 →

兒科診所

候診區同診症室監控兼顧家長安心同私隱，貴重醫療儀器防盜。

WhatsApp 查詢 →

測量師行／則師樓

現場勘察資料同客戶物業圖則屬機密，辦公室網絡同門禁保安係基本要求。

WhatsApp 查詢 →

常見問題

XVR5104HS-X 香港哪裡有代理？

HKEZIT 提供原廠行貨連保養，XVR5104HS-X 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。

此型號如何供電及駁線？

支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。

錄影可以儲存多久、如何遠程監看？

儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 gDMSS/DMSS App 可隨時遠程實時監看及回放，無需固定 IP。

XVR5104HS-X 定 IPC-HDBW3541R-ZAS 邊個好？

兩者主要規格分別：警報輸入方面，XVR5104HS-X 係 N/A，IPC-HDBW3541R-ZAS 係 1 channel in: 5mA 3V–5V DC。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 IPC-HDBW3541R-ZAS 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
