Hikvision DS-2CD6D54G1-IZS 為Quad-Directional Varifocal PanoVu Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2CD6D54G1-IZS 香港價格連安裝報價。
| DORI 偵測距離 | Detect Observe Recognize Identify |
|---|---|
| Distance (Wide) | 60 m 23 m 12 m 6m |
| Distance (Tele) | 120 m 47 m 24 m 12 m |
| 影像感測器 | 1/2.7" Progressive Scan CMOS Color: 0.0125 Lux @(F1.9, AGC ON) B/W: 0.0025 Lux @(F1.9, AGC ON), 0 Lux with IR |
| 快門速度 | 1 s to 1/100,000 s |
| 慢快門 | Yes |
| Day &Night | IR cut filter |
| 角度調節 | Pan: -60° to 60°, tilt: 10° to 90°, rotate: 0° to 350° |
| WDR | 120 dB |
| 光圈 | F1.9 |
| 對焦 | Manual, semi-auto |
| 視場角 FOV | Horizontal FOV 100° to 49°, vertical FOV 72° to 36.4°, diagonal FOV 134.4° to 61.4° |
| 鏡頭接口 | Ø 14 |
| 鏡頭類型 | Varifocal lens, 2.8 to 8 mm |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| 最大解像度 | 2560 × 1920 |
| Video Stream | 3 defined streams 50 Hz: 25 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 24 fps (704 × 480, 640 × 480) 50 Hz: 6 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 8 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Main stream: H.265+/H.265/H.264+/H.264 |
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| H.264 類型 | Baseline Profile/Main Profile/High Profile |
| H.265 類型 | Main Profile |
| 視頻碼率 | 32 Kbps to 16 Mbps |
| SVC | H.264 encoding |
| H.264+ | Main stream support |
| H.265+ | Main stream support |
| 音訊壓縮 | With -S model: G.711/G.722.1/G.726/MP2L2/PCM With -S model: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM) |
| 環境噪音過濾 | With -S model: Yes |
| 音訊取樣率 | With -S model: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable |
| 智能事件 | Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Scene change detection, audio exception detection(-S), defocus detection Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Region of Interest | 4 fixed regions for each stream Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture |
| 影像增強 | BLC, HLC, 3D DNR, Defog, EIS Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Target Cropping | Yes |
| 日夜模式 | Day/Night/Auto/Schedule/Triggered by Alarm In(-S) |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format |
| 信噪比 SNR | ≥52 dB |
| 網絡儲存 | microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome Password protection, complicated password, HTTPS encryption, 802.1X authentication |
| 安全 | (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/ HTTPS, WSSE and digest authentication for Open Network Video Interface |
| 同時取流 | Up to 20 channels |
| 用戶管理 | Up to 32 users. 3 user levels: administrator, operator and user |
| 客戶端 | iVMS-4200, Hik-Connect, Hik-Central |
| 瀏覽器 | IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11 Without -S model: 1 RJ45 10M/100M/1000M Ethernet port; built-in RS-232 |
| 通訊接口 | With -S model: 1 RJ45 10M/100M/1000M Ethernet port; built-in RS-232 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self- adaptive) |
| Audio | With -S model: 1 input (line in), 1 output (line out), 3.5 mm three-contact |
| 警報 | With -S model: 2 inputs, 2 outputs (max. 24 VDC, 1 A) |
| 機身儲存 | Built-in microSD/SDHC/SDXC slot, up to 128 GB 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, |
| EMC | EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015 UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015 |
| Chemistry | 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006 |
| 防護等級 | IK10 (IEC 62262:2002), IP67 (IEC 60529-2013) |
| 韌體版本 | V5.5.32 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, |
| 介面語言 | French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| 一般功能 | Anti- flicker, 3 streams, heartbeat, mirror, privacy masks |
| 重設 | Reset via reset button on camera body, web browser and client software Startup and Operating -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) Conditions |
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) 12 VDC ± 20%, reverse polarity protection; three-core terminal block |
| 供電 | 24 VAC ± 20%; PoE (802.3at, class 4) 12 VDC, 1.8 A, 22 W Power Consumption and 24 VAC, 1.4 A, 22 W Current PoE (802.3at, 42.5 to 57 VDC), 0.44 to 0.33 A, 19 W, class 4 |
| 材質 | Bubble & IR cover: plastic, camera: metal Camera: Ø250 × 114.9 mm (9.8″ × 4.5″) Dimensions With package: 336 × 261 × 293 mm (13.2″ × 10.3″ × 11.5″) Camera: 2.2 kg (4.9 lb.) Weight With package: 3.9 kg (8.6 lb.) |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

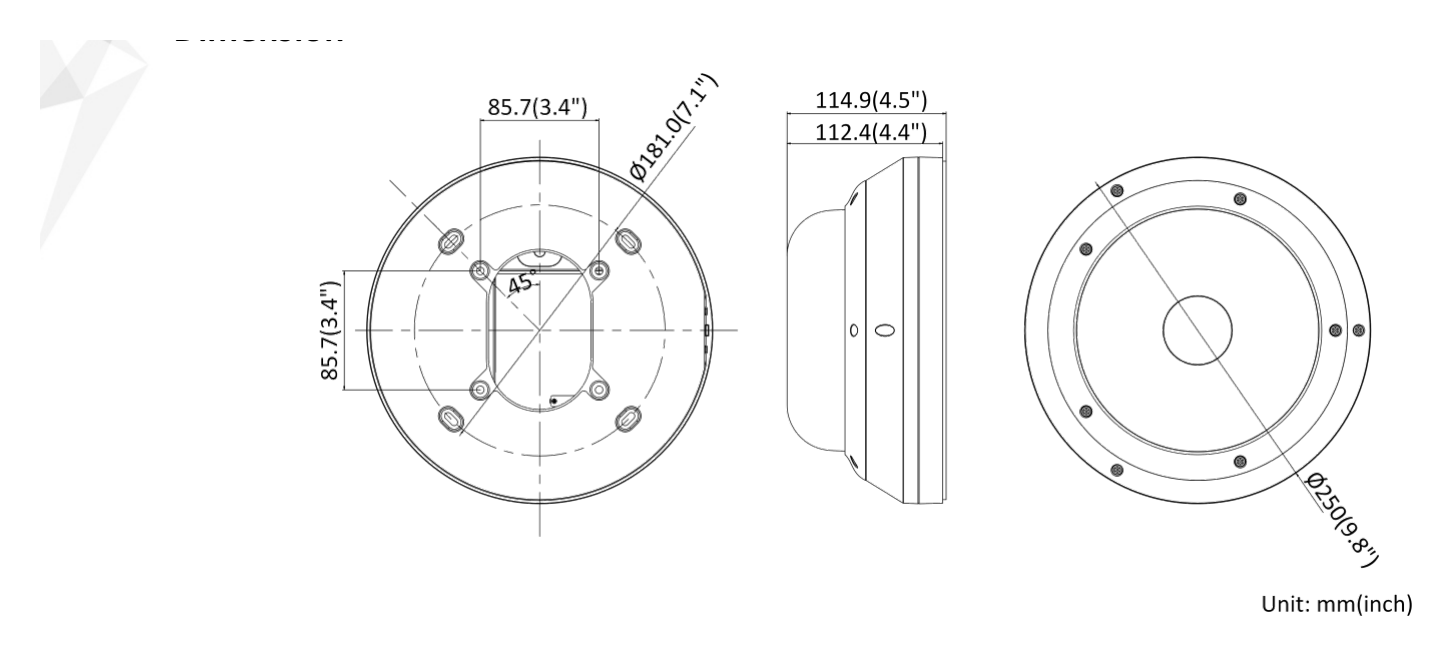

詳見圖示｜Unit: mm
DS-2CD6D54G1-IZS Hikvision Quad-Directional Varifocal PanoVu Camera亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，DS-2CD6D54G1-IZS 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：對焦方面，DS-2CD6D54G1-IZS 係 Manual, semi-auto，DS-2XE6885G0-ILZHS 係 Auto；鏡頭接口方面，DS-2CD6D54G1-IZS 係 Ø 14，DS-2XE6885G0-ILZHS 係 Integrated；最大解像度方面，DS-2CD6D54G1-IZS 係 2560 × 1920，DS-2XE6885G0-ILZHS 係 3840 × 2160。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 DS-2XE6885G0-ILZHS 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 DS-2CD6D54G1-IZS 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
