HIKVISION DS-2CD72325G0 CCTV攝影機安裝・保養

Name: HIKVISION DS-2CD72325G0 32 MP Box Network Camera
Brand: Hikvision
SKU: DS-2CD72325G0

產品簡介

Hikvision DS-2CD72325G0 為32 MP Box Network Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2CD72325G0 香港價格連安裝報價。

影像感測器：4/3ʺ Progressive Scan CMOS
最低照度：Color: 0.02 Lux @ (F1.2, AGC ON)
最大解像度：7680 × 4320
快門速度：1/25 s to 1/100,000 s
日夜切換：IR cut filter. Blue glass module to reduce ghost phenomenon.

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

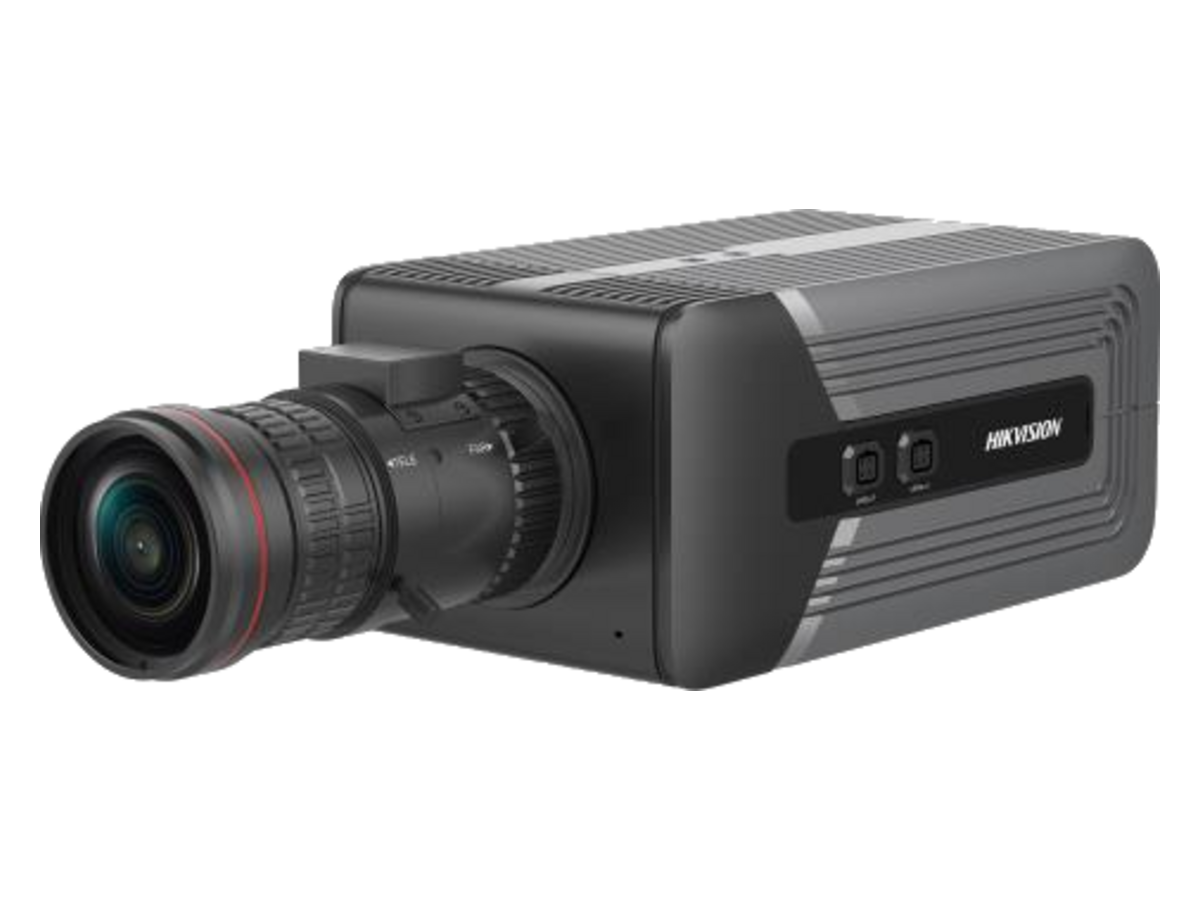

DS-2CD72325G0 Hikvision 32 MP Box Network Camera 產品圖片

詳細規格

影像感測器	4/3ʺ Progressive Scan CMOS
最低照度	Color: 0.02 Lux @ (F1.2, AGC ON)
最大解像度	7680 × 4320
快門速度	1/25 s to 1/100,000 s
日夜切換	IR cut filter. Blue glass module to reduce ghost phenomenon. Camera mount: M42 (M42 to C-mount adapter and M42 to F-mount adapter are included in the package) 1 encoder track mode: H.264/H.265: 50Hz: 25fps (7680 × 4320, 6048 × 4008, 5472 × 3648, 4944 × 3280, 4608 × 2592, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 30fps (7680 × 4320, 6048 × 4008, 5472 × 3648, 4944 × 3280,
子碼流	50Hz: 25fps (704 × 480, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480) 3 encoder tracks mode: No 1 encoder track mode: H.264/H.265:
第三碼流	50Hz: 25fps (1920 × 1080, 1280 × 720, 704 ×480, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 ×480, 640 × 480) 3 encoder tracks mode: No 1 encoder track mode: H.264/H.265/ MJPEG:
Fourth Stream	50Hz: 25fps (1920 × 1080, 1280 × 720, 704 ×480, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 ×480, 640 × 480) 3 encoder tracks mode: No 1 encoder track mode: H.264/H.265/ MJPEG:
Fifth Stream	50Hz: 25fps (1920 × 1080, 1280 × 720, 704 ×480, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 ×480, 640 × 480) 3 encoder tracks mode: no Sub-stream /fourth stream/fifth stream: H.265/H.264/MJPEG
視頻壓縮	H.264+/H.265+: 1 encoder track mode: each stream supports 3 encoder tracks mode: No
視頻碼率	32 Kbps to 16 Mbps
H.264 類型	Baseline Profile/Main Profile/High Profile
H.265 類型	Baseline Profile
SVC 分級編碼	H.264 and H.265 encoding
感興趣區域 ROI	4 fixed regions for each stream
Target Cropping	Yes
環境噪音過濾	Yes
音訊取樣率	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
音訊壓縮	G.711/G.722.1/G.726/MP2L2/PCM 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-48Kbps (PCM)
Audio Type	mono
同時取流	Up to 20 channels
API	Open Network Video Interface (PROFILE S, PROFILE G), ISAPI, SDK, Ehome TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
用戶管理	Up to 32 users. 3 user levels: administrator, operator and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
安全	authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2 microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR
網絡儲存	Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
客戶端	iVMS-4200 Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+
寬動態 WDR	120 dB
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
日夜模式	Day/Night/Auto/Schedule/Triggered by alarm in
影像增強	BLC, HLC, 3D DNR, Defog, EIS Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Satellite Positioning Detection	GPS
警報	3 inputs, 3 outputs (max. 24 VDC/VAC, 1 A max.) 4.7 KΩ, interface type: non-equilibrium;
Audio	1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium; 1 built-in speaker, 1 built-in microphone, mono sound
Video Output	1Vp-p composite output (75 Ω/CVBS), only for adjustment
RS-485	1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
重設鍵	Yes
網絡接口	1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
USB	USB 2.0, USB 3.0 1 FC fiber optical interface, SFP module, single mode, 20 km transmission distance, 1310 nm (TX) and 1550 nm (RX), 1.25 Gbps transmission rate Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance
智能事件	Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Scene change detection, audio exception detection, defocus detection Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) 12 VDC ± 20%, 1.74 A, max. 20.8
儲存環境	-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
材質	Metal
尺寸	177.3 mm × 74 mm × 94.3 mm (6.98" × 2.91" × 3.71")
包裝尺寸	260 mm × 230 mm × 135 mm (10.24ʺ × 9.10ʺ × 5.31ʺ)
重量	Approx. 1.1 kg (2.43 lb.)
連包裝重量	Approx. 1.7 kg (3.75 lb.) FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4);
EMC	RCM (AS/NZS CISPR 32:2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015); UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);
Safety	BIS (IS 13252 (Part 1): 2010+A1:2013+A2:2015); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); LOA (IEC/EN 60950-1); CE-ROHS (2011/65/EU);
Environment	REACH (Regulation (EC) No 1907/2006); WEEE (2012/19/EU);

* 規格以原廠最新 Datasheet 為準。

下載完整PDF規格書 →

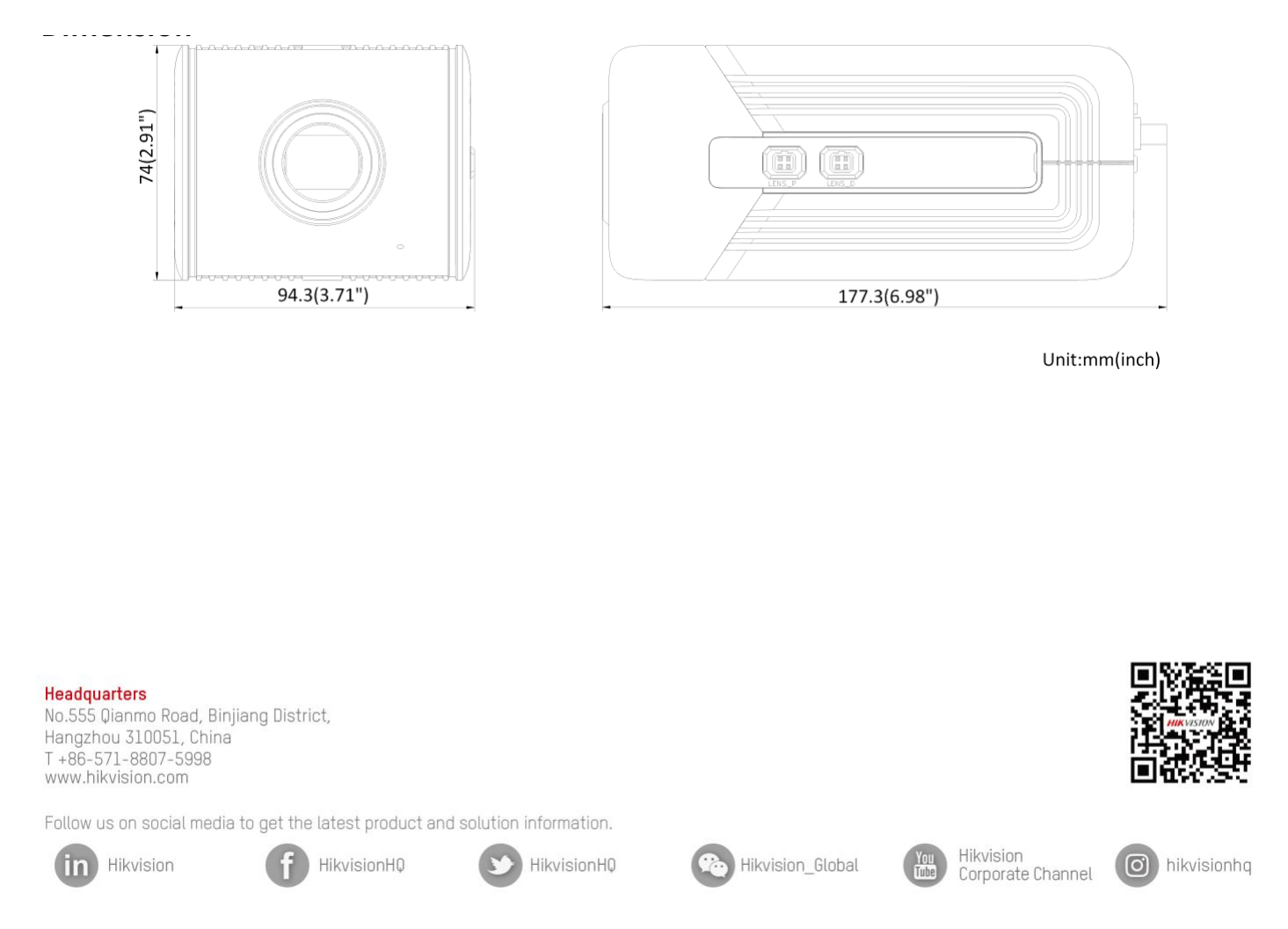

外形尺寸

177.3 mm × 74 mm × 94.3 mm (6.98" × 2.91" × 3.71")｜重量 Approx. 1.1 kg (2.43 lb.)｜Unit: mm

CCTV 監控安裝工程服務

HKEZIT 專營裝CAM、裝CCTV、裝監控工程，DS-2CD72325G0 由我們供貨、安裝、調試到使用教學一站式完成。無論裝CAM、裝CCTV或裝監控，均由自家工程團隊上門施工，品質有保證。

裝CAM 裝CCTV 裝監控

CCTV 監控適合邊類專業客戶

DS-2CD72325G0 Hikvision 32 MP Box Network Camera亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。

牙科診所

診症室私隱合規佈點、X光及貴重牙科儀器防盜，配合預約系統減少候診糾紛。

WhatsApp 查詢 →

獸醫診所

手術室同住院動物籠舍監控，主人可遠端查看住院寵物，醒晚更觀察狀態。

WhatsApp 查詢 →

保險經紀行

客戶會面室簽單過程存證，減少銷售爭議，配合保監局合規要求。

WhatsApp 查詢 →

兒科診所

候診區同診症室監控兼顧家長安心同私隱，貴重醫療儀器防盜。

WhatsApp 查詢 →

測量師行／則師樓

現場勘察資料同客戶物業圖則屬機密，辦公室網絡同門禁保安係基本要求。

WhatsApp 查詢 →

婦產科診所

診症室及超聲波室私隱要求極高，出入口記錄配合門禁分級管理。

WhatsApp 查詢 →

常見問題

DS-2CD72325G0 香港哪裡有代理？

HKEZIT 提供原廠行貨連保養，DS-2CD72325G0 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。

此型號如何供電及駁線？

支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。

錄影可以儲存多久、如何遠程監看？

儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。

DS-2CD72325G0 定 DS-2XE6885G0-ILZHS 邊個好？

兩者主要規格分別：影像感測器方面，DS-2CD72325G0 係 4/3ʺ Progressive Scan CMOS，DS-2XE6885G0-ILZHS 係 1/2″ Progressive Scan CMOS；最大解像度方面，DS-2CD72325G0 係 7680 × 4320，DS-2XE6885G0-ILZHS 係 3840 × 2160；快門速度方面，DS-2CD72325G0 係 1/25 s to 1/100,000 s，DS-2XE6885G0-ILZHS 係 1 s to 1/100,000 s。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 DS-2XE6885G0-ILZHS 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
