| Face Picture Comparison | 4-ch face picture comparison alarm |
|---|
| Facial Detection and Analytics | Face picture comparison, human face capture, face picture search 1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265) |
|---|
| All channels ,up to | 172,800 targets/day The camera should enable AcuSearch function |
|---|
| By NVR | N/A |
|---|
| IP 視頻輸入 | 8 |
|---|
| 入口頻寬 | 80 Mbps |
|---|
| 出口頻寬 | 256 Mbps 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|---|
| VGA 輸出 | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|---|
| 視頻輸出模式 | HDMI/VGA independent output |
|---|
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
|---|
| 音訊輸出 | 1-ch, RCA (Linear, 1 KΩ) |
|---|
| 雙向語音 | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
|---|
| 解碼格式 | H.265,H.265+,H.264,H.264+,MPEG4 |
|---|
| 錄影解像度 | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|---|
| 同步回放 | 16-ch |
|---|
| Live View Window Division | 1/4/6/8/9 |
|---|
| Aux Port Window Division | 1/4/6/8/9 |
|---|
| 解碼能力 | 16-ch @ 1080p (30 fps) |
|---|
| Dual-Stream Recording | Support |
|---|
| 音訊壓縮 | G.711ulaw,G.711alaw,G.722,G.726,MP2L2 |
|---|
| 碼流類型 | Video, Video & Audio |
|---|
| 網絡接口 | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface Remote Connection Network Protocol API Compatible Browser |
|---|
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
|---|
| SATA | 2 SATA interfaces |
|---|
| 容量 | Up to 8 TB capacity for each disk |
|---|
| 警報輸入/輸出 | 4/1 |
|---|
| USB 接口 | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 GUI Language |
|---|
| 供電 | ≤ 40 W DS-7608NXI-I2/S(中性)(C),DS-7608NXI-I2/S(标配)(C):≤ 15W Consumption DS-7608NXI-I2/S(标配)(C)/阿联酋HTL:≤ 30 W (without HDD) |
|---|
| 工作溫度 | -10℃ ～＋55℃ |
|---|
| 工作濕度 | 10% to 90% |
|---|
| Chassis | 1U |
|---|

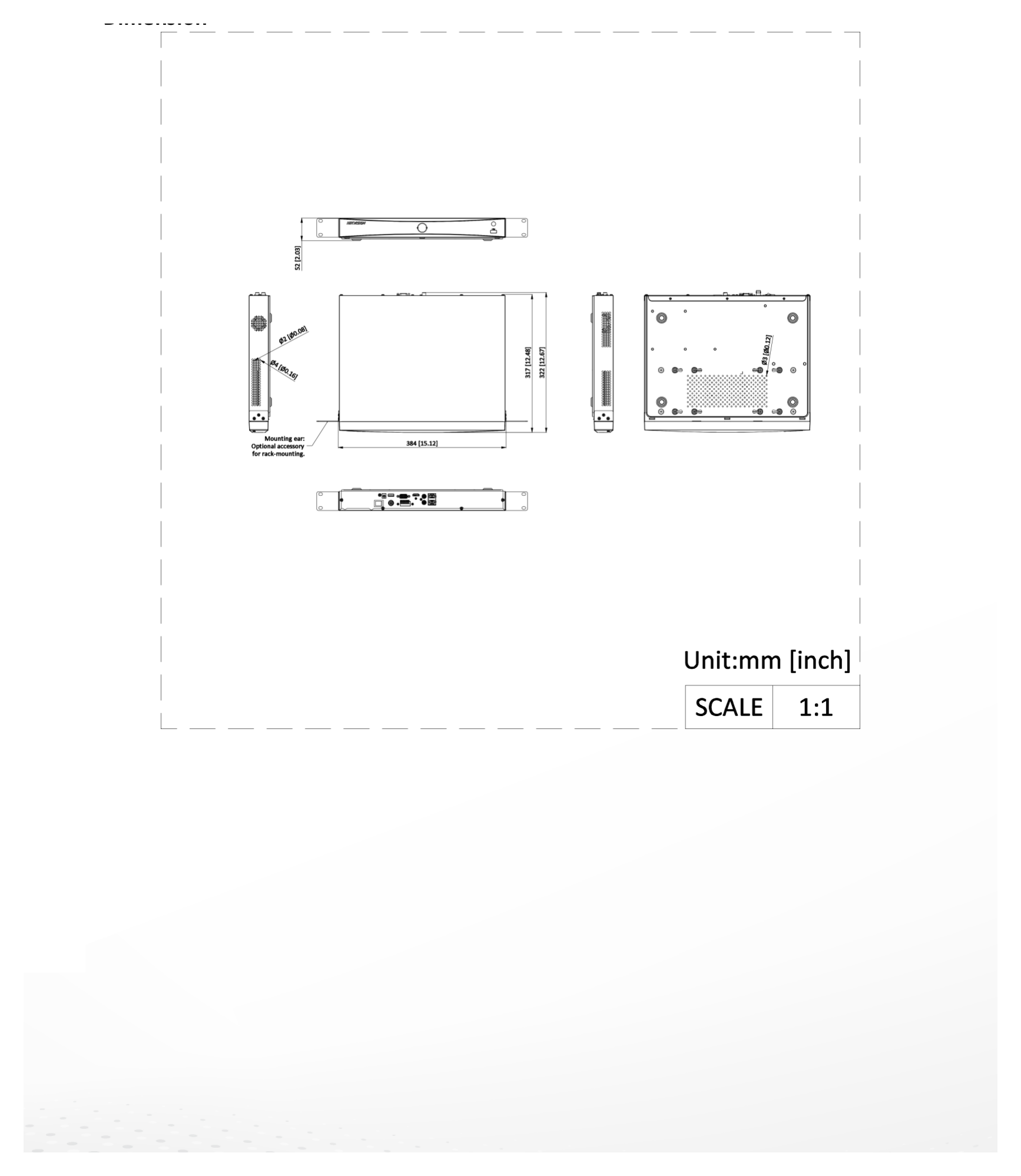

| 尺寸 | 385 × 315 ×52 mm ( 11.6"× 9.5" × 1.6") |
|---|
| 重量 | ≤ 1.6 kg (3.5 lb) Obtained Certification |
|---|
| No. | Description No. Description |
|---|
| LAN1 and LAN2 network | USB 3.0 interface and VIDEO |
|---|
| interfaces | OUT |
|---|
