| AI by NVR | Facial recognition Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection 2.0, ANPR, people counting, AcuSeek |
|---|
| Engine | 2 engines. 1 is for face picture and AcuSearch. 1 is for AcuSeek Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB) |
|---|
| Face Picture Comparison | 8-ch |
|---|
| Facial Detection and Analytics | Face picture comparison, human face capture, face picture search 4-ch human face capture (HD network camera, up to 8 MP, H.264/H.265) If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch |
|---|
| Performance | function, the NVR supports AcuSearch in all channels, capable of modeling 300,000 targets/day. If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch |
|---|
| Search Language | English |
|---|
| By Camera | All channels |
|---|
| Vehicle Attributes | Plate number, license plate color, license plate type |
|---|
| Plate Attributes | Vehicle brand, vehicle color, vehicle type |
|---|
| IP 視頻輸入 | 16 |
|---|
| 入口頻寬 | 192 Mbps |
|---|
| 出口頻寬 | 256 Mbps |
|---|
| HDMI 輸出 | 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1280 × 720/60 Hz |
|---|
| VGA 輸出 | 1920 × 1080/60Hz, 1280 × 720/60Hz |
|---|
| 視頻輸出模式 | HDMI/VGA independent output |
|---|
| CVBS Output | NA |
|---|
| 音訊輸出 | 1-ch, RCA (Linear, 1 KΩ) |
|---|
| 雙向語音 | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
|---|
| 解碼格式 | H.265, H.265+, H.264, H.264+, MPEG4 32MP/24MP/12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/D CIF/2CIF/CIF/QCIF |
|---|
| 同步回放 | 16-ch |
|---|
| Live View Window Division | 1/4/6/8/9/16 |
|---|
| Dual-Stream Recording | Support |
|---|
| Aux Port Window Division | 1/4/6/8/9/16 |
|---|
| 碼流類型 | Video, Video & Audio Decoding Capability Disable AI by NVR: 32-ch@1080p (30 fps) |
|---|
| 音訊壓縮 | G.711ulaw,G.711alaw,G.722,G.726,MP2L2 |
|---|
| 網絡接口 | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
|---|
| 接口 | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
|---|
| 供電 | ≤ 200W |
|---|
| 標準 | IEEE 802.3 af/at |
|---|
| SATA | 2 SATA interfaces |
|---|
| 容量 | Up to 20 TB capacity for each disk |
|---|
| Serial Interface | NA |
|---|
| 警報輸入/輸出 | 4/1 |
|---|
| USB 接口 | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
|---|
| 功耗 | ≤ 50W |
|---|
| 工作溫度 | -10℃ ～＋55℃ |
|---|
| 工作濕度 | 10 ％～90 ％ |
|---|
| Chassis | 1U |
|---|

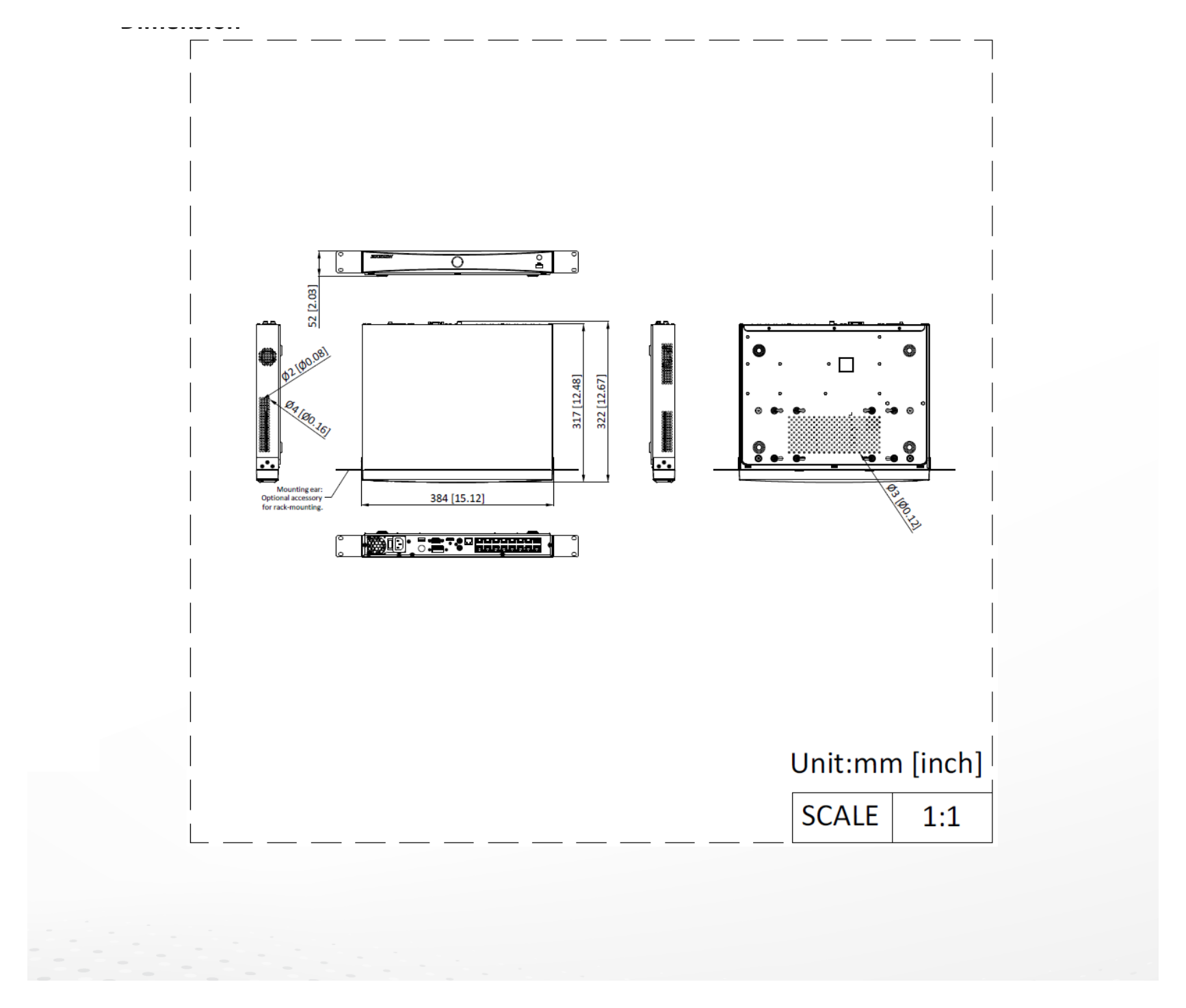

| 尺寸 | 384 × 371 × 52 mm（15.12" × 12.48" × 2.03"） |
|---|
| 重量 | ≤ 4 kg (6.6 lb) |
|---|
| Obtained Certification | CE, CB, REACH, WEEE, UKCA, RCM,IC,LOA,KC |
|---|
| CE | EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
|---|
