| | Up to 32-ch IP camera inputs |
|---|
| | H.265+ compression effectively reduces the storage space by up to 75% |
|---|
| Facial Detection and Analytics | Face picture comparison, human face capture, face picture search Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB) 1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265) |
|---|
| Face Picture Comparison | 4-ch All channels, 4 MP video analysis for human and vehicle recognition to reduce false alarm |
|---|
| By Camera | All channels 2-ch, 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm |
|---|
| IP 視頻輸入 | 32-ch |
|---|
| 入口頻寬 | 256 Mbps |
|---|
| 出口頻寬 | 160 Mbps 4K (3840×2160)/60 Hz, 4K (3840×2160)/30 Hz, 1920×1080/60 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz |
|---|
| HDMI 2 Output | 1920×1080p/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz |
|---|
| VGA 1 Output | 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
|---|
| VGA 2 Output | 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; |
|---|
| 視頻輸出模式 | HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output |
|---|
| 音訊輸出 | 2-ch, RCA (Linear, 1 KΩ) |
|---|
| 雙向語音 | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
|---|
| 解碼格式 | H.265+/H.265/H.264+/H.264 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|---|
| 同步回放 | 16-ch AI on: 1-ch@12MP (30fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p(30 fps) AI off: 2-ch@12MP (30fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p(30 fps) |
|---|
| 碼流類型 | Video, Video & Audio |
|---|
| 音訊壓縮 | G.711ulaw/G.711alaw/G.722/G.726/AAC |
|---|
| 遠程連接 | 128-ch TCP/IP, DHCP, IPv4, Hik-Connect, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
|---|
| 網絡接口 | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
|---|
| Serial Interface | 1 RS-232, 1 RS-485 |
|---|
| SATA | 8 SATA interfaces |
|---|
| eSATA | 1 eSATA interface |
|---|
| 容量 | Up to 10 TB capacity for each disk |
|---|
| 警報輸入/輸出 | 16/9, the 9th alarm supports control 12V. |
|---|
| USB 接口 | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
|---|
| 電源輸出 | 12V DC |
|---|
| 供電 | 100 to 240 VAC, 50 to 60 Hz |
|---|
| 功耗 | ≤ 30 W (without HDD) |
|---|
| 工作溫度 | -10 °C to 55 °C (14 °F to 131 °F) |
|---|
| 工作濕度 | 10 to 90 % |
|---|

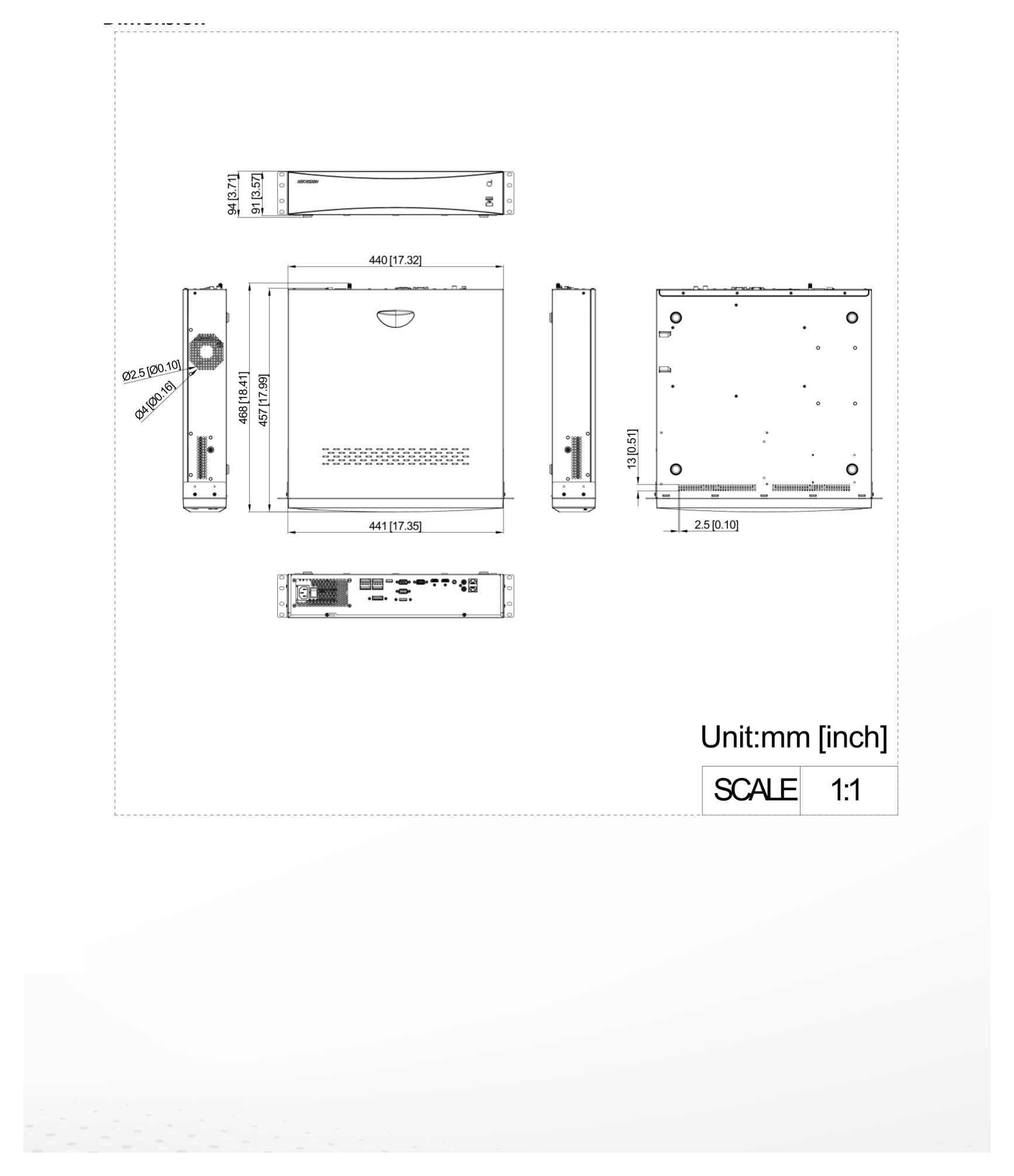

| 尺寸 | 441×457×91 mm (17.4"×18.0"×3.6") |
|---|
| 重量 | ≤ 8 kg (17.6 lb) |
|---|
| Obtained Certification | CE, FCC, CB, IC, RCM, KCC, ICE-003 |
|---|
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
|---|
| CE | EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
|---|
| No. | Description No. Description |
|---|
