HIKVISION DS-96128NI-M16 安裝、保養、維修

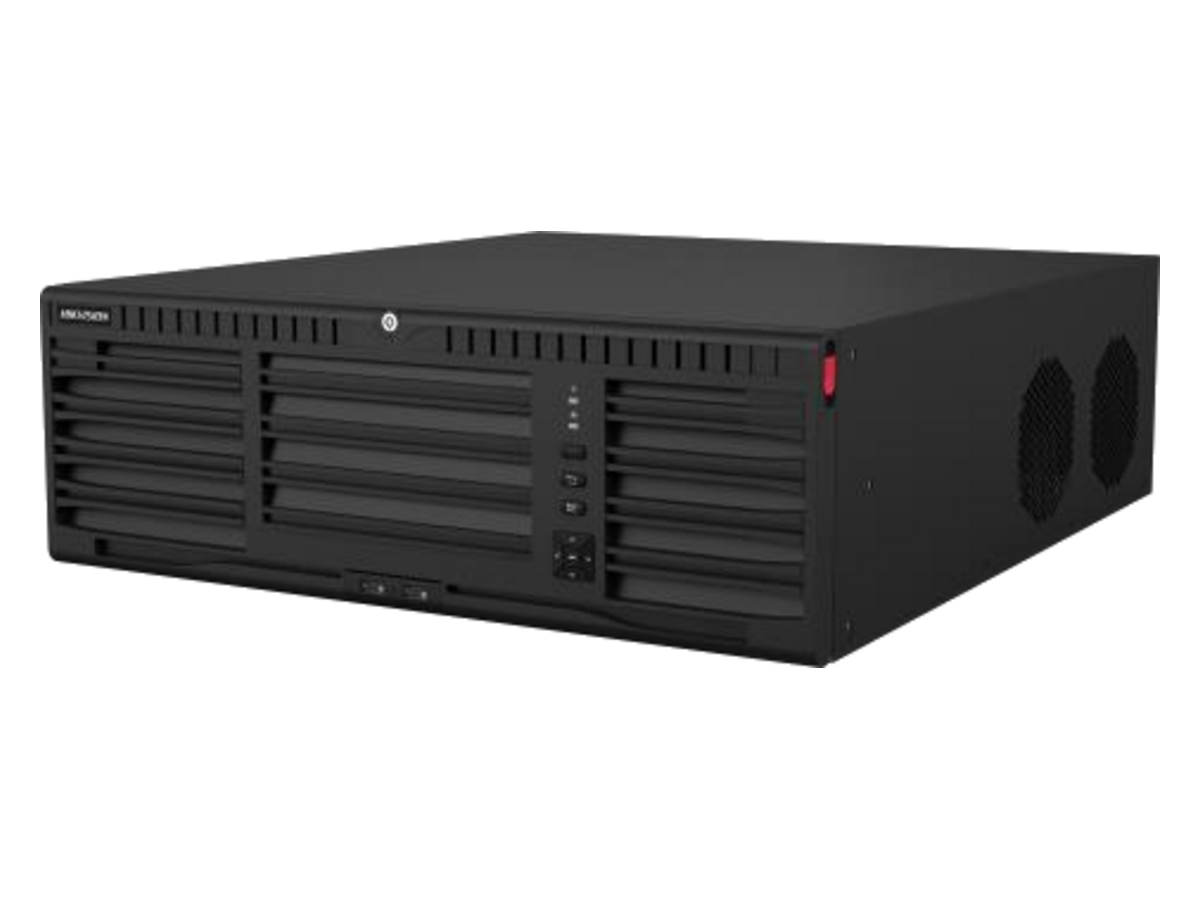

Name: HIKVISION DS-96128NI-M16 128路NVR錄影主機
Brand: Hikvision
SKU: DS-96128NI-M16

產品簡介

Hikvision DS-96128NI-M16 為128-ch 3U 4K NVR，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-96128NI-M16 香港價格連安裝報價。

一機可接128路IP鏡頭，大型商場、工廈、車場等多鏡頭場地都夠用，唔使加多台NVR
支援H.265+壓縮，同樣畫質下可慳最多75%儲存空間，等於同一組硬碟可以錄多好幾倍日數
入口頻寬達400Mbps，即使128路鏡頭同時全高清錄影都唔會爆頻寬做成畫面卡頓或掉幀
16個SATA硬碟位加RAID0/1/5/6/10支援，可以做硬碟陣列備援，單一硬碟壞咗都唔會丟失錄影
3U機箱設計配雙風扇散熱，適合機房長時間24小時運作，穩定性同耐用度較高

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

	Up to 128-ch IP camera inputs
	H.265+ compression effectively reduces the storage space by up to 75%
IP 視頻輸入	128-ch
入口頻寬	400 Mbps
出口頻寬	400 Mbps 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 ×
HDMI 1 Output	1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI 2 Output *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA 1 Output	1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 2 Output	1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;
視頻輸出模式	HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
音訊輸入	1-ch, RCA (2.0 Vp-p, 1 KΩ)
音訊輸出	2-ch, RCA (Linear, 1 KΩ)
雙向語音	1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
解碼格式	H.265+/H.265/H.264+/H.264 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 Recording Resolution MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
同步回放	16-ch 2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP Decoding Capability (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
音訊壓縮	G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, Network Protocol UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
網絡接口	2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access Protocol	ONVIF(Version 2.5), RTSP RAID
RAID Type	RAID0, RAID1, RAID5, RAID6, RAID10
Serial Interface	1 RS-485 (full-duplex), 1 RS-232
SATA	16 SATA interfaces supporting hot-plug
eSATA	1 eSATA interface
容量	Up to 16 TB capacity for each disk
警報輸入/輸出	16/9
USB 接口	Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0 Controllable 12 VDC, 1 A power output for external alarm device; The power will be
Ctrl 12V	turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.
DC 12V	12 VDC, 1 A power output
供電	100 to 240 VAC, 50 to 60 Hz
功耗	≤ 50 W (without HDD)
工作溫度	-10 °C to 55 °C (14 °F to 131 °F)
工作濕度	10% to 90%
Chassis	3U chassis

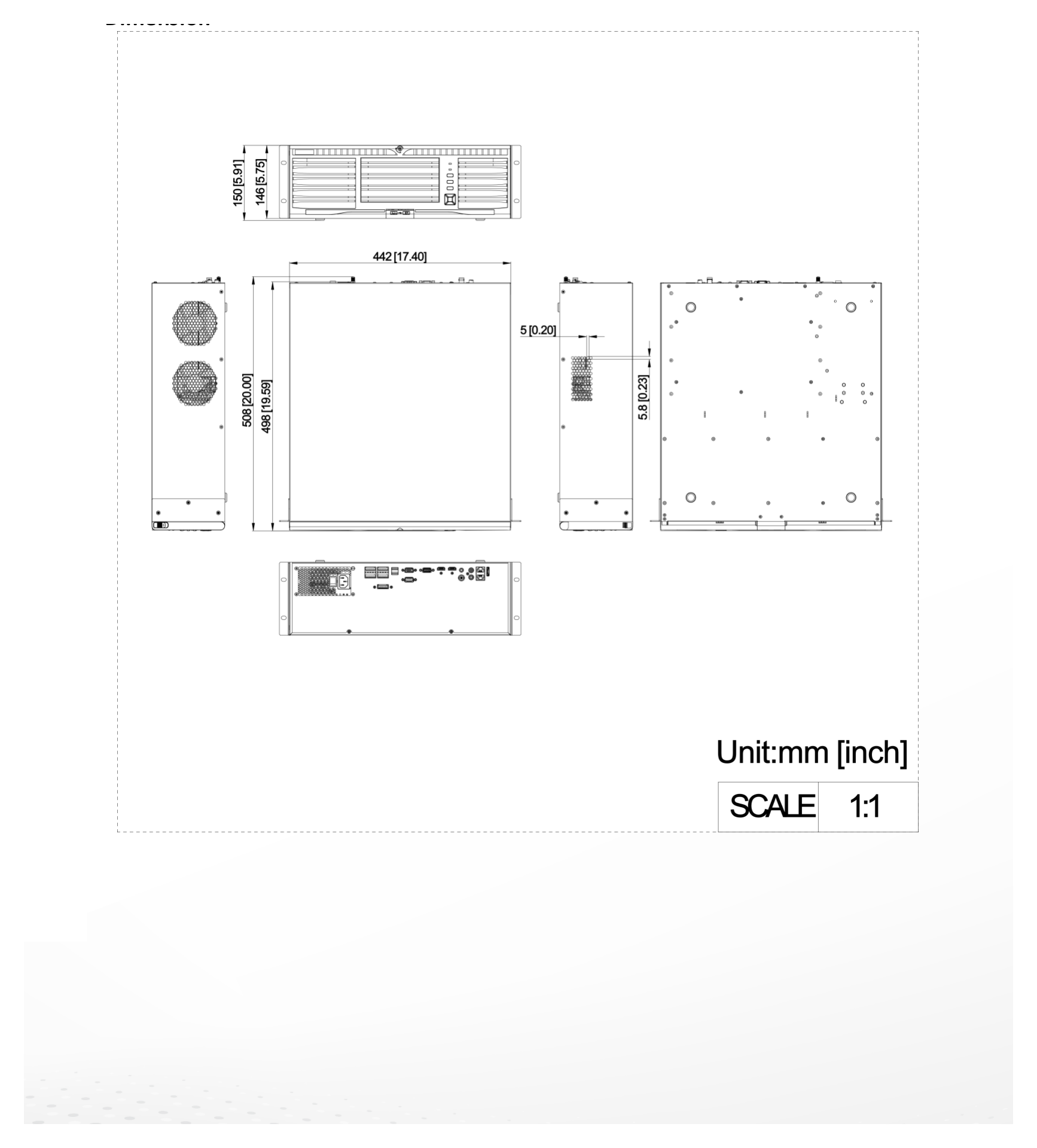

尺寸	442 × 498 × 146 mm (17.4" × 19.6" × 5.8")
重量	≤ 12.5 kg (without HDD, 27.6 lb.)
Obtained Certification	CE, FCC
FCC	Part 15 Subpart B, ANSI C63.4-2014
CE	EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
