| | Up to 32×1080p decoding capacity |
|---|
| AI by NVR | Facial recognition, perimeter protection, video structuralization Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA |
|---|
| Facial Detection and Analytics | Face picture comparison, human face capture, face picture search Up to 64 face picture libraries, up to 300,000 face pictures in list library (each picture ≤ 4 MB, total capacity ≤ 10 GB) |
|---|
| Face Picture Comparison | 16-ch |
|---|
| Performance | independent mode: 4-ch, up to 2 MP. |
|---|
| By NVR | Up to 32-ch All channels , up to 345,600 targets per day Note: The camera should enable AcuSearch function. Simultaneous mode: 8-ch, up to 2 MP independent mode: 4-ch, up to 2 MP. |
|---|
| By Camera | All channels Simultaneous mode: 8-ch, up to 2 MP independent mode: 4-ch, up to 2 MP. Up to 64 face picture libraries, up to 300,000 face pictures in list library (each picture ≤ 4 MB, total capacity ≤ 10 GB) 16-ch; Comparison speed: 24 pictures per second 128-ch Up to 32 MP resolution |
|---|
| 入口頻寬 | 1280Mbps |
|---|
| 出口頻寬 | 1024Mbps 640Mbps 512Mbps 4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz 4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz 8K (7680 × 4320)/30 Hz, 4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 |
|---|
| HDMI 4 Output | 1080P (1920 × 1080)/60 Hz |
|---|
| VGA 1 Output | 1080P (1920 × 1080)/60 Hz |
|---|
| VGA 2 Output | 1080P (1920 × 1080)/60 Hz Mode 2 (simultaneous output): HDMI 1, VGA 1, HDMI 2, VGA 2, HDMI 3, and HDMI 4 provide simultaneous output, the maximum resolution for VGA 1/VGA 2/HDMI 4 is 1080p, the maximum resolution for HDMI 1/HDMI 2/HDMI 3 is 4K; Mode 3 (independent output and 8K HDMI 3 output resolution): HDMI 1/VGA 1/HDMI 2/VGA 2, HDMI 3, and HDMI 4 provide independent output respectively. The max |
|---|
| HDMI Input | 1-ch |
|---|
| HDMI Loopback | 1-ch (matching the HDMI input) |
|---|
| 音訊輸出 | 2-ch, RCA (Linear, 1 KΩ) |
|---|
| 雙向語音 | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
|---|
| 解碼格式 | H.265/H.265+/H.264/H.264+ 2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps) |
|---|
| 同步回放 | 16-ch 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF |
|---|
| 遠程連接 | 256 TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (version 2.2), OTAP |
|---|
| API | ONVIF (profile S/G); SDK; ISAPI |
|---|
| Compatible Browser | IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version |
|---|
| 網絡接口 | 4, RJ-45 10/100/1000/2500 Mbps self-adaptive Ethernet interface |
|---|
| Camera Access Protocol | ONVIF (version 2.5), RTSP |
|---|
| RAID Type | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
|---|
| SATA | 24 SATA interfaces; 3.5-inch HDD |
|---|
| eSATA | 1 eSATA interface |
|---|
| 容量 | Up to 20 TB capacity for each HDD |
|---|
| Serial Interface | 1 RS-232, 2 RS-485 (half-duplex) |
|---|
| USB 接口 | Front panel: 2 × USB 2.0; Rear panel: 4 × USB 3.0 |
|---|
| 警報輸入/輸出 | 32/16 English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish |
|---|
| GUI Language | Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian |
|---|
| 供電 | 100 to 240 VAC, 50 to 60 Hz, redundant power supply |
|---|
| 功耗 | ≤ 100 W (without HDD) |
|---|
| 工作溫度 | -10 to 55°C (14 to 131° F) |
|---|
| 工作濕度 | 10 to 90% |
|---|

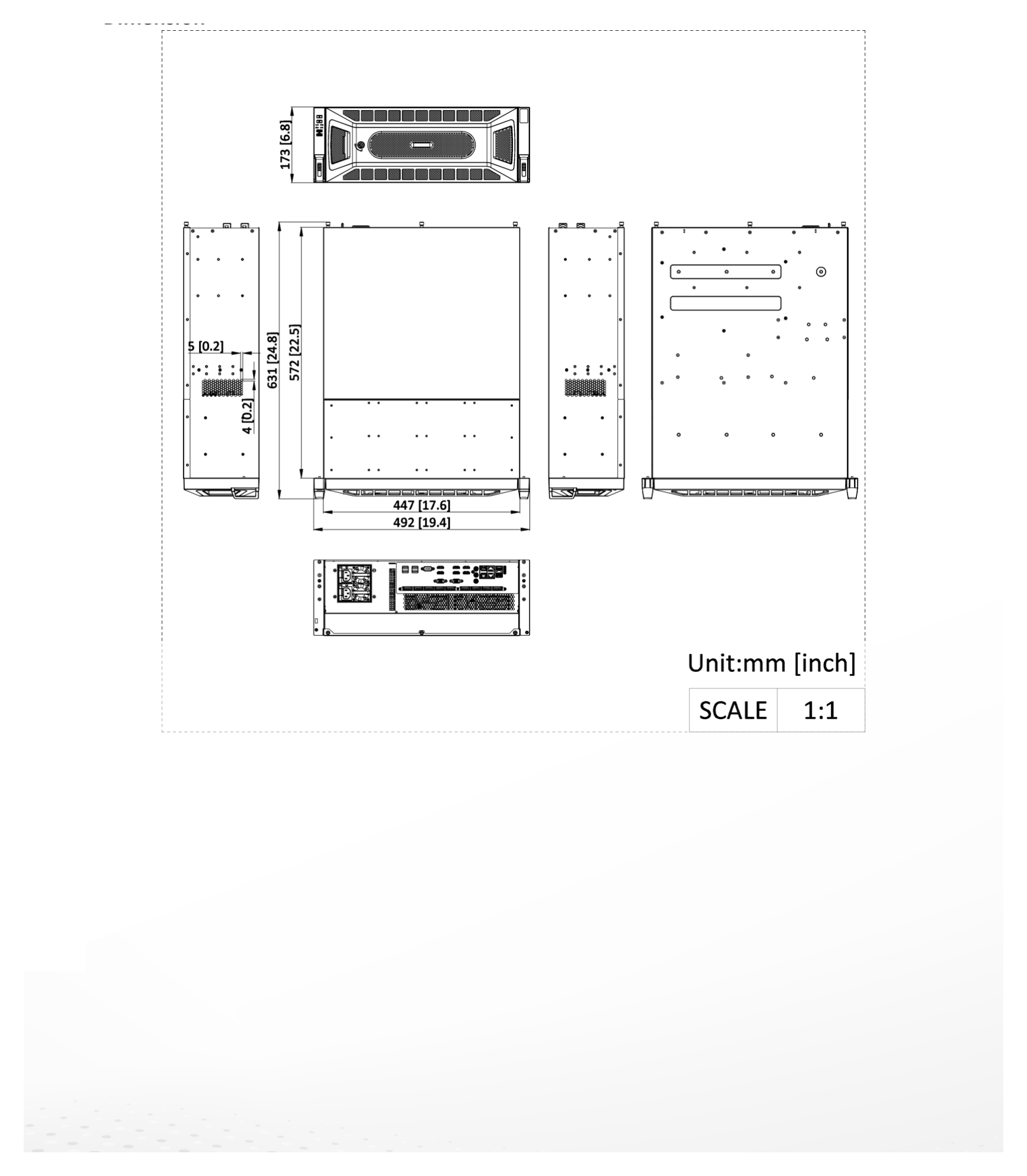

| 尺寸 | 447 mm × 572 mm × 173 mm (17.6 × 22.5 × 6.8 inch) |
|---|
| 重量 | ≤ 19 kg (without HDD, 28.7 lb.) |
|---|
| Obtained Certification | CE, IC, CB, Rohs, Reach, WEEE, RCM, UKCA, LOA EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
|---|
| No. | Description No. Description |
|---|
