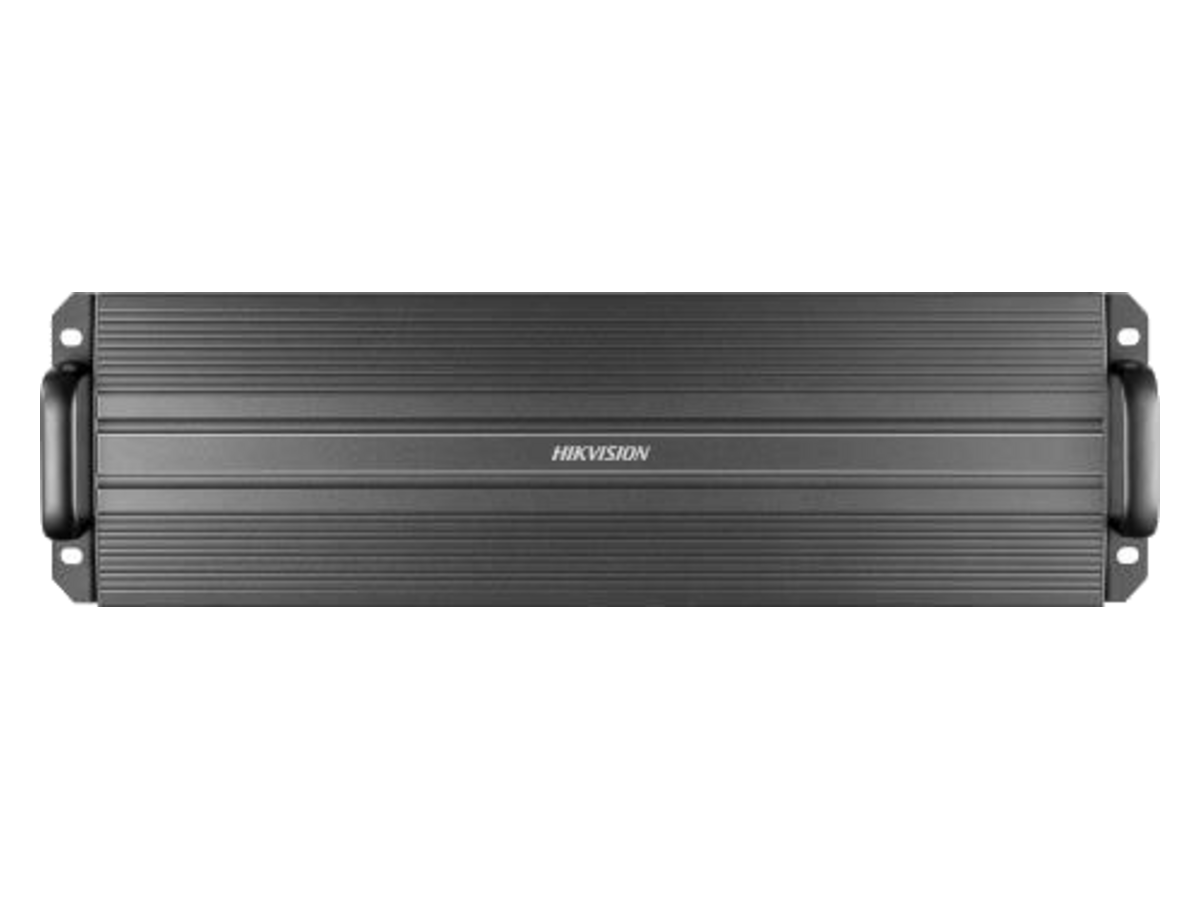

| Chassis Height | 3U |
|---|
| Bus Type | Gigabit network switching |
|---|
| Main Control Board Slot | 1 |
|---|
| Installed Main Control Boards | 1 |
|---|
| Power Supply Slot | 2 |
|---|
| Installed Power Supplies | 1 |
|---|
| Service Board Slot | 6 |
|---|
| Installed Service Boards | 6 |
|---|
| Fans | 14 (2 fan boards, 7 fans per fan board) |
|---|
| USB 接口 | 2 × USB 2.0 1 × Console port (RJ-45) + 1 × reserved port for debugging + 2 × RS-485/RS-232 multiplex ports (RJ-45) |
|---|
| 電源接口 | 100 to 240 VAC, 50/60 Hz |
|---|
| Device Consumption | ≤ 300 W |
|---|
| 網絡接口 | 2 × 10/100/1000 Mbps self-adaptive Ethernet interface (RJ-45) |
|---|
| Video Walls | 8 |
|---|
| Video Wall Scale | ≤ 32 |
|---|
| Open Windows | 512 1/4/6/8/9/16/25 |
|---|
| Input Source Copy Capability | Supported |
|---|
| Layers Per Port | 4 × 1080p or 2 × 4K |
|---|
| Layers per Device | 128 |
|---|
| Scenes | 128 |
|---|
| Display Video Wall Image | Supported |
|---|
| Scene Auto-Switch Delay | 3s |
|---|
| Preview Channels | 2 |
|---|
| Live View Resolution | CIF(352 × 288)/QCIF(176 × 144)/HCIF(704 × 288)/DCIF(528 × 384)/FCIF(704 × 576) ≤ 8, single background image resolution: 1280 × 720 to 7680 × 4320, background image format: JGP/JPEG. |
|---|
| Subtitles | ≤ 8 subtitles on the video walls; ≤ 3 subtitles on a single video wall |
|---|
| Input Image Clipping | Supported, 200 pixels on the left, right, top and bottom edges. 120 ms |
|---|
| 工作溫度 | 0 °C to 50 °C |
|---|
| 工作濕度 | 10% to 90% |
|---|
| 淨重 | ≤ 9.4 kg (20.72 lb.) |
|---|
| 毛重 | ≤ 18 kg (39.68 lb.) |
|---|

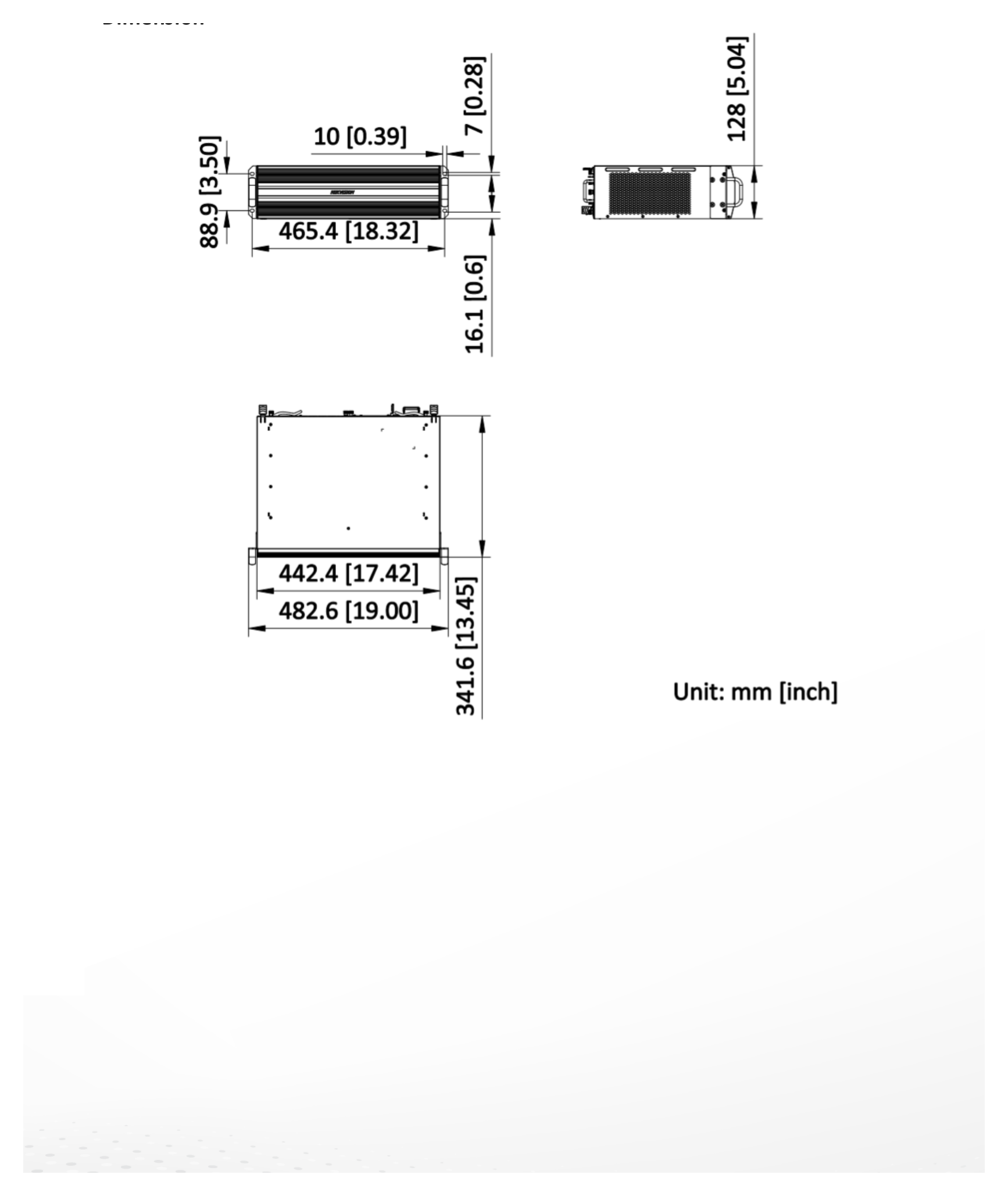

| 尺寸 | 442.4 mm × 128 mm × 341.6 mm (17.42 inch × 5.04 inch × 13.45 inch) |
|---|
| 包裝清單 | bracket, several HDMI snap fittings, 1 × regulatory compliance and safety information manual |
|---|
| Audio Input Interfaces | 16 |
|---|
| Audio Input Interface Type | HDMI embedded 1024 × 768@60 Hz, 1280 × 1024@60 Hz, 1366 × 768@60 Hz, 1440 × 900@60 Hz, 1680 × 1050@60 Hz, 1280 × 960@60 Hz, 1600 × 1200@60 Hz, 1280 × 720p@50 Hz, 1280 × 720p@60 Hz, 1920 × 1080p@50 Hz, 1920 × 1080p@60 Hz, 1920 × 1200@60 Hz, 3840 × 2160@30 Hz (only odd-numbered ports) Supports custom resolution. Width: 800 to 1920, pixel alignment: must be a multiple of 4 Height: 600 to 1200, pixel |
|---|
| Video Input Interface Type | HDMI 1.4 |
|---|
| Max. Video Input Resolution | 4K (Only odd-numbered ports) |
|---|
| Video Input Interfaces | 16 |
|---|
| Video Encoding Channels | 16 |
|---|
| Video Encoding Format | H.265 (default), H.264 |
|---|
| Video Encoding Capability | 16 channels of 1080p 60 fps or 8 channels of 4K30 |
|---|
| Audio Encoding Format | G722.1,G711_U,G711_A,AAC |
|---|
| Video Output Interface Type | HDMI 1.4 |
|---|
| Video Output Interfaces | 32 |
|---|
| Max. Video Output Resolution | 4K XGA_60 Hz(1024 × 768@60 Hz)/SXGA_60 Hz(1280 × 1024@60 Hz)/ 720P_60 Hz(1280 × 720@60 Hz)/UXGA_60 Hz(1600 × 1200@60 Hz)/ WSXGA_60 Hz(1680 × 1050@60 Hz)/WUXGA_60 Hz(1920 × 1200@60 Hz)/ 1080P_60 Hz(1920 × 1080@60 Hz)/4K_30 Hz(3840 × 2160@30 Hz) Single port load 2600000, |
|---|
| Loading Capacity for Video | Width 288 - 3840, |
|---|
| Output to LED | Height 288 - 2160, Width must be a multiple of 2 and height must be a multiple of 2 |
|---|
| Video Decoding Format | H.264, H.265, Smart264, Smart265, MJPEG |
|---|
| Video Decoding Channels | 512 H.264/H.265/Smart264/Smart265 format: 16 channels of 32 MP/24 MP, 32 channels of 16 MP, 48 channels of 12 MP, 64 channels of 8 MP, 80 channels of 6 MP, 128 |
|---|
| Video Decoding Capability | channels of 4 MP, 256 channels of 1080p, or 512 channels of 720p/D1 or lower resolution (One group of 4 outputs shares decoding capability) MJPEG format: 32 channels of 2 MP |
|---|
| Audio Output Interfaces | 32 |
|---|
| Audio Output Interface | HDMI embedded Audio Decoding |
|---|
| Audio Decoding Format | G711-A, G711-U, G722.1, G726-16/U/A, MPG, AAC-LC Device Parameters |
|---|
| Device Decoding Capability | 256 channels of 1080p 30 fps |
|---|
| Device Splicing Capability | 32 channels |
|---|
