| 影像感測器 | 1/2.8" progressive scan CMOS |
|---|
| 最低照度 | Color: 0.005 Lux @(F1.5, AGC ON), B/W: 0.001 Lux @(F1.5, AGC ON), 0 Lux with IR Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
|---|
| Gain | Auto/Manual |
|---|
| 快門速度 | 50Hz: 1/1 s to 1/30,000 s, 60Hz: 1/1 s to 1/30,000 s |
|---|
| 日夜切換 | IR Cut Filter |
|---|
| Digital Zoom | 16× |
|---|
| 隱私遮蔽 | 24 programmable privacy masks |
|---|
| Focus Mode | Auto/Semi-automatic/Manual |
|---|
| WDR | 120 dB WDR Horizontal field of view: 109° to 34° (Wide-Tele), Vertical field of view: 57° to 19° (Wide-Tele), Diagonal field of view: 135° to 39° (Wide-Tele) |
|---|
| 焦距 | 2.8 mm to 12 mm, 4× optical zoom |
|---|
| 變焦速度 | Approx. 2 s (optical lens, wide-tele) |
|---|
| Working Distance | 10 mm to 1500 mm (wide-tele) |
|---|
| Aperture Range | F1.5 to F2.7 |
|---|
| IR Distance | 20 m |
|---|
| Smart IR | Support |
|---|
| 水平旋轉 | 0° to 355° |
|---|
| 水平速度 | Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/s |
|---|
| 垂直旋轉 | 0° to 90° |
|---|
| 垂直速度 | Configurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s |
|---|
| Proportional Zoom | Support |
|---|
| 預置位 | 300 |
|---|
| 斷電記憶 | Support |
|---|
| H.264+ | Support |
|---|
| H.265+ | Support |
|---|
| H.264 類型 | Baseline Profile/Main Profile/High Profile Main Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG |
|---|
| H.265 類型 | Main Profile |
|---|
| Video Bitrate | 32 Kbps to 16384 Kbps |
|---|
| 音訊壓縮 | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
|---|
| Audio Bitrate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2) |
|---|
| SVC | Support User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering Network Storage SMB/ CIPS), ANR IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, Protocols RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour Open-ended, support Open Network Video Interface, ISAPI, |
|---|
| 同時取流 | Up to 20 channels |
|---|
| 用戶管理 | Up to 32 users, 3 levels: Administrator, Operator and User |
|---|
| 客戶端 | iVMS-4200, HikCentral Pro, HiLookVision |
|---|
| 瀏覽器 | IE 10-11, Chrome 57+, Firefox 52+, Safari 11+ |
|---|
| 影像增強 | 3D DNR, BLC, HLC, Regional Exposure, Regional Focus |
|---|
| 最大解像度 | 1920 × 1080 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), Main Stream 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), Sub-Stream 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), Third Stream 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
|---|
| 音訊輸入 | 1-ch audio input (line in) |
|---|
| 音訊輸出 | 1-ch audio output (line out) |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M Ethernet, PoE |
|---|
| 內置麥克風 | 1 built-in microphone, picking up sounds in the radius up to 5 meters Smart Features |
|---|
| Basic Event Detection | Motion Detection, Video Tampering Detection, Exception Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance |
|---|
| Smart Detection | Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection |
|---|
| Smart Record | ANR (Automatic Network Replenishment), Dual-VCA |
|---|
| ROI | Main stream, sub-stream, and third stream respectively support two fixed areas. |
|---|
| 材質 | Aluminum alloy, PC, PC+ABS |
|---|

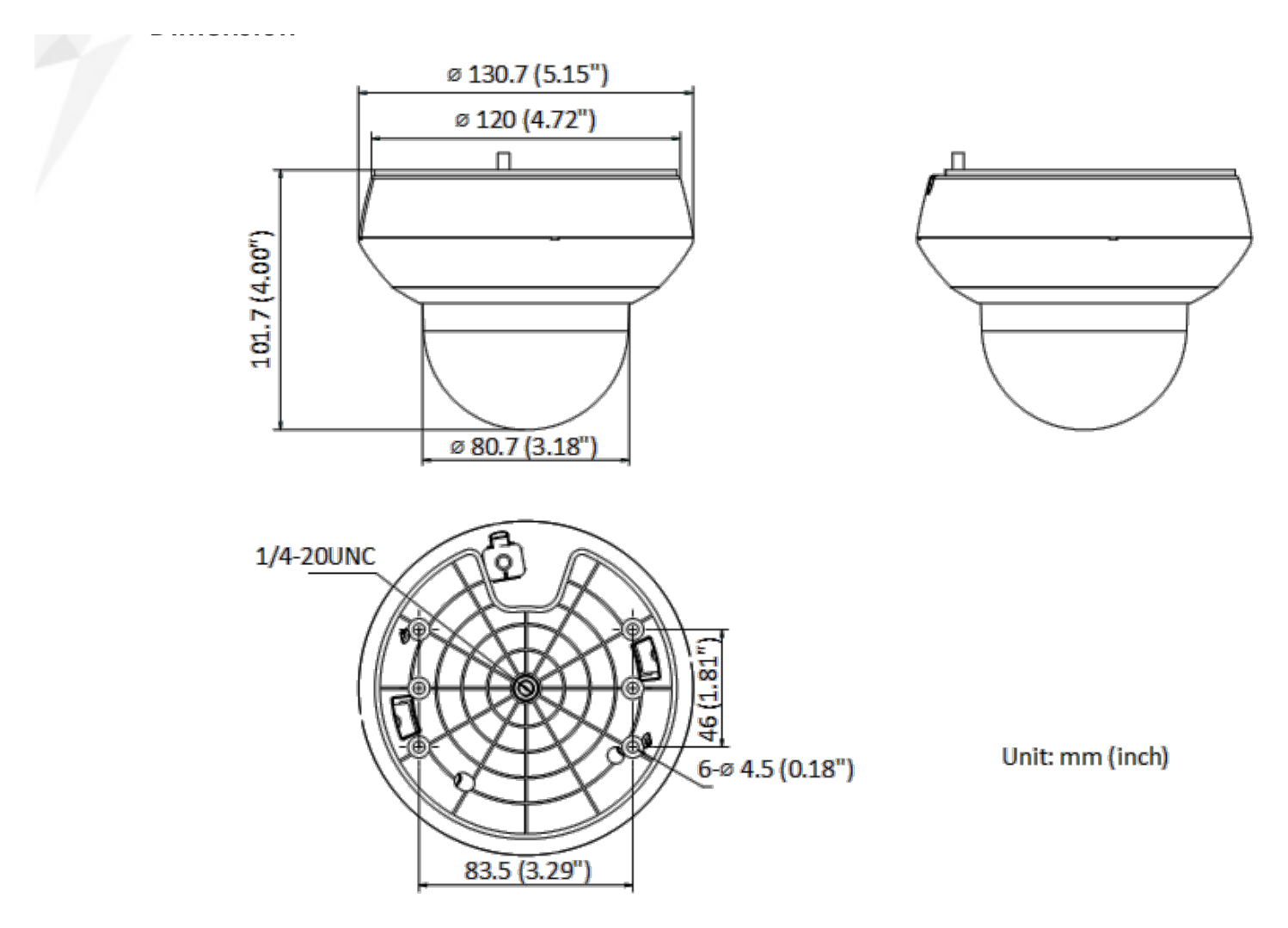

| 尺寸 | Ø 130.7 mm × 101.7 mm (Ø 5.15" × 4.00") |
|---|
| 重量 | Approx. 0.53 kg (1.17 lb) IP66 Standard, IK 10, TVS 4000V Lightning Protection, Surge Protection and Voltage Protection Level Transient Protection 12 VDC, 1.5 A (Max. 9.9 W, including max. 4.2 W for IR) Power PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 11.2 W, including max. 4.2 W for IR) |
|---|
| 工作溫度 | -20°C to 60°C (-4°F to 140°F) |
|---|
| 工作濕度 | ≤ 90% |
|---|
