| 影像感測器 | 1/2.7" Progressive Scan CMOS |
|---|
| 最大解像度 | 1920 × 1080 |
|---|
| 最低照度 | Color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with Light |
|---|
| 焦距 | 2.8 mm/4 mm 2.8 mm, horizontal FOV 106.1°, vertical FOV 55.8°, diagonal FOV 126.5° 4 mm, horizontal FOV 83.6°, vertical FOV 44.6°, diagonal FOV 99.1° |
|---|
| 光圈 | F1.0 |
|---|
| 補光類型 | White Light |
|---|
| 補光距離 | White Light Distance: up to 30 m |
|---|
| 智能補光 | Yes |
|---|
| 水平旋轉 | 0° to 340° |
|---|
| 垂直旋轉 | -5° to 105° |
|---|
| 水平速度 | Pan speed: configurable from 4° to 21°/s |
|---|
| 垂直速度 | Tilt speed: configurable from 4° to 19°/s |
|---|
| 視頻壓縮 | H.265, H.264, MJPEG |
|---|
| H.264 類型 | Baseline Profile, Main Profile, High Profile |
|---|
| H.265 類型 | Main Profile 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
|---|
| 視頻碼率 | 32 Kbps to 8 Mbps |
|---|
| 音訊壓縮 | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC-LC/PCM 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
|---|
| 音訊取樣率 | 8 kHz/16 kHz |
|---|
| 環境噪音過濾 | Yes |
|---|
| 網絡協議 | IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour |
|---|
| API | Open Network Video Interface, ISAPI, SDK |
|---|
| 圖像設定 | Saturation, brightness, contrast, sharpness |
|---|
| 寬動態 WDR | Digital WDR |
|---|
| 影像增強 | BLC, HLC, 3D DNR |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB |
|---|
| 內置麥克風 | Yes |
|---|
| Built-in Speaker | Yes |
|---|
| 重設 | Yes |
|---|
| 基本事件 | Motion detection, video tampering alarm, exception |
|---|
| Alarm Linkage | Upload to FTP, notify surveillance center, send email, upload to memory card With supplement light on: -30 °C to 40 °C. Humidity 95% or less (non-condensing) Operating Condition With supplement light off: -30 °C to 50 °C. Humidity 95% or less (non-condensing) |
|---|
| 一般功能 | Mirror, password protection, watermark 12 VDC ± 25%, 0.75 A, max. 9 W, Ø 5.5 mm coaxial power plug, reverse polarity |
|---|

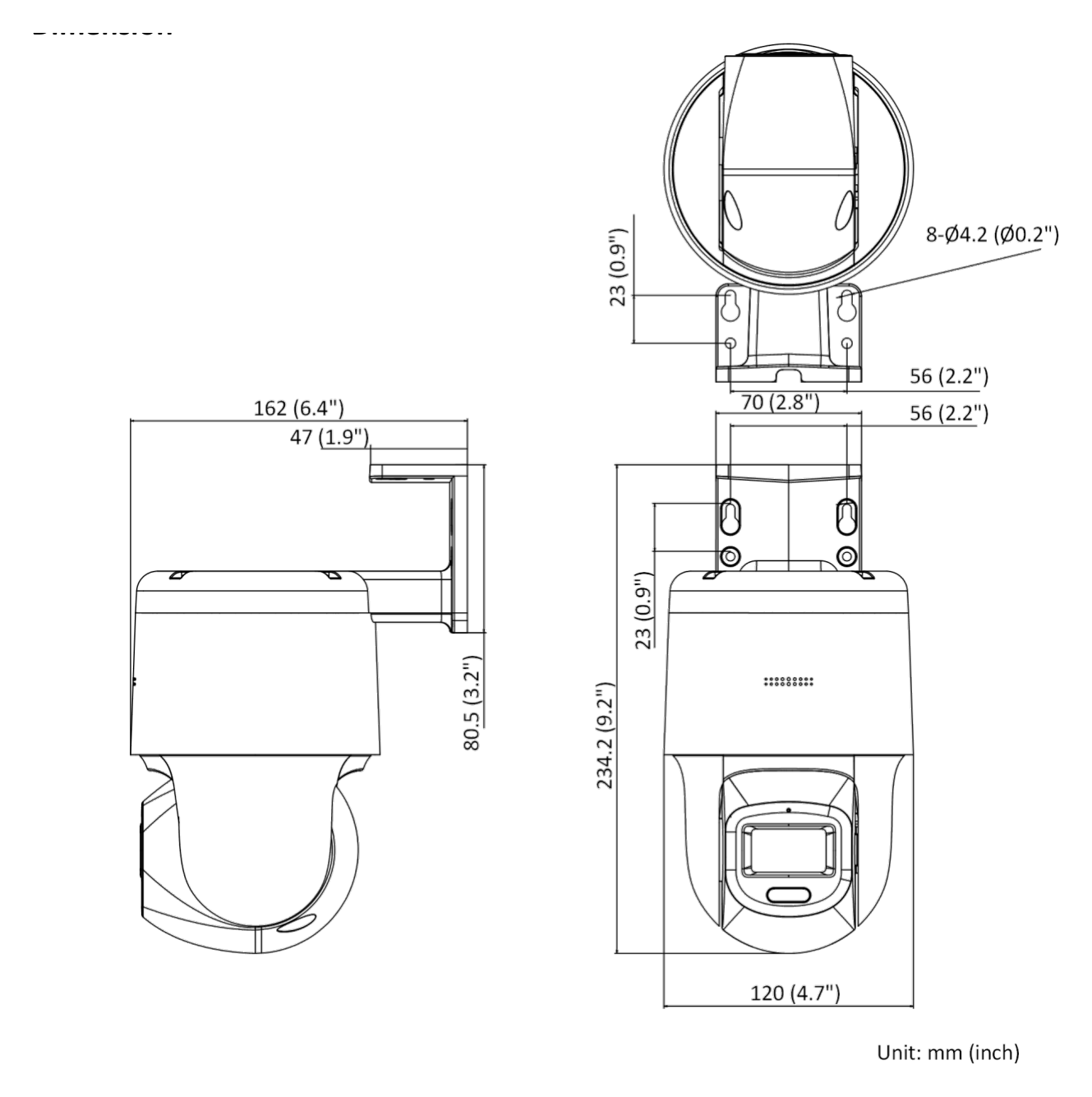

| 供電 | protection PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, max. 10 W Camera dimension: 162 mm × 120 mm × 234.2 mm (6.4" × 4.7" × 9.2") Dimensions Package dimension: 205 mm × 167 mm × 289 mm (8.1" × 6.6" × 11.4") Camera weight: 780 g (1.7 lb.) Weight With package weight: 1280 g (2.8 lb.) FCC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: |
|---|
| 防護等級 | IP66: IEC 60529-2013 |
|---|
