HILOOK PTZ-N2C200I-W(W) 安裝、保養、維修

Name: HILOOK PTZ-N2C200I-W(W) 2MP戶外紅外WIFI雲台網絡攝影機
Brand: HiLook
SKU: PTZ-N2C200I-W(W)

產品簡介

HiLook PTZ-N2C200I-W(W) 為2MP戶外紅外WIFI雲台網絡攝影機，內置WIFI連接功能，無需拉網線都可以安裝，特別適合住宅後花園、天台、貨倉出入口等佈線不便的位置。支援30米紅外夜視及人車分類偵測，減少樹葉、小動物等誤報，並提供簡易追蹤功能；內置咪高峰及喇叭，支援雙向對話。IP66防水設計，戶外安裝耐用可靠。HKEZIT提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務，歡迎查詢 PTZ-N2C200I-W(W) 香港價格連安裝報價。

內置WIFI連接，毋須拉網線都可以安裝，特別適合花園、天台等佈線不便位置
30米紅外夜視，晚上戶外環境都拍得清楚
支援人車分類偵測及簡易追蹤，減少樹葉、小動物等誤報困擾
內置咪高峰及喇叭，支援雙向對話，可即時警示可疑人士
IP66防水設計，適合戶外長期安裝使用

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

影像感測器	1/2.8" Progressive Scan CMOS
最大解像度	1920 × 1080
最低照度	Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR
焦距	2.8 mm, 4 mm 2.8 mm, horizontal FOV 92°, vertical FOV 50°, diagonal FOV 110° 4 mm, horizontal FOV 75°, vertical FOV 41°, diagonal FOV 89°
光圈	F2.0
補光類型	IR
補光距離	IR distance: up to 30 m
紅外波長	850 nm
水平旋轉	0° to 345°
垂直旋轉	0° to 80°
水平速度	Up to 25°/s
垂直速度	Up to 20°/s 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) 50 Hz: 25 fps (768 × 432, 512 × 288) 60 Hz: 30 fps (768 × 432, 512 × 288) Main stream: H.265/H.264, Sub-stream: H.265/H.264
視頻碼率	256 Kbps to 1 Mbps
H.264 類型	Baseline profile, Main profile, High profile
H.265 類型	Main profile
音訊壓縮	G.711, AAC-LC
音訊碼率	64 Kbps (G.711ulaw/G.711alaw), 16 to 64 Kbps (AAC-LC)
音訊取樣率	8 kHz, 16 kHz
環境噪音過濾	Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
API	ONVIF, SDK Password protection, HTTPS encryption, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface
客戶端	iVMS-4200, HiLookVision, Hik-Partner-Pro
Encryption Mode	WPA-PSK/WPA2-PSK
Wi-Fi Protocols	IEEE802.11b, IEEE802.11g, IEEE802.11n
Frequency Range	2.412 GHz to 2.472 GHz
Channel Bandwidth	20 MHz 802.11b: CCK, QPSK, BPSK,
Modulation	802.11g: OFDM, 802.11n: OFDM
Transfer Rate	11b: up to 54 Mbps, 11g: up to 54 Mbps, 11n: up to 150 Mbps Up to 50 m (The performance varies based on actual environment)
圖像設定	Saturation, brightness, contrast, and sharpness adjustable by client software
寬動態 WDR	Digital WDR
網絡接口	1 RJ45 10 M/100 M self-adaptive Ethernet port
內置麥克風	1 built-in microphone
機身儲存	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Speaker	1 built-in speaker Motion detection (support alarm triggering by specified target type (human and vehicle)), exception Upload to memory card, notify surveillance center, trigger capture, audible warning, auto-tracking lite Line crossing, intrusion, region entrance, region exiting Support alarm triggered by specified target types (human and vehicle)
供電	12 VDC ± 10%, 1 A, max. 10 W, Ø 2 mm coaxial power plug, reverse polarity protection

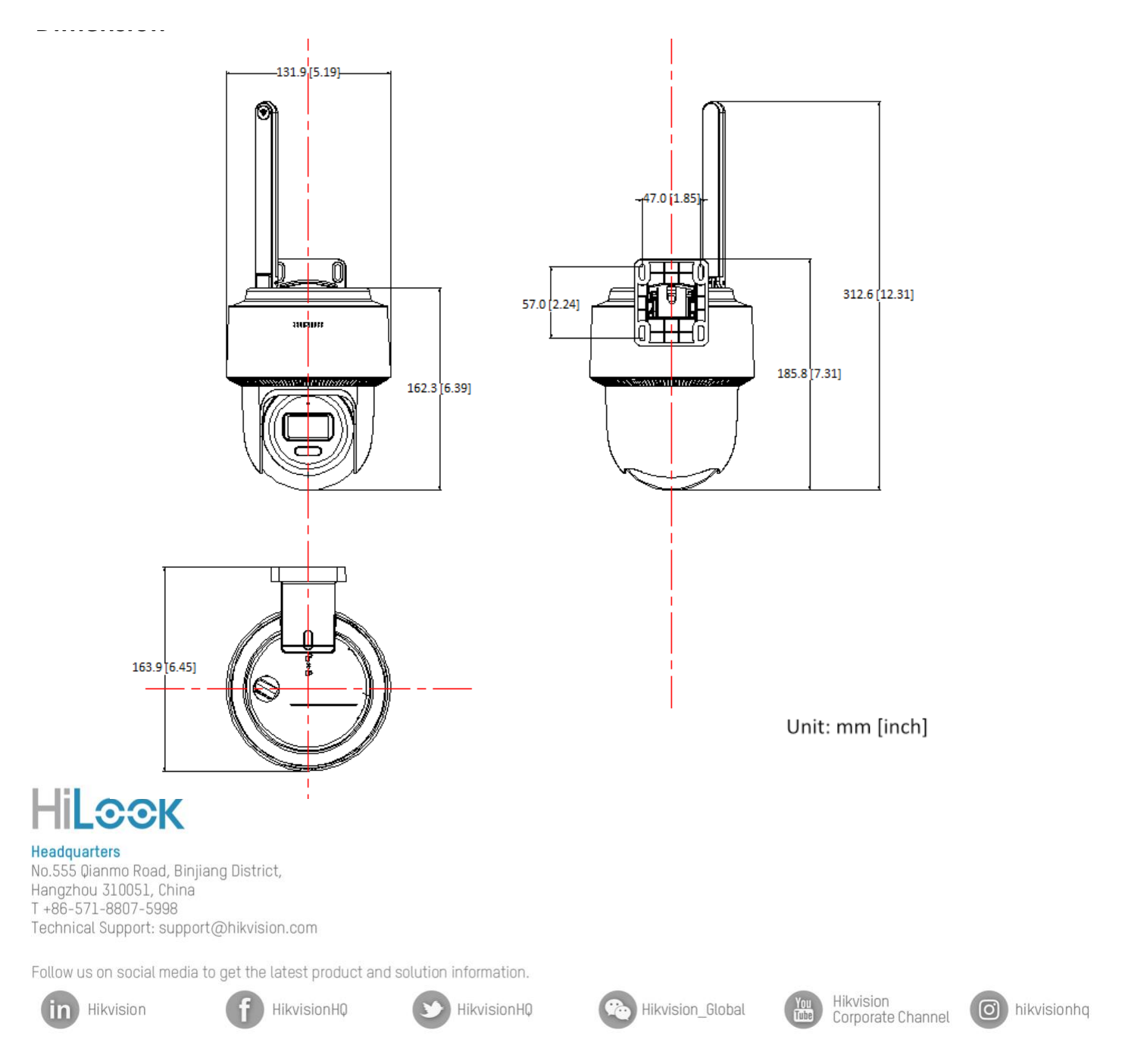

尺寸	163.9 mm × 185.8 mm × 131.9 mm (6.45" × 7.31" × 5.19")
重量	Camera weight: 565 g (1.25 lb.) With package weight: 1020 g (2.25 lb.)
材質	Plastic
工作環境	-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
一般功能	heartbeat, mirror CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014)
Safety	CB (IEC 62368-1: 2014 + A11), CE-LVD (EN 62368-1: 2014/A11: 2017)
Environment	CE-RoHS (2011/65/EU), WEEE (2012/19/EU)
防護等級	IP66 (IEC 60529-2013)
