| Built-in Communication Options | Ethernet; RS-485; USB |
|---|
| I/O Expansion Module | Use RS-485 Port to connect a maximum of 2 downstream I/O modules (NX4)(4) |
|---|
| Communications | Connectivity (Output or Input) EVL: 16 MPA2 or NetAXS123 Controller Loop Capability RS-485: 9 MPA2 and/or NetAXS123 panels total (8+1)(1,2) |
|---|
| Door/Reader Capability | 2 Door/4 Readers - 4 Door/8 Readers(3) |
|---|
| Readers/Doors | Expandability Expandable to 36 Doors/72 Readers per controller loop(1,2) |
|---|
| Reader Compatibility | OSDP:V2 and Standard Wiegand Protocol supported 4 SPDT (jumper-selectable NO or NC contacts) per door rated at 3 A @ 28 VDC; |
|---|
| Number of Outputs | 4 Open Collector outputs (OC) rated at 16 mA @ 12 VDC: Reader LED (Aux) and Reader Buzzer (Aux) per door are available |
|---|
| Output Expandability | Expandable to 36 total outputs using max. 2 NX4 Relay Output Boards(4) Selectable: 12 VDC Self-Powered source or 0–28 VDC externally supplied source Relay Power Source (USA only) 8 (+4) Configurable four-state supervised input points |
|---|
| Number of Inputs | (Factory Default Settings are: Status, REX, Reader Tamper A, Reader Tamper B, Ext. Tamper, and General Input) |
|---|
| Input Expandability | Inputs Expandable to 68 with max. 2 NX4IN Relay Input Boards(4) (USA only) |
|---|
| Panel Tamper (3X) | Panel Door, Off-Wall and External Tamper 100 to 240 VAC, 50/60 Hz Input provides Unit Input 13,8 VDC, 3.5 A Output, Battery Voltage Low Shutdown at 10.50V |
|---|
| Socket or Hardware AC Input (IEC) | MPA1002UMPS only |
|---|
| Control Board Power Input | 13,8 VDC (+/- 10%) from included Power Supply |
|---|
| Power for Locks/Strikes/ | 1,25 A per door for locks/strikes, Readers, and Input Devices |
|---|
| Power Outputs | Reader(s)/Input Devices (2,5A @ 12VDC Total) |
|---|
| Backup Battery System | 12 VDC, 7 Ah Battery |
|---|
| 材質 | Metal |
|---|
| Wiring Access Holes/Knockouts | 24 Removable Terminal Blocks with Battery/PSU Colour-coded Labels |
|---|
| Graphic Wiring Info Cards/Labels | Yes |
|---|
| Captive Mounting Hardware | Yes |
|---|
| Real Time Clock | Global Geographic Time Zone support; Daylight Saving Time support |
|---|
| Clock Synchronization | Yes: via NTP Network Server |
|---|
| 處理器 | IMX6-X1 |
|---|
| System Mean Time Between Failures | 250,000 Hours |
|---|
| Information | Operating: 0°C to 49°C (32°F to 120°F) Temperature Ratings Storage: -55°C to 85°C (-67°F to 185°F) |
|---|
| Humidity | 93% Non-Condensing |
|---|
| Lead Acid Batteries | -40°C to 50°C (-40°F to 122°F) |
|---|
| Certifications and Approvals | EMC/CE and FCC Compliant; UL 294 Listing, ULC319 |
|---|
| 尺寸 | 14.1 inch (360 mm) x 16.1 inch (410 mm) x 4.3 inch (110 mm) |
|---|

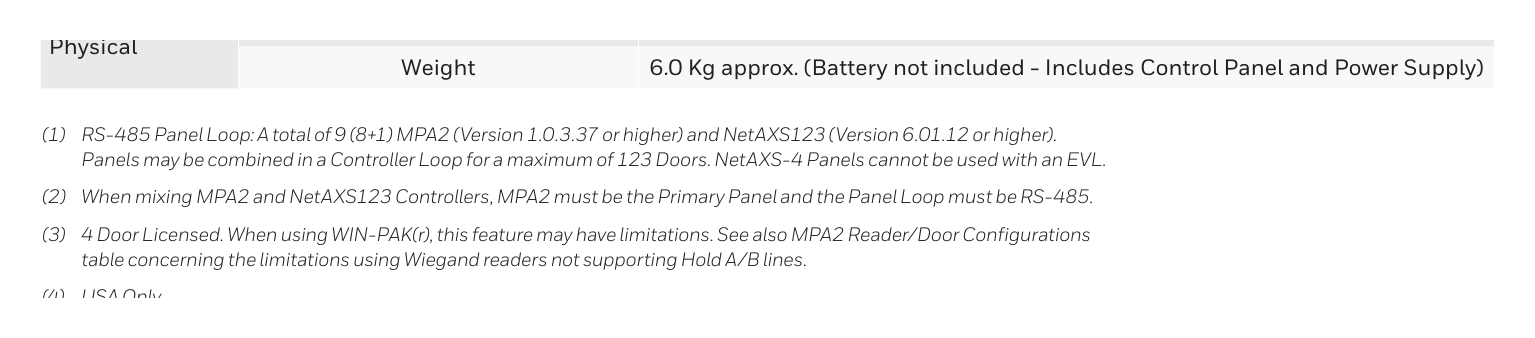

| 重量 | 6.0 Kg approx. (Battery not included - Includes Control Panel and Power Supply) Panels may be combined in a Controller Loop for a maximum of 123 Doors. NetAXS-4 Panels cannot be used with an EVL. table concerning the limitations using Wiegand readers not supporting Hold A/B lines. SPECIFICATIONS |
|---|
| SPECIFICATIONS | MPA1002E(U)MPS 12 LEDs total (13,8V Power, PoE, Battery Ready, Over Current, Ethernet, RS-485, |
|---|
| LEDs | Status LEDs Reader(s), Door State, Run, Relay Status, Wiegand Comm. OSPD Comm) |
|---|
| Software Compatibility(1) | MAXPRO® Cloud, WIN-PAK® XE/SE/PE/CS, Web Services |
|---|
| Host | MPA2 as Primary Panel Supported Downstream Panels include MPA2 and NetAXS123(2,3) |
|---|
| NetAXS123 as Primary Panel | Supported Downstream Panels include MPA2 and NetAXS123 only(2,3) Card only; Card and PIN; Card or PIN; PIN only; Lockdown; Disabled; Supervisor; Escort; Door Control Modes Limited use card; Expire on date; First Card Rule; Snow Day Rule; Time Zone Toggle; Anti-Passback; Duress(4) |
|---|
| Interlocks For Customer Actions | Yes |
|---|
| Anti-Passback Capability | Local and Global Capability; Hard and Soft Implementation |
|---|
| Card and Event Buffer Capacity | Panel = 100,000 / Solution = Host dependant On-board Flash Memory for Field Firmware Revision Updates and Firmware Revision Feature Expansion |
|---|
| Offline Database Backup Available | Card and Configuration Databases |
|---|
| Export Capabilities | Card Database; Alarms and Events (CSV format)(4) |
|---|
| Cards and | Number of Card Formats 128 unique card formats can be supported(4) |
|---|
| Site Codes | 8 |
|---|
| Maximum Card Format Size | 75-bit (maximum card # = 64-bits)(4,5) |
|---|
| Time Zones | 127(4) |
|---|
| Access Levels | Panel = 65535 / Solution = Host dependant |
|---|
| Holidays | 255(4) |
|---|
| Integrated Basic Reports | Yes |
|---|
| Import/Export of Card Database | Yes |
|---|
| Alarm/Event Export | Yes |
|---|
| Web | Supported Browsers Google Chrome (preferred) NetAXS-4 panels cannot be used with an EVL. ORDERING |
|---|
| MPA1002E-MPS | MPA2 - 2 Door Access Control Solution (Europe). Includes: MPA2C1, MPA2ENCM, 2x MPA2RJ, MPA2BAT7 MPA2 - 4 Door Access Control Solution (Europe). Includes: MPA2C1-4 (4 DOOR LICENSED), MPA2ENCM, 2x MPA2RJ, MPA2BAT7 |
|---|
| MPA1002U-MPS | MPA2 - 2 Door Access Control Solution (USA). Includes: MPA2C1, MPA2ENCMP, 2x MPA2RJ, MPA2BAT7 MPA2 - 4 Door Access Control Solution (USA). Includes: MPA2C1-4 (4 DOOR LICENSED), MPA2ENCMP, 2x MPA2RJ, MPA2BAT7 |
|---|
| MPA2C1 | MPA2 - All-in Smart Access Control Panel only |
|---|
| MPA2C1-4 | MPA2 - All-in Smart Access Control Panel only, 4 door licensed |
|---|
| MPA2ENCM | MPA2 - Metal Enclosure (Europe) |
|---|
| MPA2ENCMP | MPA2 - Metal Enclosure (USA) |
|---|
| MPA2RJ | RJ45 to 8 Screw Terminal block |
|---|
| MPA2BAT7 | (=NXBAT7) 7Ah Lead Acid Battery ADD-ON |
|---|
| NX4IN(1) | MPA2 - RS485 Input Board - 32 inputs per board. |
|---|
| NX4OUT(1) | MPA2 - RS485 Output Board - 16 outputs per board. |
|---|
| NXIOENCKT | Double board enclosure for NX4IN, NX4OUT |
|---|
| Tel: +44 (0)8448 000 235 | HSA-MPA2-02-EN(1120)DS-E |
|---|
| www.honeywell.com | © 2020 Honeywell International Inc. |
|---|
