Uniview IPC322SB-ADF28KM-DL-I1 為IPC322SB-ADF28(40)KM-DL-I1，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC322SB-ADF28KM-DL-I1 香港價格連安裝報價。
| Max Resolution | 2 MP |
|---|---|
| Sensor | 1/2.8" CMOS |
| 最低照度 | Color: 0.001 Lux (F1.6, AGC ON), 0 Lux with light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 8° to 360°, Tilt: 0° to 68°, Rotate: 10° to 360° |
| S/N | > 52 dB |
| WDR | 120 dB |
| 焦距 | 2.8 mm 4.0 mm |
| Iris | F1.6 |
| Field of View (H) | 100.3 ° 86.5 ° |
| Field of View (V) | 56.0 ° 46.6 ° |
| Field of View (D) | 116.4 ° 102.5 ° |
| 鏡頭類型 | Fixed |
| 光圈類型 | Fixed |
| DORI Distance (Lens) | 2.8 mm 4.0 mm |
| DORI Distance (Detect) | 43.4 m (142.5 ft.) 62.1 m (203.6 ft.) |
| DORI Distance (Observe) | 17.4 m (57.0 ft.) 24.8 m (80.4 ft.) |
| DORI Distance (Recognize) | 8.7 m (28.5 ft.) 12.4 m (40.7 ft.) |
| DORI Distance (Identify) | 4.3 m (14.3 ft.) 6.2 m (20.4 ft.) 30 m (98.4 ft.) |
| Illumination Distance (IR) | 30 m (98.4 ft.) |
| Light On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; |
| Frame Rate | 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| 隱私遮蔽 | Up to 4 areas |
| ROI | Support |
| Video Stream | Triple streams |
| Smart IR | Support |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Dewarping | Support |
| HLC | Support |
| 防抖 | N/A |
| BLC | Support |
| 除霧 | Digital defog Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density detection |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| 音訊壓縮 | G.711U, G.711A, AAC-LC |
| Audio Bitrate | G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps |
| 雙向語音 | Support |
| Suppression | Support |
| 取樣率 | G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | ANR, NAS (NFS) IGMP, SMTP, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, DNS, DDNS, NTP, UPnP, HTTP, 802.1x, SNMP, SSL/TLS, IPv4, RTP, RTCP, RTMP, HTTPS, FTP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| 用戶管理 | Up to 32 users. 2 user levels: administrator and common user Password protection, Strong Password, HTTPS encryption, Export operation logs, Basic and |
| 安全 | Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, DTLS 1.2 |
| 客戶端 | EZStation, APP Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 1/1 |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) FCC (FCC 47 CFR part15 B) CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU ; (EU) 2015/863) ; WEEE (2012/19/EU) IP67 (IEC 60529) IK10 (IEC 62262) |
| 供電 | DC 12 V±25%, PoE (IEEE 802.3af) |
| 功耗 | Max. 4.7 W |
| 電源接口 | Ø5.5 mm coaxial power plug |
| 尺寸 | Ø111.0 mm × 82.5 mm (Ø4.4" × 3.3") (Ø × H) |
| 重量 | 0.44kg （0.97lb） |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| 防雷 | 4 KV |
| 材質 | Metal |
| Reset Button | Support 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
| TR-JB03-G-IN | TR-JB07/WM03-G-IN-V2 TR-WM03-D-IN-V2 |
| Wall Mounting Assembling Bracket For 32 | Wall Mounting Bracket for 32 Junction Box for Mini Fix-dome(Support |
| Fix-dome&Mini Fix-dome&Plastic Turret | Fix-dome&Mini Fix-dome&Plastic Turret wiring from behind) |
| Camera | Camera |
| TR-UM06-E-IN | TR-A01-IN TR-UP06-C-IN-V2 Pole Mounting Bracket for Bullet Junction |
| Slant Mounting Bracket for Fixed Dome | NPT 3/4'' Waterproof Cable Gland Box Only |
| TR-UC08-C-V2 | TR-SE24-IN TR-SE24-A-IN |
| Bullet&Dome Corner Mounting Bracket | Dome Pendent Mounting Pole 200mm Dome Pendent Mounting Pole 500mm TR-CM24-IN Dome Pendent Mounting Bracket(Indoor) Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

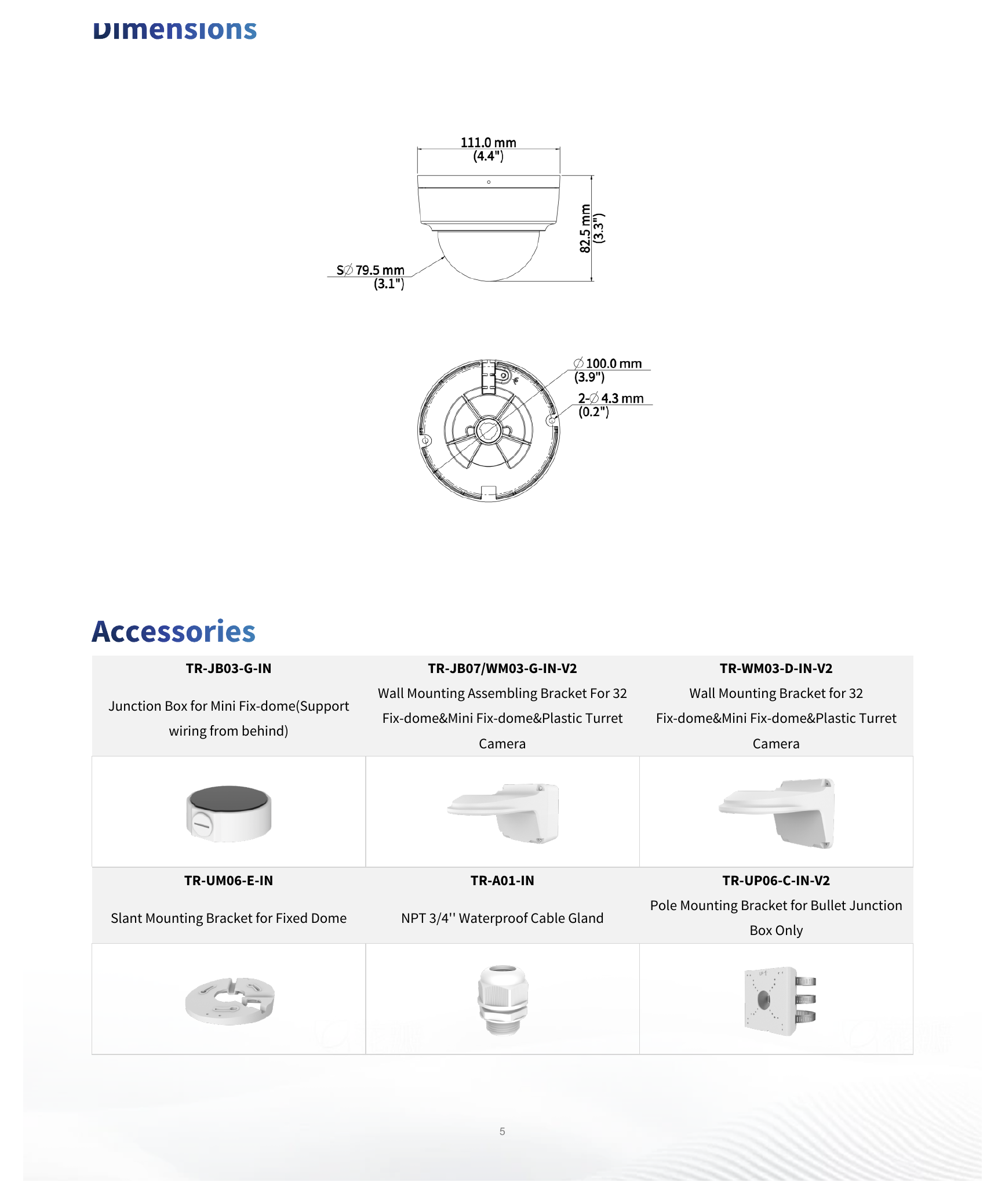

Ø111.0 mm × 82.5 mm (Ø4.4" × 3.3") (Ø × H)｜重量 0.44kg （0.97lb）｜Unit: mm
IPC322SB-ADF28KM-DL-I1 Uniview IPC322SB-ADF28(40)KM-DL-I1亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPC322SB-ADF28KM-DL-I1 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Sensor方面，IPC322SB-ADF28KM-DL-I1 係 1/2.8" CMOS，PKC1150-4-Z28-C-P 係 1/2.7" 5MP CMOS；Shutter方面，IPC322SB-ADF28KM-DL-I1 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC322SB-ADF28KM-DL-I1 係 2.8 mm 4.0 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 IPC322SB-ADF28KM-DL-I1 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
