| 解碼格式 | Ultra 265,H.265,H.264 Smart Off：2 x 12MP@30, 2 x Smart Off：2 x 12MP@30, 2 x |
|---|
| Smart Off：2 x 12MP@30, 2 x | 4K@30, 4 x 4MP@30, 10 x 4K@30, 4 x 4MP@30, 8 x 4K@30, 4 x 4MP@30 1080P@30, 16 x 720P@30 |
|---|
| 解碼能力 | 1080P@30 |
|---|
| Smart On：2 x 4K@30, 4 x | Smart On：2 x 4K@30, 4 x Smart On：2 x 4K@30, 4 x 4MP@30 4MP@30, 8 x 1080P@30, 16 x 4MP@30, 8 x 1080P@30 720P@30 The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
|---|
| 音訊壓縮 | G.711A, G.711U |
|---|
| 入口頻寬 | 80 Mbps |
|---|
| 出口頻寬 | 80 Mbps |
|---|
| Max Remote Users | 128 |
|---|
| TCP/IP, P2P, | NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, |
|---|
| IPv6, IPv4, 802.1x, | UPnP |
|---|
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
|---|
| IP 視頻輸入 | 4-ch 8-ch 16-ch |
|---|
| RCA Audio Input | 1-ch |
|---|
| Ip Speaker | 32-ch |
|---|
| POS | All channels 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
|---|
| RCA Audio Output | 1-ch |
|---|
| Liveview Display | 1/4/6/8/9 1/4/6/8/9/16 1/4/6/8/9/16 |
|---|
| Corridor Mode Screen | 3/4 3/4/5/7/9/10 3/4/5/7/9/10/12/16 |
|---|
| 雙向語音 | 1-ch,RCA(Using the audio input and output) 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution) |
|---|
| 錄影解像度 | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
|---|
| Num of Concurrent Playback | 16-ch All channels (up to 8 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), SIP, UMD, Traffic Monitoring Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) Single Mode (Face Recognition), Single Mode (SIP), Single Mode (UMD), Single Mode (AcuSearch/AcuTrack), Modes cannot active simultaneously, only one mode can active at a |
|---|
| VCA Search | Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
|---|
| Acu Search Performance | All channels with UNV SIP/UMD Camera |
|---|
| Acu Track Performance | All channels with UNV SIP/UMD Camera |
|---|
| Up to 4-ch with UNV Face | Up to 8-ch with UNV Face Up to 8-ch with UNV Face |
|---|
| Detection Camera|Up to 1-ch | Detection Camera|Up to 1-ch Detection Camera|Up to 1-ch |
|---|
| with normal camera (UNV and | with normal camera (UNV and with normal camera (UNV and |
|---|
| Third-part brand, 1-ch 2MP) | Third-part brand, 1-ch 2MP) Third-part brand, 1-ch 2MP) |
|---|
| Search by Image | Support |
|---|
| Vehicle Number Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total Up to 2-ch with normal camera (UNV and Third-part brand, 2-ch 2MP, 1-ch 4MP) Up to 4-ch with normal camera (UNV and Third-part brand, 4-ch 2MP, 2-ch 4MP, 1-ch 4K) Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, A |
|---|
| GUI Language | Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
|---|
| SATA | 1 SATA Interfaces Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C.) |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet Interface |
|---|
| USB | Rear panel: 1 × USB2.0, 1 × USB3.0 |
|---|
| RS485 | N/A |
|---|
| RS232 | N/A |
|---|
| Alarm In | N/A |
|---|
| Alarm Out | N/A |
|---|
| 供電 | DC 12 V/2 A |
|---|
| Power Switch | N/A |
|---|
| 工作溫度 | -10 ℃ ~ + 55 ℃ (+14 ℉ ~ +131 ℉) |
|---|
| 工作濕度 | ≤ 90% RH (non-condensing) ≤ 12W |
|---|
| Weight (without HDD) | ≤ 2Kg (4.4lb) |
|---|
| Height | 1U |
|---|

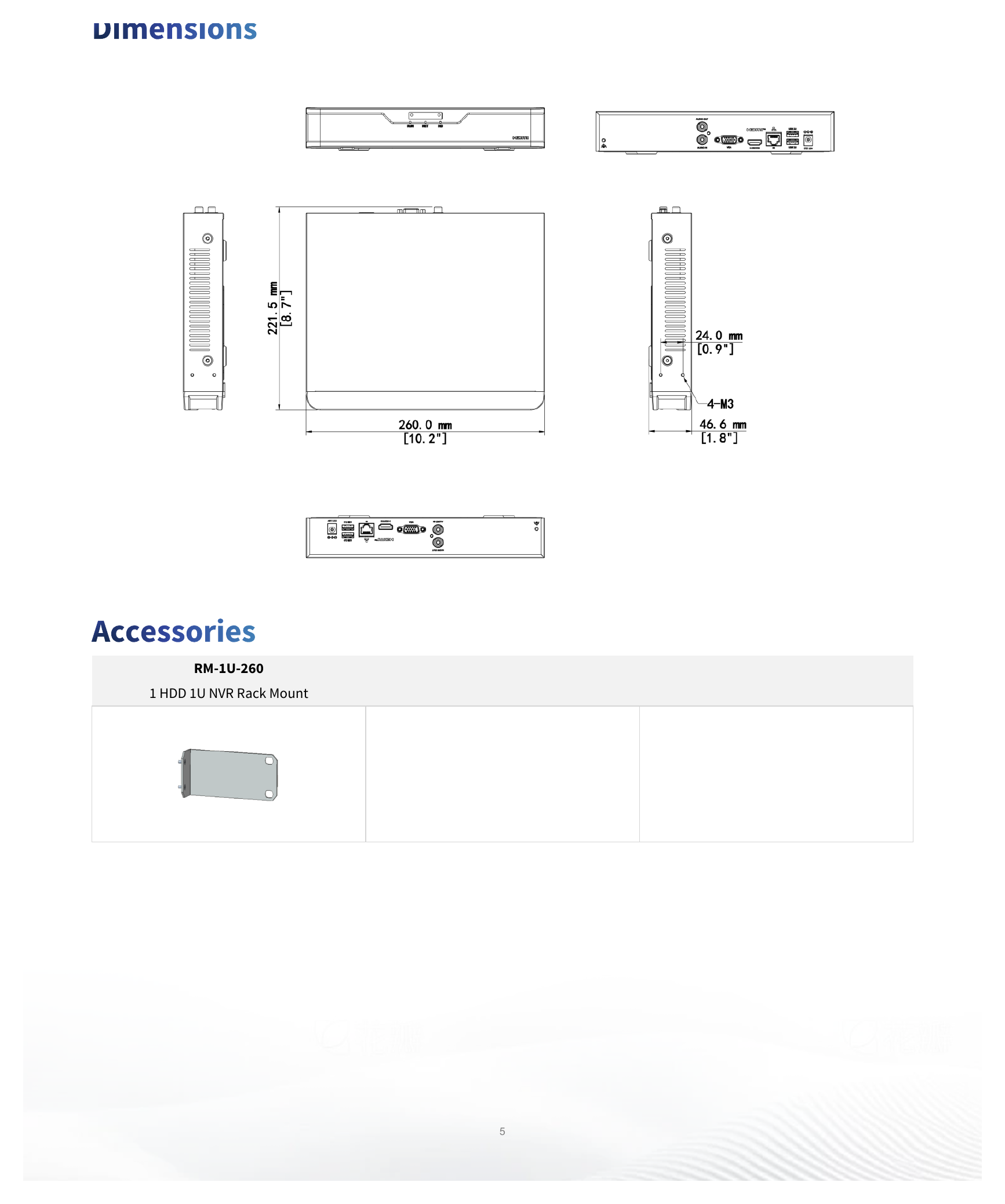

| 尺寸 | 260mm × 222mm × 47mm (10.2"×8.7"×1.8") |
|---|
| Certification | CE; FCC; UL; RoHS; WEEE |
|---|
| FCC | Part15 Subpart B |
|---|
| NDAA Compliant | Support RM-1U-260 1 HDD 1U NVR Rack Mount Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
|---|
