UNIVIEW NVR301-04B-P4-IQ CCTV攝影機安裝・保養

Name: UNIVIEW NVR301-04B-P4-IQ NVR301-B-P-IQ Series
Brand: Uniview
SKU: NVR301-04B-P4-IQ

產品簡介

Uniview NVR301-04B-P4-IQ 為NVR301-B-P-IQ Series，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 NVR301-04B-P4-IQ 香港價格連安裝報價。

解碼格式：Ultra 265,H.265,H.264 Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x
解碼能力：4MP@30 Smart On：2 x 4K@30, 4 x 4MP@30, 8 x Smart On：2 x 4K@3
音訊壓縮：G.711A, G.711U
入口頻寬：80 Mbps
出口頻寬：80 Mbps

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

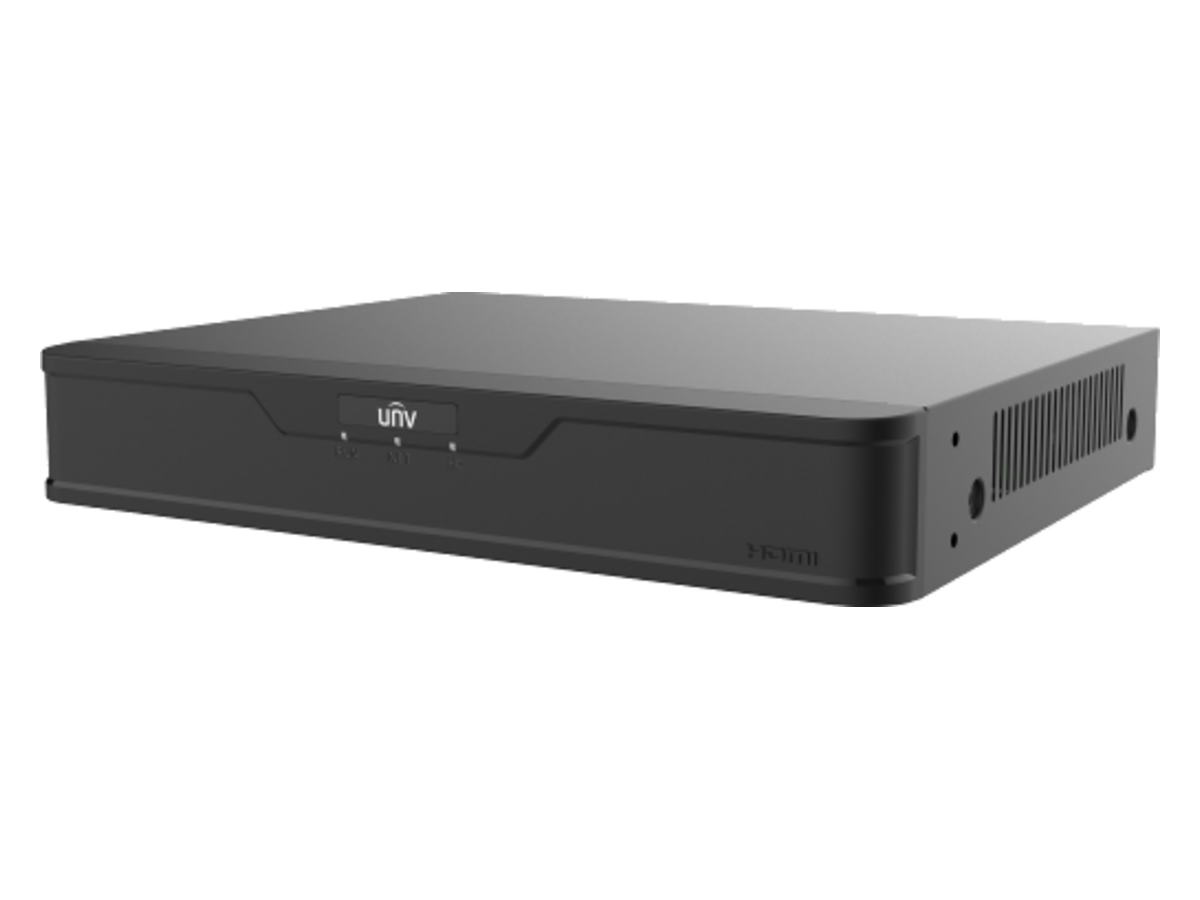

NVR301-04B-P4-IQ Uniview NVR301-B-P-IQ Series 產品圖片

詳細規格

解碼格式	Ultra 265,H.265,H.264 Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30
解碼能力	4MP@30 Smart On：2 x 4K@30, 4 x 4MP@30, 8 x Smart On：2 x 4K@30, 4 x 4MP@30 1080P@30 The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
音訊壓縮	G.711A, G.711U
入口頻寬	80 Mbps
出口頻寬	80 Mbps
Max Remote Users	128
TCP/IP, P2P,	NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP,
IPv6, IPv4, 802.1x,	UPnP
Browser (Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
IP 視頻輸入	4-ch 8-ch
RCA Audio Input	1-ch
Ip Speaker	32-ch
POS	All channels
Video Output	Support 1-ch HDMI, 1-ch VGA, HDMI and VGA simultaneous output 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output	1-ch
Liveview Display	1/4 1/4/6/8/9
Default Num of Live Screen	4 9
Corridor Mode Screen	3/4 3/4/5/7/9
Playback Screen	1/4 1/4/9 1/3
雙向語音	1-ch,RCA(Using the audio input and output) 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)
錄影解像度	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Num of Concurrent Playback	16-ch 4-ch 8-ch All channels (up to 8 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), SIP, UMD, Traffic Monitoring Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) Single Mode (Face Recognition), Single Mode (SIP), Single Mode (UMD), Single Mode (AcuSearch/AcuTrack), Modes cannot active simultaneously, only one mode can ac
VCA Search	Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
Acu Search Performance	All channels with UNV SIP/UMD Camera
Acu Track Performance	All channels with UNV SIP/UMD Camera
Up to 4-ch with UNV Face Detection	Up to 8-ch with UNV Face Detection
face detection by NVR	Camera\|Up to 1-ch with normal camera (UNV Camera\|Up to 1-ch with normal camera (UNV
and Third-part brand, 1-ch 2MP)	and Third-part brand, 1-ch 2MP)
Search by Image	Support
Vehicle Number Library	Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total Up to 2-ch with normal camera (UNV and Third-part brand, 2-ch 2MP, 1-ch 4MP) Up to 4-ch with normal camera (UNV and Third-part brand, 4-ch 2MP, 2-ch 4MP, 1-ch 4K) Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, A
GUI Language	Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
SATA	1 SATA Interfaces Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C.)
網絡接口	1 RJ45 10 M/100 M self-adaptive Ethernet Interface
USB	Rear panel: 1 × USB2.0, 1 × USB3.0
RS485	N/A
RS232	N/A
Alarm In	N/A
Alarm Out	N/A
供電	DC 48 V/1.35 A DC 52 V/1.8 A
Power Switch	N/A 4 RJ45 10 M/100 M self-adaptive Ethernet 8 RJ45 10 M/100 M self-adaptive Ethernet
接口	Interface
Max Power	Max 30W for single port,Max 50W in total Max 30W for single port,Max 75W in total
Supported Standard	IEEE 802.3at,IEEE 802.3af
工作溫度	-10 ℃ ~ + 55 ℃ (+14 ℉ ~ +131 ℉)
工作濕度	≤ 90% RH (non-condensing) ≤ 12W
Weight (without HDD)	≤ 0.8Kg (1.76lb) ≤ 2.7Kg (6.0lb)
Height	1U
尺寸	260mm × 222mm × 47mm (10.2"×8.7"×1.8")
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B
NDAA Compliant	Support RM-1U-260 1 HDD 1U NVR Rack Mount Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China
