UNIVIEW NVR301-04S3 CCTV攝影機安裝・保養

Name: UNIVIEW NVR301-04S3 NVR301-S3 Series
Brand: Uniview
SKU: NVR301-04S3

產品簡介

Uniview NVR301-04S3 為NVR301-S3 Series，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 NVR301-04S3 香港價格連安裝報價。

解碼格式：Ultra 265, H.265, H.264 1 x 4K@30, 4 x 5MP@25, 4 x 1 x 4K@30
解碼能力：4MP@25, 4 x 3MP@25, 6 x 4MP@25, 4 x 3MP@25 1080P@30, 8 x 720
音訊壓縮：G.711A, G.711U
入口頻寬：64 Mbps
出口頻寬：48 Mbps

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

NVR301-04S3 Uniview NVR301-S3 Series 產品圖片

詳細規格

解碼格式	Ultra 265, H.265, H.264 1 x 4K@30, 4 x 5MP@25, 4 x 1 x 4K@30, 4 x 5MP@25, 4 x 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x
解碼能力	4MP@25, 4 x 3MP@25, 6 x 4MP@25, 4 x 3MP@25 1080P@30, 8 x 720P@30, 16 x 1080P@30, 8 x 720P@30 D1@25 Decoding Capability The resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width Description
音訊壓縮	G.711A, G.711U
入口頻寬	64 Mbps
出口頻寬	48 Mbps
Remote Users	128
網絡協議	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, IPv4
Browser (Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
IP 視頻輸入	4-ch 8-ch 16-ch 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
Liveview Display	1/4 1/4/6/8/9 1/4/6/8/9/16
Corridor Mode Screen	3/4 3/4/5/7/9 3/4/5/7/9/10/12/16 1-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)
錄影解像度	8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF 4-ch 8-ch 16-ch
Smart by IPC	Total 4-ch(Face Detection, SIP, UMD)
VCA Search	Face Snapshot Search, Behavior Search
Capacity of Snapshot Records	2 millions records for face snapshot Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal 21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese
GUI Language	(Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian
SATA	1 SATA Interface Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size)
網絡接口	1 RJ45 10 M/100 M self-adaptive Ethernet Interface
USB	Rear panel: 2 × USB2.0
RS485	N/A
RS232	N/A
Alarm In	N/A
Alarm Out	N/A
供電	DC 12 V/2 A
工作溫度	-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
工作濕度	≤ 90% RH (non-condensing) ≤ 5W
Weight (without HDD)	≤ 0.98Kg (2.16lb)

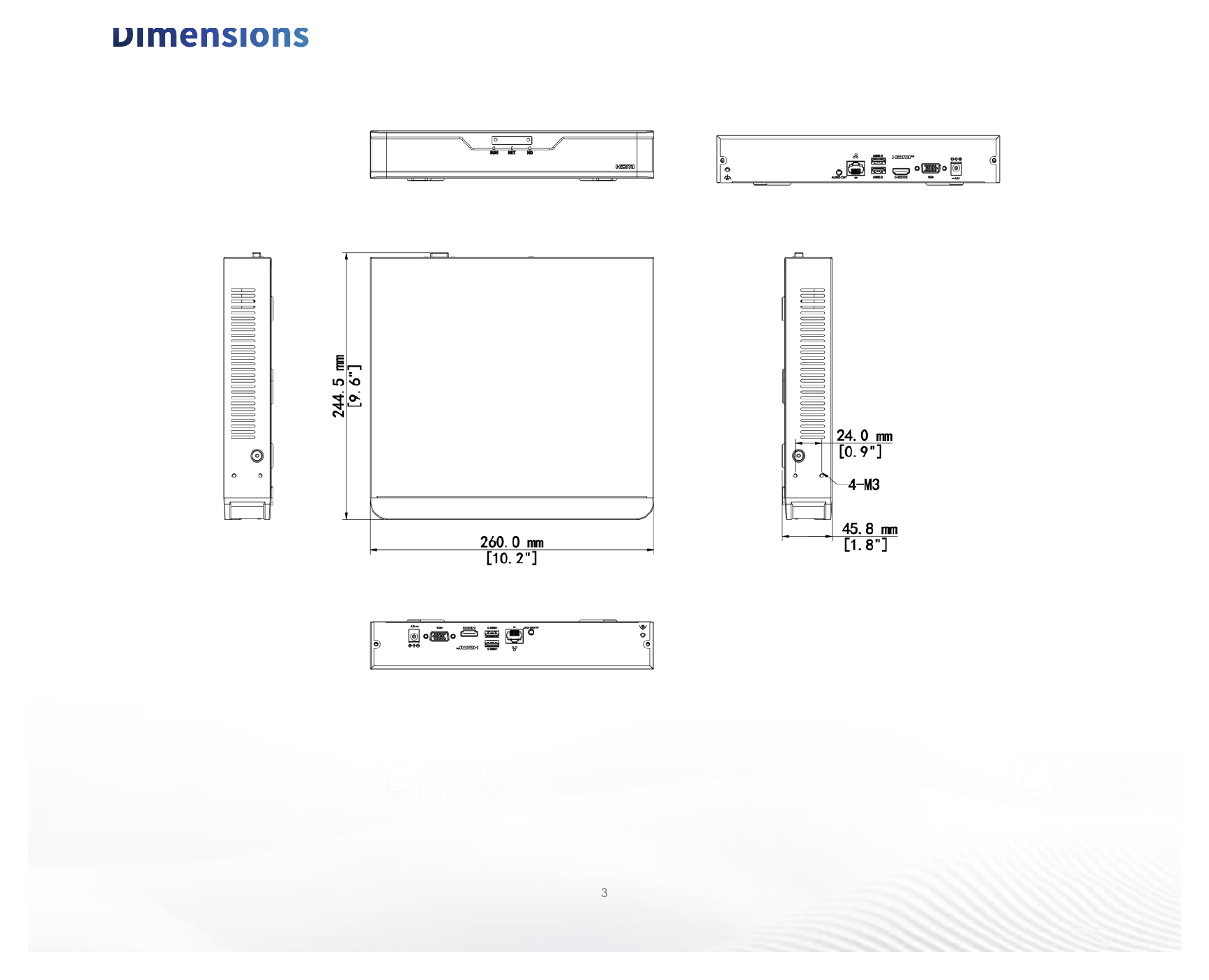

尺寸	260mm × 240mm × 46mm (10.2"×9.4"×1.8")
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B RM-1U-260 1 HDD 1U NVR Rack Mount Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China
