UNIVIEW NVR501-04B-P4-A CCTV攝影機安裝・保養

Name: UNIVIEW NVR501-04B-P4-A NVR501-04B-P4-A
Brand: Uniview
SKU: NVR501-04B-P4-A

產品簡介

Uniview NVR501-04B-P4-A 為NVR501-04B-P4-A，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 NVR501-04B-P4-A 香港價格連安裝報價。

解碼格式：Ultra 265, H.265, H.264 Ultra 265/H.265: 2 x 16MP@30, 2 x 12
音訊壓縮：G.711A, G.711U
入口頻寬：80 Mbps
出口頻寬：64 Mbps
Max Users Can Be Added：32

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

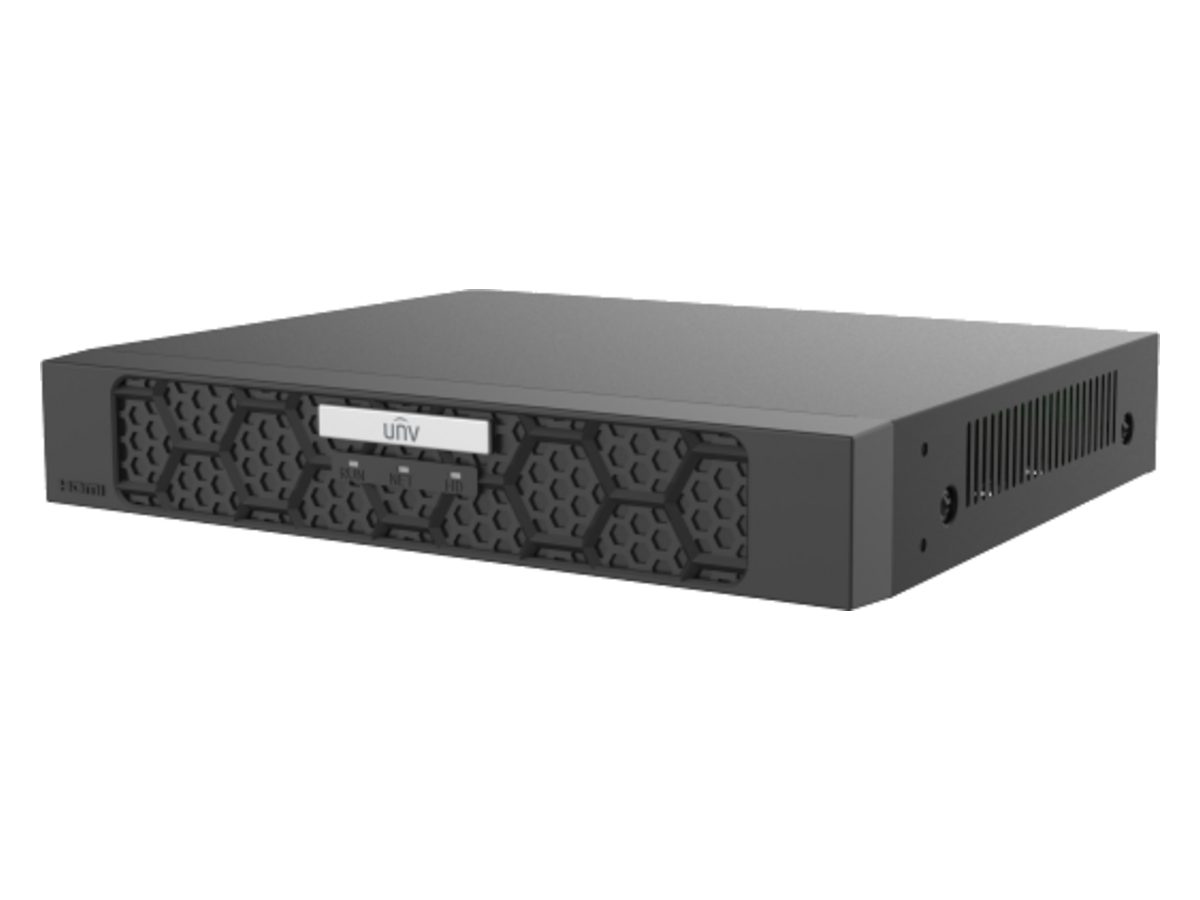

NVR501-04B-P4-A Uniview NVR501-04B-P4-A 產品圖片

詳細規格

解碼格式	Ultra 265, H.265, H.264 Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30 Decoding Capability H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30
音訊壓縮	G.711A, G.711U
入口頻寬	80 Mbps
出口頻寬	64 Mbps
Max Users Can Be Added	32
Remote Users	128
網絡協議	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6 Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)
IP 視頻輸入	4-ch
RCA Audio Input	1-ch HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCA Audio Output	1-ch
Liveview Display	1/4
Corridor Mode Screen	3/4
雙向語音	1-ch, RCA (Using the audio input and output) 4-ch snapshot, up to D1 resolution
錄影解像度	16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Smart by IPC	Total 4-ch(Face Detection, SIP, UMD) Face Snapshot Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection IP Conflict, Network Disconnected, Disk
GUI Language	Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
SATA	1 SATA Interface Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C.)
網絡接口	1 RJ45 10 M/100 M self-adaptive Ethernet Interface
USB	Rear panel: 1 × USB2.0, 1 × USB3.0
RS485	N/A
RS232	N/A
Alarm In	4-ch
Alarm Out	1-ch
供電	DC 48 V/1.35 A
Max Power	Max 30 W for single port, Max 50 W in total
Supported Standard	IEEE 802.3at, IEEE 802.3af
工作溫度	-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
工作濕度	≤ 90% RH (non-condensing) ≤ 10W
Weight (without HDD)	≤ 1.1Kg (2.43lb)

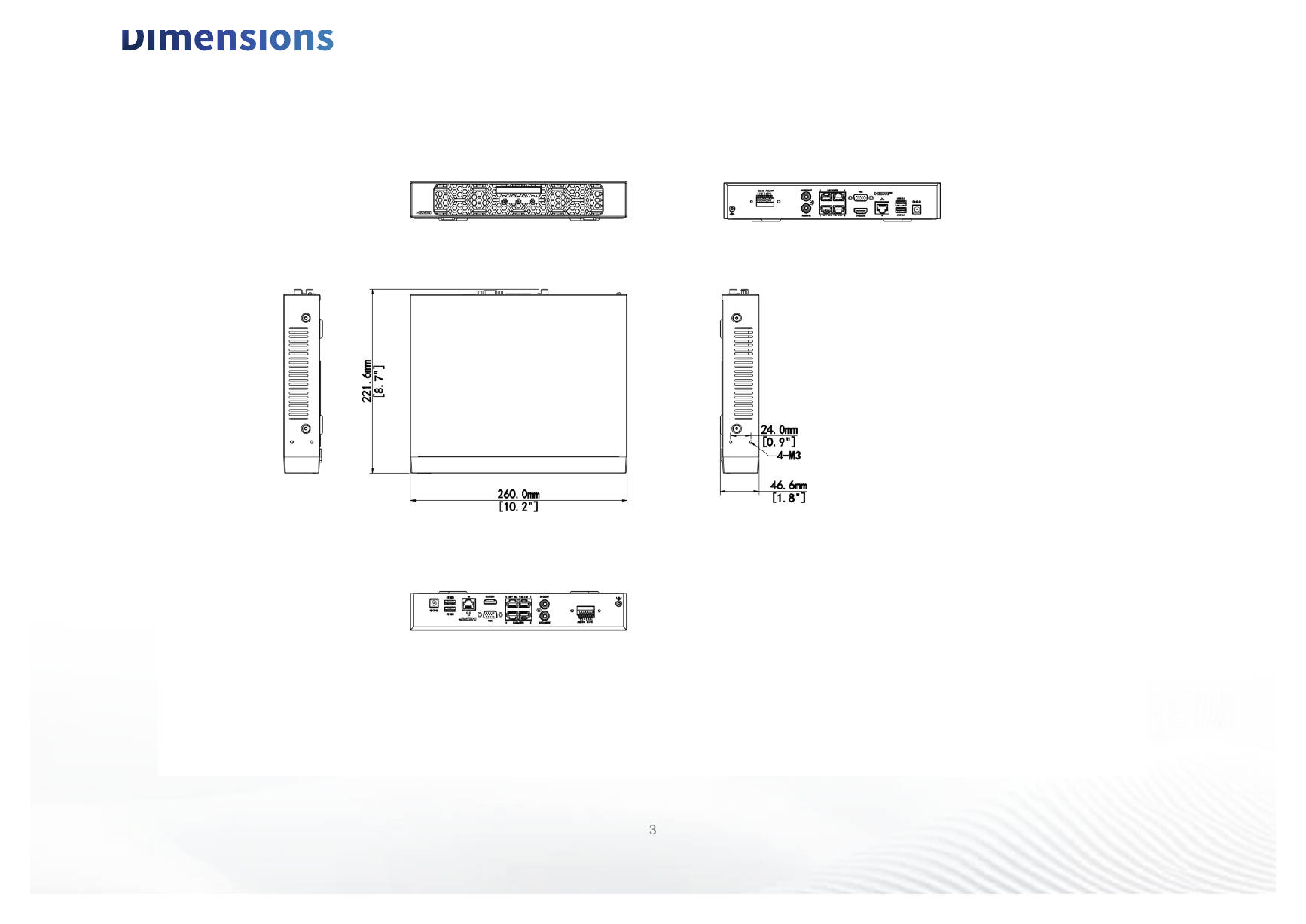

尺寸	260mm × 222mm × 47mm (10.2"×8.7"×1.8")
Certification	CE, FCC, UL, RoHS, WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B RM-1U-260 1 HDD 1U NVR Rack Mount Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China
