| 解碼格式 | Ultra 265, H.265, H.264 |
|---|
| Smart Off: | Smart Off: |
|---|
| H265: 2 x 32MP@30, 4 x 16MP@30, 5 x | H265: 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8x 4K@30, 10x 6MP@30, 12x 12MP@30, 8x 4K@30, 10x 6MP@30, 12x 5MP@30, 16 x 4MP@30, 16 x 3MP@30, 16 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30 1080P@30 |
|---|
| H264: 2 x 32MP@30, 4 x 16MP@30, 5 x | H264: 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8x 4K@30, 10x 6MP@30, 12x 12MP@30, 8x 4K@30, 10x 6MP@30, 12x 5MP@30, 16 x 4MP@30, 16 x 3MP@30, 16 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30 1080P@30 |
|---|
| Smart On: When Smart by NVR on, 16 x | Smart On: When Smart by NVR on, 16 x 1080P@30 decoding capacity will be 1080P@30 decoding capacity will be |
|---|
| consumed. | consumed. The resolution of each channel cannot exceed 8192 pixels in length or width |
|---|
| 音訊壓縮 | G.711A, G.711U |
|---|
| 入口頻寬 | 192 Mbps |
|---|
| 出口頻寬 | 192 Mbps |
|---|
| Max Users Can Be Added | 32 |
|---|
| Max Remote Users | 128 |
|---|
| TCP/IP, P2P, SMTP, NFS, RTSP, | UPnP, NTP, DHCP, PPPoE, HTTP, DNS, DDNS, IPv6, IPv4, HTTPS |
|---|
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
|---|
| Browser (Plugin-Free) | Chrome 57+, Edge 16+, Firefox 58+, Safari 11+ |
|---|
| IP 視頻輸入 | 16-ch 32-ch |
|---|
| BNC Audio Input | N/A |
|---|
| RCA Audio Input | 1-ch |
|---|
| Ip Speaker | 16-ch |
|---|
| POS | All channels |
|---|
| Video Output | Support 1-ch HDMI, 1-ch VGA, HDMI and VGA simultaneous output |
|---|
| HDMI 輸出 | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1280 × 720/60 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
|---|
| HDMI Standard | HDMI1.4 |
|---|
| BNC Audio Output | N/A |
|---|
| RCA Audio Output | 1-ch |
|---|
| Liveview Display | 1/4/6/8/9/16 1/4/6/8/9/16/25/32 |
|---|
| Default Num of Live Screen | 16 32 |
|---|
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 3/4/5/7/9/10/12/16/32 |
|---|
| Playback Screen | 1/4/9/16 1/3 |
|---|
| 雙向語音 | 1-ch, RCA (Using the audio input and output) 16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution) |
|---|
| 錄影解像度 | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
|---|
| Num of Concurrent Playback | 32-ch 16-ch All channels (up to 16 images/s in total) Face Detection, Face Comparison, Vehicle Detection |
|---|
| Smart by IPC | (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring, People Countingting Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Video Metadata, Plate Comparison Single Mode (SIP), Mixed Mode (Face Recognition+Mixed-Traffic Dection+AcuSearch/AcuTrack), Modes cannot active simultaneously, only one mode can active at a time. Face Snapshot Search, Face Comparison Sea |
|---|
| VCA Search | Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, SmartSearch+, AcuSearch, AcuTrack, SeekFree All channels with UNV SIP/UMD Camera, Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K) All channels with UNV SIP/UMD Camera, Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K) |
|---|
| SeekFree Language | English All channels with UNV Face Detection Camera, Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K) |
|---|
| Search by Image | Support |
|---|
| SIP by NVR with normal | Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K) Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K) Motor Vehicle: Vehicle Type, Vehicle Color, Vehicle Brand, Direction, Plate Type, Plate Color, Non-Motor Vehicle: Non-Motor Vehicle Type, Direction, Gender, Age, Upper Garment Length, Upper Garment Color, Human Body: Gender, |
|---|
| Vehicle Number Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total 2 millions records for face snapshot|2 millions 2 millions records for face snapshot|2 millions |
|---|
| Capacity of Snapshot Records | records for SIP|2 millions records for vehicle records for vehicle snapshot|2 millions records |
|---|
| snapshot | for SIP Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Audio Detection, Alarm Input IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded |
|---|
| SATA | 2 SATA Interfaces Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C.) |
|---|
| Disk Group | Support |
|---|
| Redundant Storage | Support |
|---|
| Disk Array Type | RAID 1 |
|---|
| Hot Swap | N/A |
|---|
| 網絡接口 | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
|---|
| Network Working Mode | Muli-access, load balance, network fault-tolerance |
|---|
| USB | Front panel: 1 × USB2.0, Rear panel: 1 × USB2.0, 1 × USB3.0 |
|---|
| RS485 | 1 |
|---|
| RS232 | N/A |
|---|
| Alarm In | 4-ch |
|---|
| Alarm Out | 1-ch |
|---|
| eSATA | N/A |
|---|
| miniSAS | N/A |
|---|
| 電源輸出 | N/A |
|---|
| Extension Board | N/A |
|---|
| Buzzer | Support |
|---|
| 供電 | DC 12 V/3 A |
|---|
| Power Switch | N/A |
|---|
| Redundant Power Supply | N/A |
|---|
| PoE Interface | N/A |
|---|
| Max Power | N/A |
|---|
| Supported Standard | N/A |
|---|
| 工作溫度 | -10 ℃ to 55 ℃ (14 ℉ to 131 ℉) |
|---|
| 工作濕度 | ≤ 90% RH (non-condensing) ≤25W |
|---|
| Heat Dissipation | Fan, Radiator |
|---|
| Weight (without HDD) | 1.87 KG |
|---|

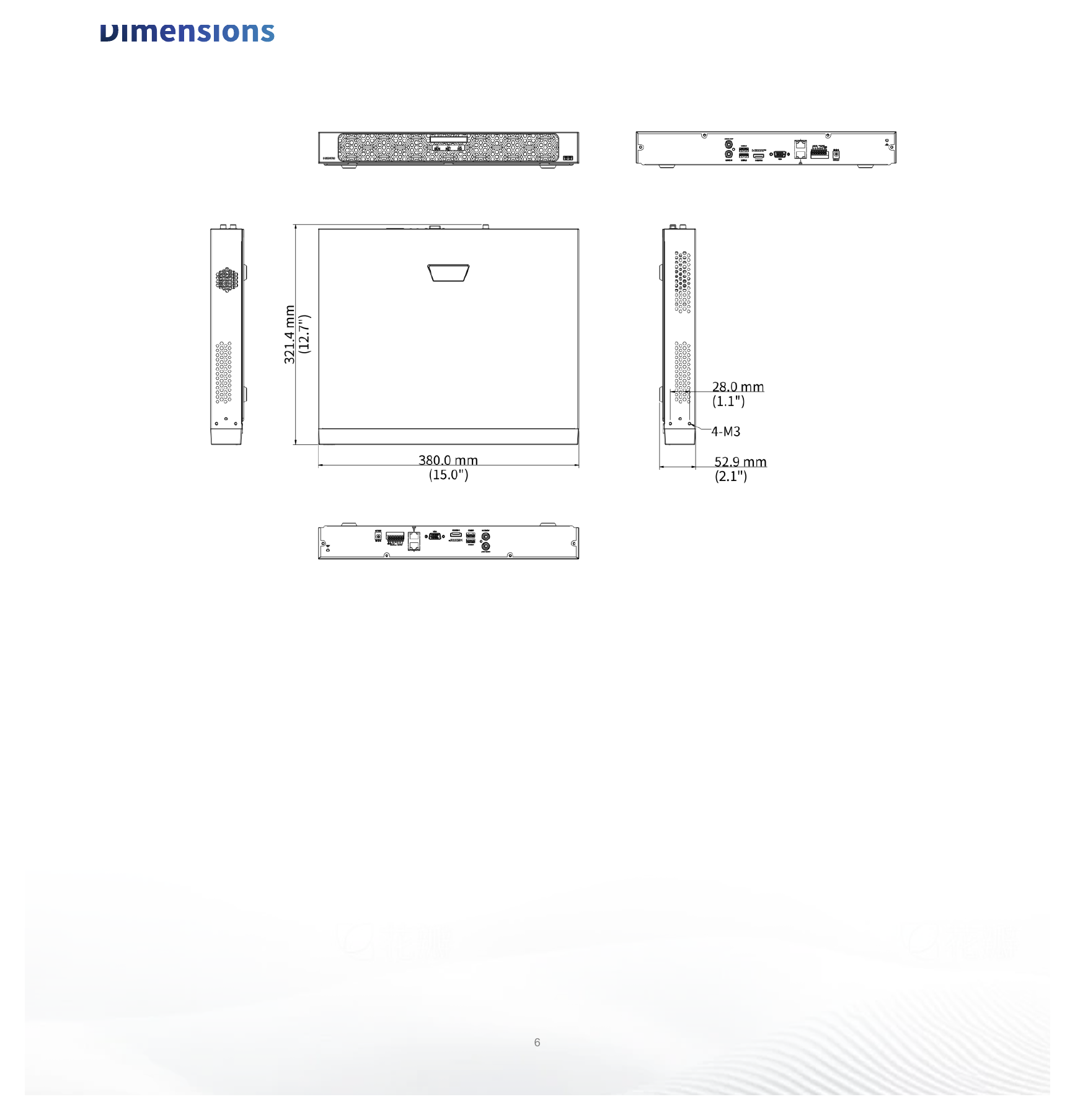

| Height | 1U 380mm × 322.4mm × 53mm (15.0" × 12.7" × 380mm × 322.4mm × 53mm (15.0" × 12.7" × 2.1" ) 2.1" ) 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, |
|---|
| GUI Language | Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
|---|
| Certification | CE; FCC; UL; RoHS; WEEE |
|---|
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130 |
|---|
| FCC | Part15 Subpart B |
|---|
| Preset Num | 32 |
|---|
| N+1 Hot Spare | N/A |
|---|
| Fisheye Dewarping by IPC | Support N/A |
|---|
| ANR | Support |
|---|
| Dual-lens Cameras | Support |
|---|
| Downlink ONVIF | Support (Profile S) |
|---|
| Box-Dome Linkage | Support |
|---|
| Uplink ONVIF | N/A Support |
|---|
| UCS (Web socket) | Support |
|---|
| NAS | Support |
|---|
| Ucode Basic Mode | Support |
|---|
| Ucode Advanced Mode | Support |
|---|
| Output Mode | N/A |
|---|
| NDAA Compliant | Support |
|---|
| Decoding Capability (1080P) | 16 Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
|---|
