Uniview NVR502-32E-IX-G 為NVR502-32E-IX-G，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 NVR502-32E-IX-G 香港價格連安裝報價。
| 解碼格式 | Ultra 265, H.265, H.264 Smart Off: H265: 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8x 4K@30, 10x 6MP@30, 12x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30 H264: 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8x 4K@30, 10x 6MP@30, 12x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30 Smart On: When Smart by NVR on, 16 x 1080P@30 decoding capacity will be consumed. The resolution of each channel cannot exceed |
|---|---|
| 音訊壓縮 | G.711A, G.711U |
| 入口頻寬 | 192 Mbps |
| 出口頻寬 | 192 Mbps |
| Max Users Can Be Added | 32 |
| Max Remote Users | 128 |
| TCP/IP, P2P, SMTP, NFS, RTSP, | UPnP, NTP, DHCP, PPPoE, HTTP, DNS, DDNS, SNMP, IPv6, IPv4, HTTPS |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Browser (Plugin-Free) | Chrome 57+, Edge 16+, Firefox 58+, Safari 11+ |
| IP 視頻輸入 | 32-ch |
| RCA Audio Input | 1-ch |
| Ip Speaker | 16-ch |
| POS | All channels Support 2-ch HDMI, 2-ch VGA, HDMI1 and VGA1 simultaneous output, HDMI2 and VGA2 simultaneous output, HDMI1/VGA1 and HDMI2/VGA2 independent output |
| HDMI 輸出 | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1280 × 720/60 Hz, |
| VGA 輸出 | 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| HDMI Standard | HDMI1.4 |
| RCA Audio Output | 2-ch |
| Liveview Display | 1/4/6/8/9/16/25/32 |
| Default Num of Live Screen | 32 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| Playback Screen | 1/4/9/16 1/3 |
| 雙向語音 | 1-ch, RCA (Using the audio input and output) 16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution) |
| 錄影解像度 | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Num of Concurrent Playback | 32-ch 16-ch All channels (up to 16 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring, People Counting Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Behavior Analysis, Elevator |
| Smart by NVR | Entrance Detection, Illegally Parked Motor Vehicle, Evacuation Route Obstruction, People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Plate Comparison Mixed Mode (SIP+Behavior Analysis+People Counting), Mixed Mode (Face |
| Smart by NVR Analyzer Mode | Recognition+Mixed-Traffic Dection+AcuSearch/AcuTrack), Modes cannot active simultaneously, only one mode can active at a time. Face Snapshot Search, Face Comparison Search, Behavior Search, Motor Vehicle Search, |
| VCA Search | Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, SmartSearch+, AcuSearch, AcuTrack, SeekFree All channels with UNV SIP/UMD Camera, Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K) All channels with UNV SIP/UMD Camera, Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K) All channels with U |
| SeekFree Language | English All channels with UNV Face Detection Camera, Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K) |
| Search by Image | Support Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K) |
| analysis with normal cameras | Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K) No Helmet Detection, No Chef Hat Detection, No Work Clothes Detection, Smoking Detection, |
| analysis Type | Smoke and Fire Detection, Calling Detection, No Mask Detection, Rat Detection, Long Stay Detection, Fall Detection, Fight Detection, Absence Detection, Climbing Detection, Sleep on Duty Detection, People Counting, Using Mobile Phone Detection, People Gathering, People Dispersion, Quick Moving, No Reflective Clothing Detection Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-c |
| Vehicle Number Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total 2 millions records for face snapshot, 2 millions records for behavior analysis and SIP, 2 millions records for vehicle snapshot Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Audio Detection, Alarm Input IP Conf |
| SATA | 2 SATA Interfaces Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C.) |
| Disk Group | Support |
| Redundant Storage | Support |
| 網絡接口 | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| Network Working Mode | Muli-access, load balance, network fault-tolerance |
| USB | Front panel: 1 × USB2.0, Rear panel: 2 × USB3.0 |
| RS485 | 1 |
| RS232 | 1 |
| Alarm In | 16-ch |
| Alarm Out | 4-ch |
| 電源輸出 | 12 V |
| Buzzer | Support |
| 供電 | DC 12 V/5 A |
| 工作溫度 | -10 ℃ to 55 ℃ (14 ℉ to 131 ℉) |
| 工作濕度 | ≤ 90% RH (non-condensing) ≤25W |
| Heat Dissipation | Fan, Radiator |
| Weight (without HDD) | 1.87 KG |
| Height | 1U |

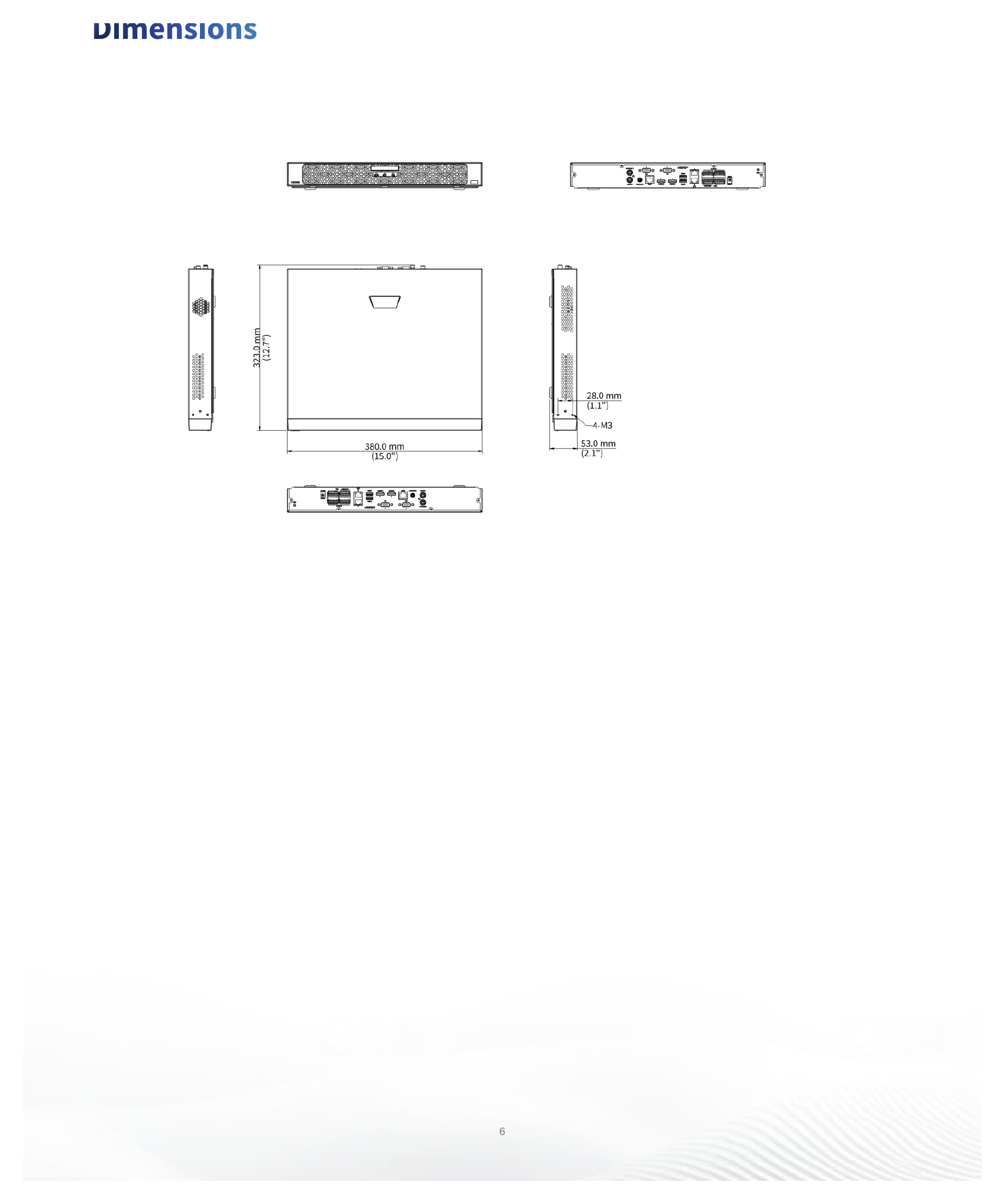

| 尺寸 | 380mm × 322.4mm × 53mm (15.0" × 12.7" × 2.1" ) 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, |
| GUI Language | Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
| Downlink ONVIF | Support (Profile S) |
| Uplink ONVIF | N/A |
| NAS | Support |
| Ucode Basic Mode | Support |
| Ucode Advanced Mode | Support |
| NDAA Compliant | Support Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →
380mm × 322.4mm × 53mm (15.0" × 12.7" × 2.1" ) 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnames
NVR502-32E-IX-G Uniview NVR502-32E-IX-G亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，NVR502-32E-IX-G 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：出口頻寬方面，NVR502-32E-IX-G 係 192 Mbps，XVR308-32Q3 係 160Mbps；IP 視頻輸入方面，NVR502-32E-IX-G 係 32-ch，XVR308-32Q3 係 4-ch；RCA Audio Output方面，NVR502-32E-IX-G 係 2-ch，XVR308-32Q3 係 1-ch。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 XVR308-32Q3 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 NVR502-32E-IX-G 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 NVR502-32E-IX-G Uniview NVR502-32E-IX-G供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：鑽石山CCTV 閉路電視安裝、長沙灣CCTV 閉路電視安裝、青衣CCTV 閉路電視安裝、香港仔CCTV 閉路電視安裝、黃大仙CCTV 閉路電視安裝、上水CCTV 閉路電視安裝、中環CCTV 閉路電視安裝、九龍城CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 NVR502-32E-IX-G 香港價格連安裝報價。
