UNIVIEW NVR504-16B-P16 CCTV攝影機安裝・保養

Name: UNIVIEW NVR504-16B-P16 NVR504-B-P Series
Brand: Uniview
SKU: NVR504-16B-P16

產品簡介

Uniview NVR504-16B-P16 為NVR504-B-P Series，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 NVR504-16B-P16 香港價格連安裝報價。

解碼格式：Ultra 265, H.265, H.264 Ultra 265/H.265: 2 x 16MP@30, 2 x 12
解碼能力：H.264: 2 x 16MP(4800*2688)@30, 2 x H.264: 2 x 16MP(4800*2688
音訊壓縮：G.711A, G.711U
入口頻寬：320 Mbps
出口頻寬：160 Mbps

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

NVR504-16B-P16 Uniview NVR504-B-P Series 產品圖片

詳細規格

解碼格式	Ultra 265, H.265, H.264 Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 3MP@30, 16 x 1080P@30
解碼能力	H.264: 2 x 16MP(48002688)@30, 2 x H.264: 2 x 16MP(48002688)@30, 2 x 12MP@30, 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 3MP@30, 14 x 1080P@30, 16 x 720P@30 720P@30, 32 x D1 The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width, For VGA/HDMI independent output, the VGA live video is outpu
音訊壓縮	G.711A, G.711U
入口頻寬	320 Mbps
出口頻寬	160 Mbps
Remote Users	128
TCP/IP, P2P,	UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP,
RTSP, 802.1x,	IPv6, IPv4
Browser (Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
IP 視頻輸入	16-ch 32-ch
RCA Audio Input	1-ch 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output	1-ch
Liveview Display	1/4/6/8/9/16 1/4/6/8/9/16/25/32
Corridor Mode Screen	3/4/5/7/9/10/12/16 3/4/5/7/9/10/12/16/32
雙向語音	1-ch, RCA (Using the audio input and output) 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)
錄影解像度	16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF 16-ch All channels (up to 8 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
GUI Language	Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
SATA	4 SATA Interfaces Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C.)
Disk Group	Support
Redundant Storage	Support
Disk Array Type	RAID 1, 5
網絡接口	1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB	Front panel: 1 × USB2.0, Rear panel: 1 × USB3.0
RS485	1
RS232	N/A
Alarm In	16-ch
Alarm Out	4-ch
供電	AC 100 to 240 V
Power Switch	Support
PoE Interface	16 RJ45 10 M/100 M self-adaptive Ethernet Interface
Max Power	Max 30 W for single port, Max 150 W in total
Supported Standard	IEEE 802.3at, IEEE 802.3af
工作溫度	-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
工作濕度	≤ 90% RH (non-condensing) ≤ 20W

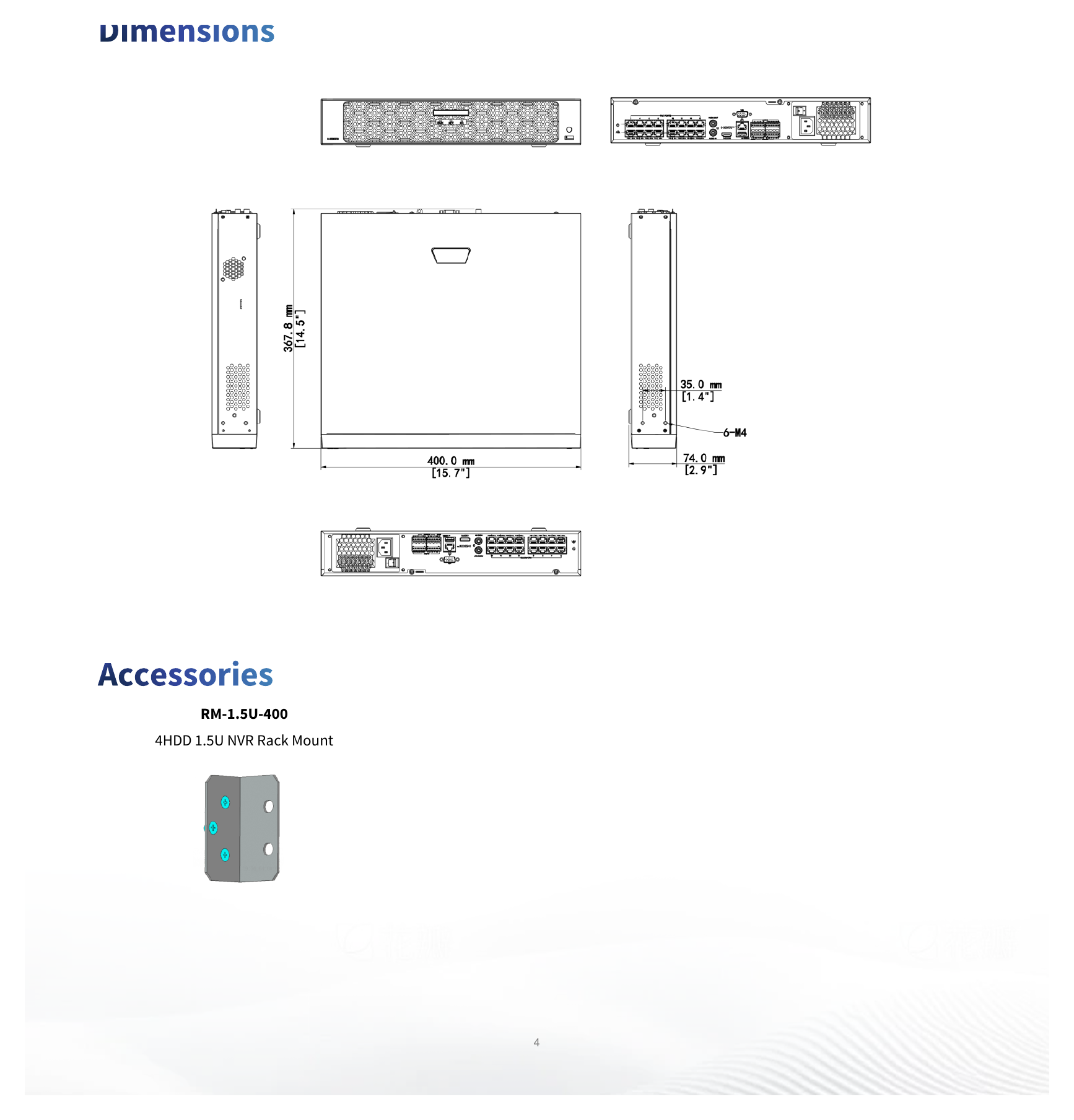

Weight (without HDD)	≤ 4Kg (8.82lb) 400mm × 368mm × 74mm (15.7"×14.5"×2.9")
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B RM-1.5U-400 4HDD 1.5U NVR Rack Mount http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China (Zhejiang) Pilot Free Trade Zone, China Uniview cannot be held responsible for any such errors and reserves the right to change the contents of this documen
