UNIVIEW NVR508-16B CCTV攝影機安裝・保養

Name: UNIVIEW NVR508-16B NVR508-B Series
Brand: Uniview
SKU: NVR508-16B

產品簡介

Uniview NVR508-16B 為NVR508-B Series，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 NVR508-16B 香港價格連安裝報價。

解碼格式：Ultra 265, H.265, H.264 Ultra 265/H.265: 2 x Ultra 265/H.265
Ultra 265/H.265: 2 x：16MP@30, 2 x 12MP@30, 4 x 16MP@30, 2 x 12MP@30, 4 x 16MP@30,
解碼能力：H.264: 2 x H.264: 2 x 16MP(4800*2688)@30, 2 x 16MP(4800*2688
音訊壓縮：G.711A, G.711U
入口頻寬：320 Mbps

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

解碼格式	Ultra 265, H.265, H.264 Ultra 265/H.265: 2 x Ultra 265/H.265: 2 x
Ultra 265/H.265: 2 x	16MP@30, 2 x 12MP@30, 4 x 16MP@30, 2 x 12MP@30, 4 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4K@30, 6 x 5MP@30, 8 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 4MP@30, 10 x 3MP@30, 16 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25, 36 1080P@30, 32 x 960P@25 1080P@30 x 720P@30, 64 x D1 H.264: 2 x
解碼能力	H.264: 2 x H.264: 2 x 16MP(48002688)@30, 2 x 16MP(48002688)@30, 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 12MP@30, 2 x 4K@30, 4 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 5MP@30, 6 x 4MP@30, 8 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 28 x 3MP@30, 14 x 1080P@30, 16 x 3MP@30, 14 x 1080P@30, 28 x 960P@25, 30 x 720P@30, 32 x 960P@30 960P@25, 30 x 720P@30, 64 x The resolution
音訊壓縮	G.711A, G.711U
入口頻寬	320 Mbps
出口頻寬	160 Mbps
Remote Users	128
TCP/IP, P2P,	UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP,
RTSP, 802.1x,	IPv6, IPv4
Browser (Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
IP 視頻輸入	16-ch 32-ch 64-ch
RCA Audio Input	1-ch 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output	1-ch Simultaneous Output: VGA:1/4/6/8/9/16/25/36/64,HD
Liveview Display	1/4/6/8/9/16 1/4/6/8/9/16/25/36 MI:1/4/6/8/9/16/25/36/64, Independent Output: VGA:1/4/6/8/9/16/25/32,HDMI: 1/4/6/8/9/16/25/32
Corridor Mode Screen	3/4/5/7/9/10/12/16 3/4/5/7/9/10/12/16/32 3/4/5/7/9/10/12/16/32
雙向語音	1-ch, RCA (Using the audio input and output) 4-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution)
錄影解像度	16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF 16-ch All channels (up to 8 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
GUI Language	Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
SATA	8 SATA Interfaces Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C.)
Disk Group	Support
Redundant Storage	Support
Disk Array Type	RAID 1, 5
網絡接口	2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB	Front panel: 2 × USB2.0, Rear panel: 1 × USB3.0
RS485	1
RS232	N/A
Alarm In	16-ch
Alarm Out	4-ch
供電	AC 100 to 240 V
Power Switch	Support
工作溫度	-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
工作濕度	≤ 90% RH (non-condensing) ≤ 25W

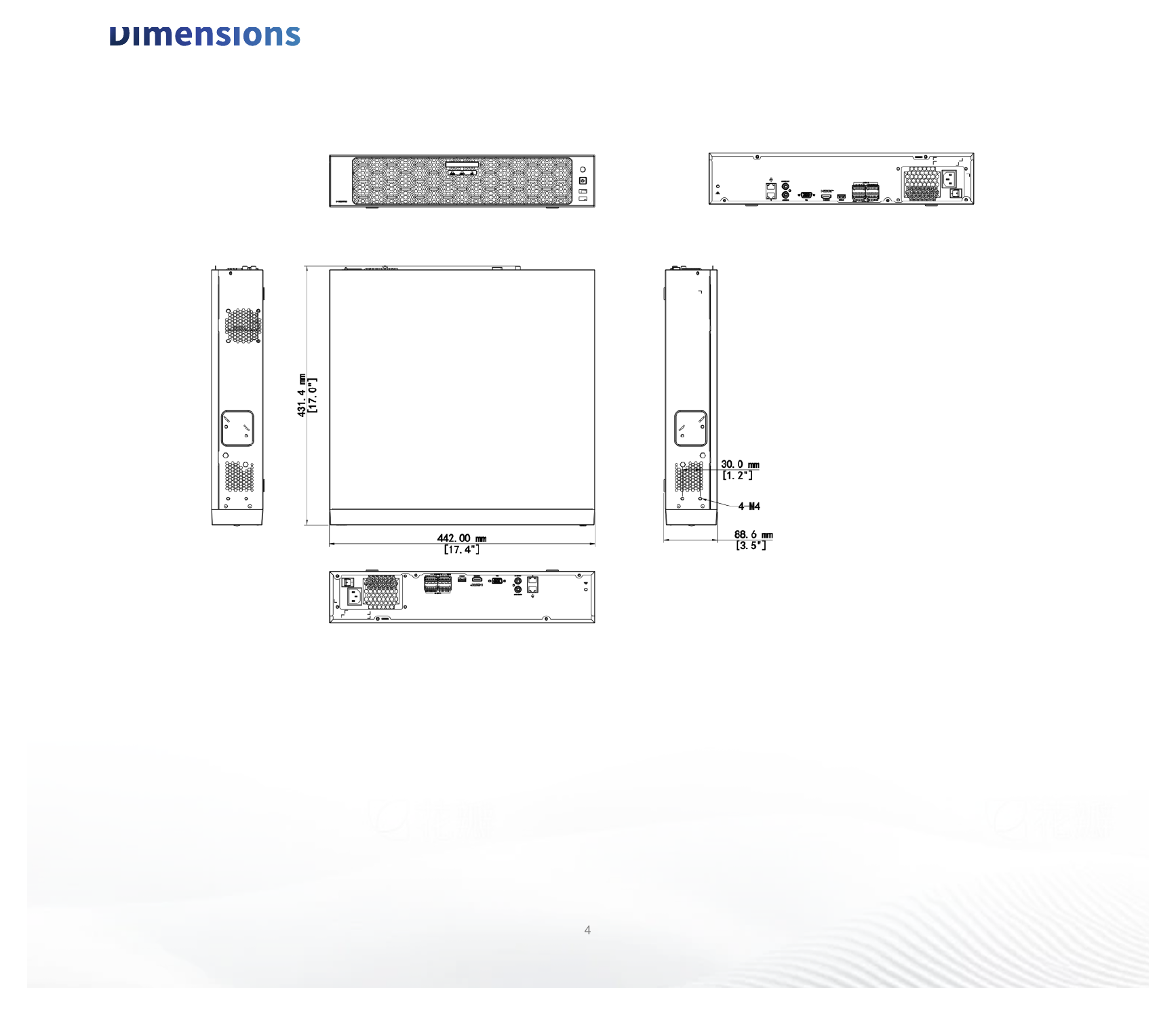

Weight (without HDD)	≤ 5.5Kg (12.13lb) 442mm × 431.4mm × 88.6mm 442mm × 426mm × 89mm 442mm × 426mm × 89mm (17.4"×17.0"×3.5") (17.4"×16.8"×3.5") (17.4"×16.8"×3.5")
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B FL-2U 4 HDDs & 8 HDDs 2U NVR Rack Mount Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China
