UNIVIEW NVR516-64 CCTV攝影機安裝・保養

Name: UNIVIEW NVR516-64 NVR516 Series
Brand: Uniview
SKU: NVR516-64

產品簡介

Uniview NVR516-64 為NVR516 Series，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 NVR516-64 香港價格連安裝報價。

解碼格式：Ultra 265, H.265, H.264 Smart off: H265/H264: 2 x 16MP@30, 2
解碼能力：32 x 720P@30, 64 x D1 Smart on:
When Smart by NVR on,：the decoding capacity is same as Smart off. The resolution o
音訊壓縮：G.711A, G.711U
入口頻寬：384 Mbps 512 Mbps

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

解碼格式	Ultra 265, H.265, H.264 Smart off: H265/H264: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30,
解碼能力	32 x 720P@30, 64 x D1 Smart on:
When Smart by NVR on,	the decoding capacity is same as Smart off. The resolution of each channel cannot exceed 4096 pixels in length or width
音訊壓縮	G.711A, G.711U
入口頻寬	384 Mbps 512 Mbps
出口頻寬	384 Mbps
Max Remote Users	128
TCP/IP, P2P,	UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4
Browser (Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
IP 視頻輸入	64-ch 128-ch
BNC Audio Input	1-ch 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz (HDMI audio output is not supported) 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
BNC Audio Output	1-ch VGA:1/4/6/8/9/16/25/36, HDMI1/HDMI2:1/4/6/8/9/16/25/36/64
Corridor Mode Screen	3/4/5/7/9/10/12/16/32
雙向語音	1-ch, BNC(Using the audio input and output)
FTP/Schedule/Event	Full-ch snapshot (max. 4000 × 3000 video resolution, with snapshot resolution same as the video
Snapshot	resolution)
錄影解像度	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF 16-ch
VCA Detection by IPC	Face Detection, Face Comparison, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring All channels (up to 32 images/s in
Alert Alarm	Low, Hard Disk Full, Recording/Snapshot Abnormal, High CPU Temperature, High Motherboard Temperature, Array Damaged, Array Degraded
SATA	16 SATA Interfaces
容量	Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
Disk Array Type	RAID 0, 1, 5, 6, 10, 50, 60
Hot Swap	Support
網絡接口	4 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface, 2 1000 M SFP Ethernet Interface
USB	Rear panel: 4 × USB3.0
RS485	1
RS232	1
Alarm In	24-ch
Alarm Out	8-ch
eSATA	1
miniSAS	2
電源輸出	12 V
供電	AC 100 to 240 V
Power Switch	Support
Redundant Power Supply	Support
工作溫度	-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
工作濕度	≤ 90% RH (non-condensing) ≤ 50W
Weight (without HDD)	≤ 10Kg (22.05lb)

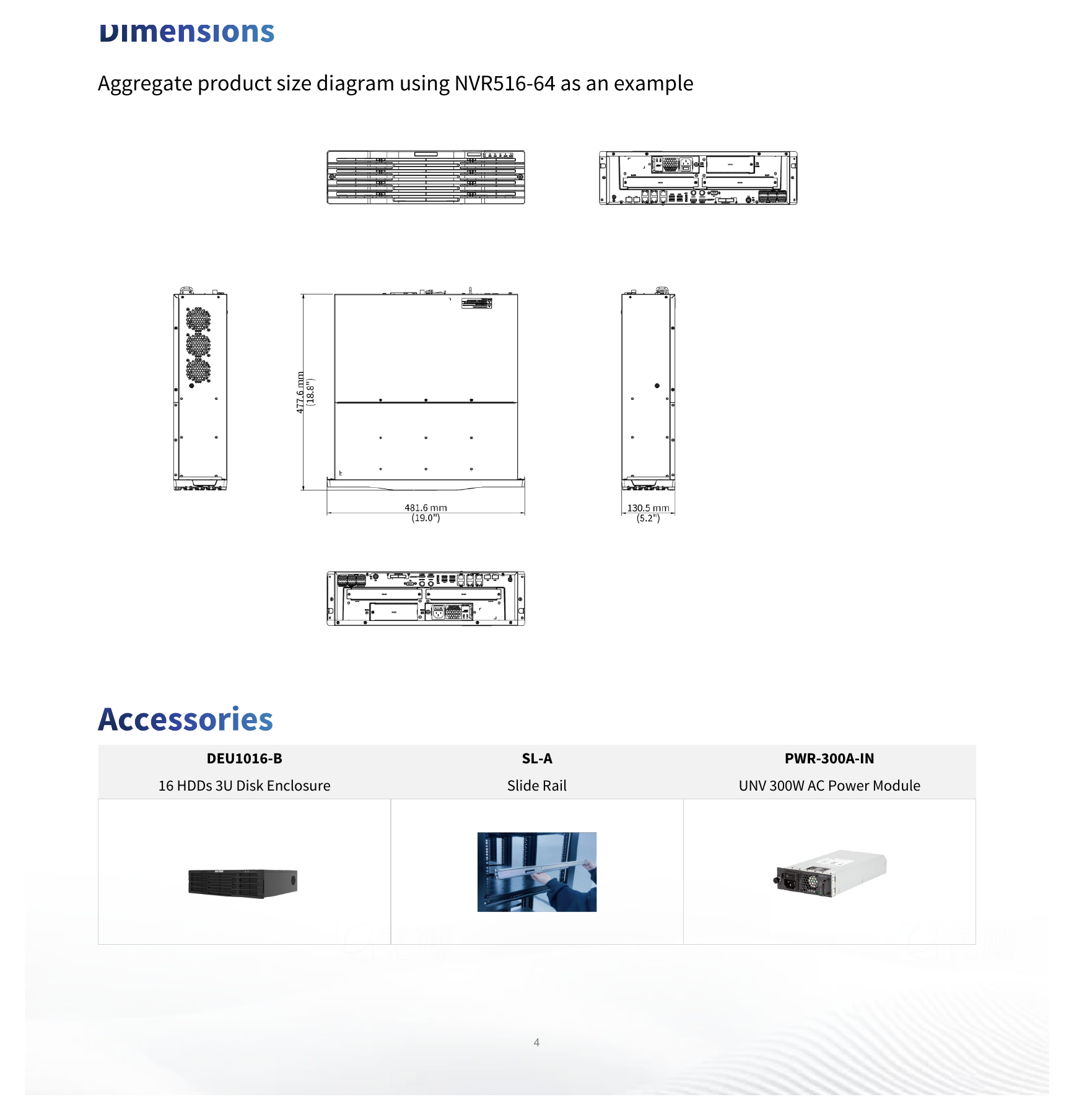

尺寸	482mm ×477mm × 131mm (19.0"×18.8"×5.2") 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish,
GUI Language	Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B
DEU1016-B	SL-A PWR-300A-IN 16 HDDs 3U Disk Enclosure Slide Rail UNV 300W AC Power Module Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China
