| 解碼格式 | Ultra 265, H.265, H.264 Smart Off: H265: 3 x 32MP@30, 6 x 16MP@30, 8 x |
|---|
| Smart Off: | 12MP@30, 12 x 4K@30, 16 x 6MP@30, 19 x 3 x 32MP@30, 6 x 16MP@30, 8 x 12MP@30, 12 x 5MP@30, 24 x 4MP@30, 32 x 3MP@30, 48 x 4K@30, 16 x 6MP@30, 19 x 5MP@30, 24 x 1080P@30, 96 x 720P@30, 128 x D1@30 |
|---|
| 解碼能力 | 4MP@30, 32 x 3MP@30, 48 x 1080P@30, 64 x H264: 2 x 32MP@30, 4 x 16MP@30, 6 x 720P@30 12MP@30, 9 x 4K@30, 12 x 6MP@30, 14 x |
|---|
| Smart On: Smart On: When Smart by NVR on, | 5MP@30, 18 x 4MP@30, 24 x 3MP@30, 36 x the decoding capacity is same as Smart off. 1080P@30, 72 x 720P@30, 128 x D1@30 Smart On: Smart On: When Smart by NVR on, the decoding capacity is same as Smart off. The resolution of each channel cannot exceed 8640 pixels in length or width, For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from |
|---|
| 音訊壓縮 | G.711A, G.711U |
|---|
| 入口頻寬 | 8K OFF: 768 Mbps, 8K ON: 512 Mbps |
|---|
| 出口頻寬 | 8K OFF: 768 Mbps, 8K ON: 640 Mbps |
|---|
| Max Remote Users | 128 |
|---|
| TCP/IP, SMTP, RTSP, | UPnP, NTP, DHCP, PPPoE, HTTP, DNS, DDNS, IPv6, IPv4, HTTPS, SNMP, NFS, 802.1x |
|---|
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
|---|
| IP 視頻輸入 | 64-ch 128-ch |
|---|
| RCA Audio Input | 1-ch Support 2-ch HDMI, 2-ch VGA, HDMI1 and VGA1 simultaneous output, HDMI2 and VGA2 simultaneous output, HDMI1/VGA1 and HDMI2/VGA2 independent output |
|---|
| HDMI1: 8K (7680 × 4320)/30 Hz, 4K (3840 | 2160)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, |
|---|
| HDMI 輸出 | 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz; HDMI2: 4K (3840 × 2160)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
|---|
| VGA 輸出 | 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
|---|
| RCA Audio Output | 2-ch |
|---|
| Liveview Display | 1/4/6/8/9/16/25/36/64 |
|---|
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
|---|
| Playback Screen | 1/4/9/16 1/3 |
|---|
| POS | All channels |
|---|
| Ip Speaker | 64-ch |
|---|
| 雙向語音 | 1-ch, RCA (Using the audio input and output) 16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution) |
|---|
| 錄影解像度 | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
|---|
| Num of Concurrent Playback | 32-ch 16-ch All channels (up to 16 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring, People Counting Face Detection, Face Comparison, Ultra Motion Detection (UMD), Smart Intrusion Prevention (SIP), Video Metadata, Plate Comparison Single Mode (SIP), Single Mode (UMD), Mixed Mode (Face Recognition+Mixed- |
|---|
| Smart by NVR Analyzer Mode | Dection+AcuSearch/AcuTrack), Modes cannot active simultaneously, only one mode can active at a time. Face Snapshot Search, Face Comparison Search, Behavior Search, Motor Vehicle Search, |
|---|
| VCA Search | Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, AcuSearch, AcuTrack, SmartSearch+ All channels with UNV SIP/UMD Camera, Up to 32-ch with normal camera (UNV and Third-part brand, 32-ch 2MP, 16-ch 4MP, 8-ch 4K) All channels with UNV SIP/UMD Camera, Up to 32-ch with normal camera (UNV and Third-part brand, 32-ch 2MP, 16-ch 4MP, 8-ch 4K) |
|---|
| SeekFree Performance | N/A |
|---|
| SeekFree Language | N/A Up to 6-ch with normal camera (UNV and Third-part brand, 6-ch 2MP, 3-ch 4MP, 1-ch 4K), Up to 32-ch with UNV Face Detection Camera |
|---|
| Search by Image | Support |
|---|
| Plate Comparion by NVR | All channels with UNV LPR Camera, normal/Third-part brand cameras not supported Up to 5 vehicle picture libraries, with up to Up to 5 vehicle picture libraries, with up to 5,000 vehicle pictures in total 25,000 vehicle pictures in total |
|---|
| SIP by NVR with normal | Up to 24-ch with normal camera (UNV and Third-part brand, 24-ch 2MP, 12-ch 4MP, 6-ch 4K) Up to 32-ch with normal camera (UNV and Third-part brand, 32-ch 2MP, 16-ch 4MP, 8-ch 4K) Up to 6-ch with normal camera (UNV and Third-part brand, 6-ch 2MP, 3-ch 4MP, 1-ch 4K) Motor Vehicle: Vehicle Type, Vehicle Color, Vehicle Brand, Direction, Plate Type, Plate Color, Non-Motor Vehicle: Non-Motor Vehicle Type |
|---|
| SATA | 16 SATA Interfaces Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C.) |
|---|
| Disk Group | Support |
|---|
| Redundant Storage | Support |
|---|
| Disk Array Type | RAID 0, 1, 5, 6, 10, 50, 60 |
|---|
| Hot Swap | Support |
|---|
| 網絡接口 | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
|---|
| Network Working Mode | Muli-access, load balance, network fault-tolerance |
|---|
| USB | Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0 |
|---|
| RS485 | 1 |
|---|
| RS232 | 1 |
|---|
| Alarm In | 16-ch |
|---|
| Alarm Out | 10-ch |
|---|
| eSATA | 1 |
|---|
| miniSAS | 1 N/A |
|---|
| 電源輸出 | 12 V |
|---|
| 供電 | AC 220 V |
|---|
| Power Switch | Support |
|---|
| Redundant Power Supply | Support |
|---|
| Buzzer | Support |
|---|
| 工作溫度 | -10 ℃ to 55 ℃ (14 ℉ to 131 ℉) |
|---|
| 工作濕度 | ≤ 90% RH (non-condensing) ≤50W |
|---|
| Heat Dissipation | Fan, Radiator |
|---|
| Weight (without HDD) | ≤ 8.0Kg (17.6lb) |
|---|
| Height | 3U |
|---|

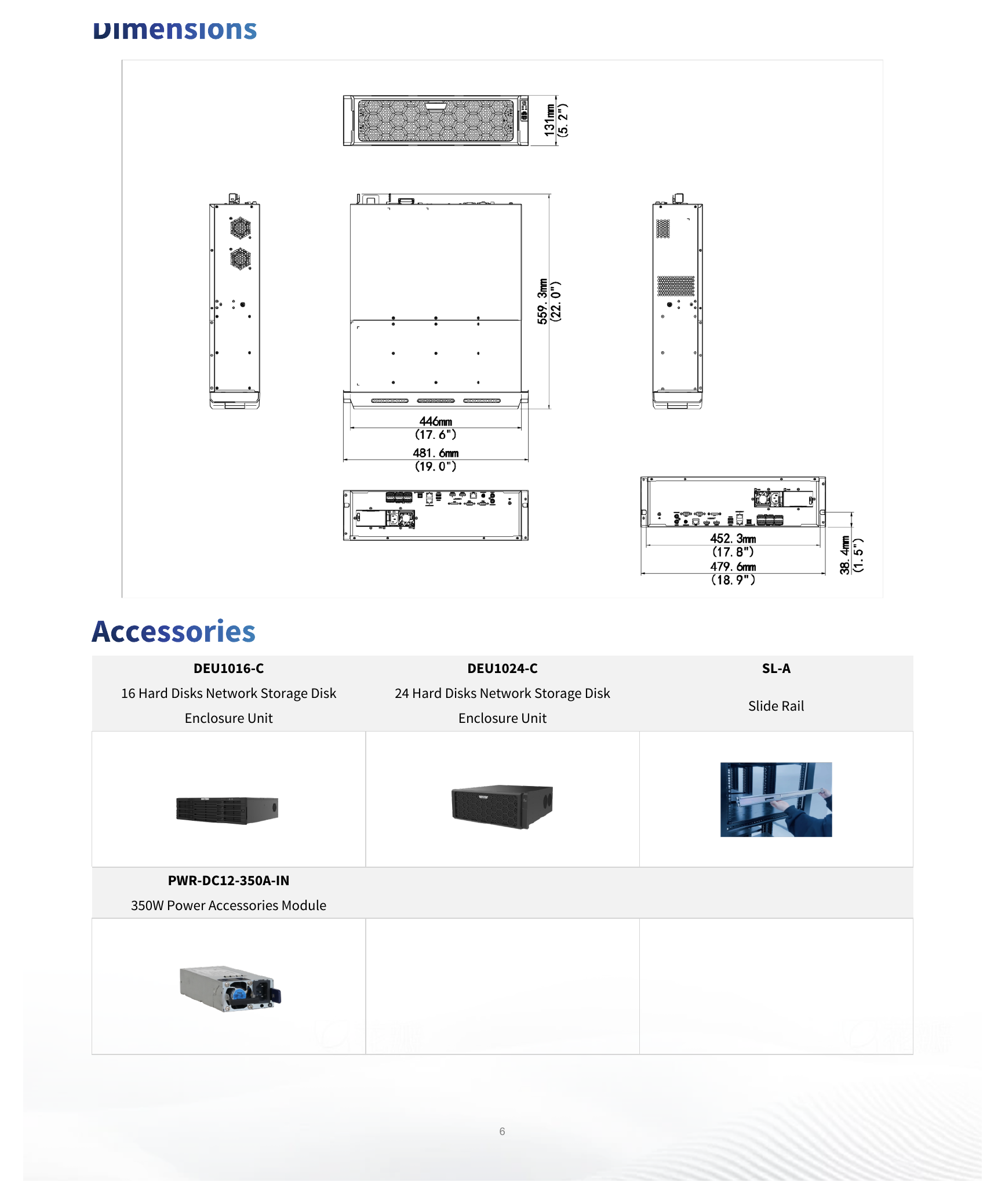

| 尺寸 | 481.6mm × 559.3mm × 131.0mm (19.0" ×22.0" ×5.2" ) |
|---|
| NDAA Compliant | Support |
|---|
| Certification | CE; FCC; UL; RoHS; WEEE |
|---|
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
|---|
| FCC | Part15 Subpart B |
|---|
| Preset Num | 32 |
|---|
| N+1 Hot Spare | Support |
|---|
| Fisheye Dewarping by IPC | Support Support (Max 1-CH, Max 12MP )|After fisheye |
|---|
| Fisheye Dewarping by NVR | correction, the actual display resolution will be Support Fisheye correction is not supported by NVR |
|---|
| ANR | Support Support |
|---|
| UCS (Web socket) | Support |
|---|
| NAS | Support |
|---|
| Ucode Basic Mode | Support |
|---|
| Ucode Advanced Mode | Support |
|---|
| Dual-lens Cameras | Support |
|---|
| Box-Dome Linkage | Support 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, |
|---|
| GUI Language | Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
|---|
| Decoding Capability (1080P) | N/A |
|---|
| DEU1016-C | DEU1024-C SL-A 16 Hard Disks Network Storage Disk 24 Hard Disks Network Storage Disk Slide Rail |
|---|
| Enclosure Unit | Enclosure Unit PWR-DC12-350A-IN 350W Power Accessories Module Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
|---|
