| 解碼格式 | Ultra 265, H.265, H.264 |
|---|
| H264 : 2 x 32MP@30, 4 x 16MP@30, 6 x | H264 : 2 x 32MP@30, 4 x 16MP@30, 6 x 12MP@30, 9 x 4K@30, 14 x 5MP@30, 18 x 12MP@30, 9 x 4K@30, 14 x 5MP@30, 18 x 4MP@30, 24 x 3MP@30, 36 x 1080P@30, 64 x 4MP@30, 24 x 3MP@30, 36 x 1080P@30, 72 x 720P@30 720P@30, 128 x D1 |
|---|
| H265 : 3 x 32MP@30, 6 x 16MP@30, 8 x | H265 : 3 x 32MP@30, 6 x 16MP@30, 8 x 12MP@30, 12 x 4K@30, 19 x 5MP@30, 24 x 12MP@30, 12 x 4K@30, 19 x 5MP@30, 24 x 4MP@30, 32 x 3MP@30, 48 x 1080P@30, 64 x 4MP@30, 32 x 3MP@30, 48 x 1080P@30, 96 x 720P@30 720P@30, 128 x D1 The resolution of each channel cannot exceed 8640 pixels in length or width, For VGA/HDMI independent output, the VGA live video is output by default. To output the highest reso |
|---|
| 音訊壓縮 | G.711A, G.711U |
|---|
| 入口頻寬 | 640Mbps |
|---|
| 出口頻寬 | 640Mbps |
|---|
| Remote Users | 128 |
|---|
| TCP/IP, P2P, | UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4 |
|---|
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
|---|
| IP 視頻輸入 | 64-ch 128-ch |
|---|
| RCA Audio Input | 1-ch |
|---|
| HDMI1: 8K (7680 × 4320)/30 Hz, 4K (3840 | 2160)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, |
|---|
| HDMI 輸出 | 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz; HDMI2: 4K (3840 × 2160)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
|---|
| VGA 輸出 | 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
|---|
| RCA Audio Output | 2-ch |
|---|
| Liveview Display | 1/4/6/8/9/16/25/36/64 |
|---|
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
|---|
| 雙向語音 | 1-ch, RCA (Using the audio input and output) 16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution) |
|---|
| 錄影解像度 | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
|---|
| Synchronous Playback in | 16-ch All channels (up to 32 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map Defocus Detection, Scene Change Detection, Object Left Behind, O |
|---|
| SATA | 16 SATA Interfaces Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C.) |
|---|
| Disk Group | Support |
|---|
| Redundant Storage | Support |
|---|
| Disk Array Type | RAID 0, 1, 5, 6, 10, 50, 60 |
|---|
| Hot Swap | Support |
|---|
| 網絡接口 | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
|---|
| USB | Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0 |
|---|
| RS485 | 1 |
|---|
| RS232 | 1 |
|---|
| Alarm In | 16-ch |
|---|
| Alarm Out | 10-ch |
|---|
| 電源輸出 | 12 V |
|---|
| 供電 | AC 100 to 240 V |
|---|
| Power Switch | Support |
|---|
| Redundant Power Supply | Support |
|---|
| 工作溫度 | -10 ℃ to 55 ℃ (14 ℉ to 131 ℉) |
|---|
| 工作濕度 | ≤ 90% RH (non-condensing) ≤ 50W |
|---|
| Weight (without HDD) | ≤ 6.5Kg (14.3lb) |
|---|
| Height | 3U |
|---|

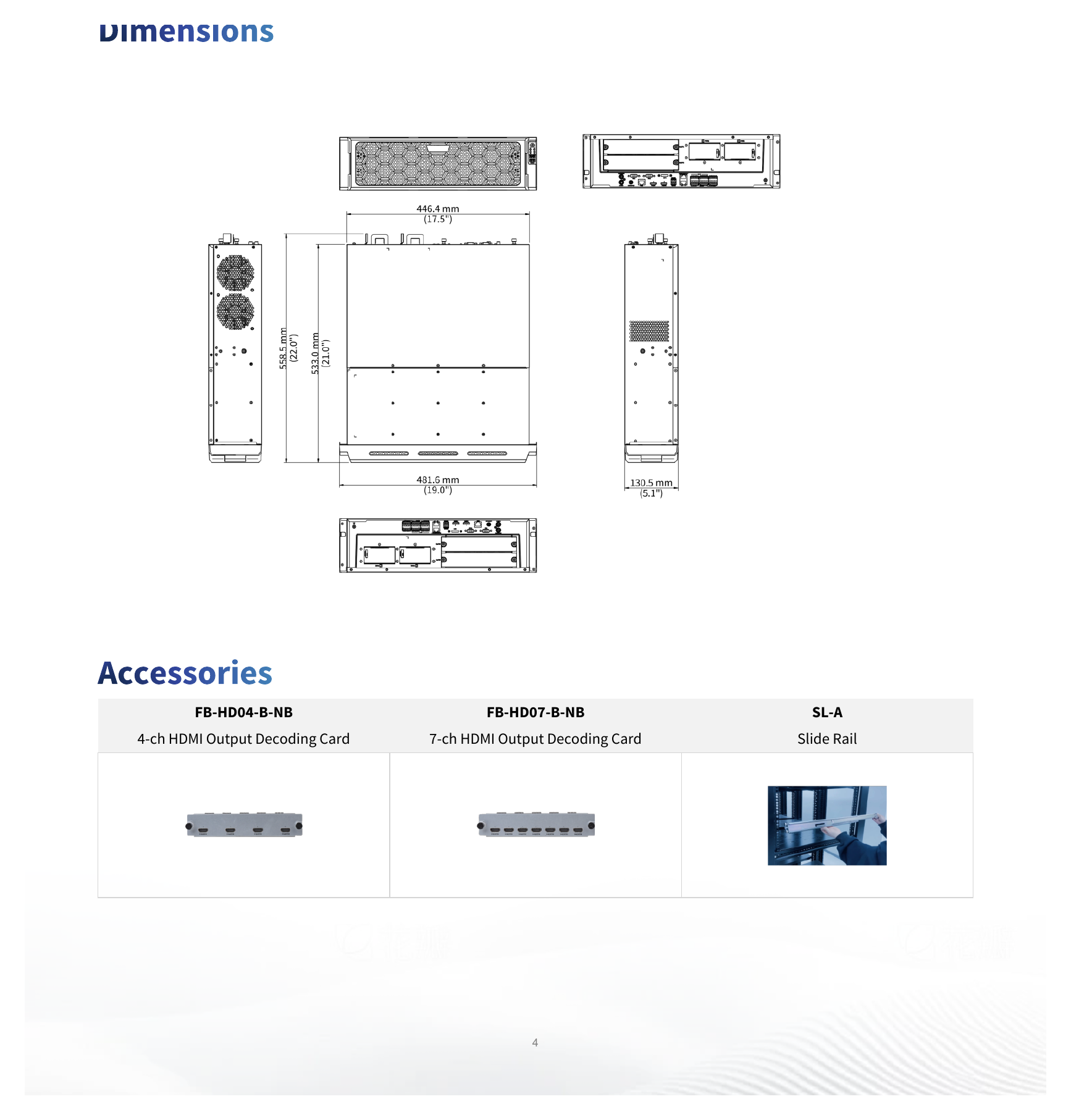

| 尺寸 | 482mm × 533mm × 131mm (19.0"×21.0"×5.1") |
|---|
| Certification | CE; FCC; UL; RoHS; WEEE |
|---|
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
|---|
| FCC | Part15 Subpart B 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, |
|---|
| GUI Language | Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
|---|
| FB-HD04-B-NB | FB-HD07-B-NB SL-A 4-ch HDMI Output Decoding Card 7-ch HDMI Output Decoding Card Slide Rail PWR-DC12-350A-IN 350W Power Accessories Module Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
|---|
