| Camera | BLC Mode BLC / HLC / WDR |
|---|
| 影像感測器 | 1/2" CMOS WDR 120dB |
|---|
| Effective Pixels | 3840(H)×2160(V), 8MP Gain Control AGC |
|---|
| Scanning System | Progressive Noise Reduction 2D/3D |
|---|
| PAL: 1/4s~1/100,000s | White Balance Auto / Manual Electronic Shutter Speed NTSC: 1/3s~1/100,000s |
|---|
| Smart IR | Auto / Manual |
|---|
| Minimum Illumination | 0.005Lux/F1.5, 30IRE, 0Lux IR on Certifications |
|---|
| S/N Ratio | More than 65dB CE (EN55032, EN55024, EN50130-4) |
|---|
| IR Distance | Up to 80m (262feet) Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR On/Off Control | Auto / Manual |
|---|
| IR LEDs | 4 |
|---|
| Audio Interface | 1ch in & Built-in Mic |
|---|
| 鏡頭類型 | Motorized lens / Fixed iris Eelectrical 12V DC ±30% (It is recommended to use a power |
|---|
| Mount Type | Board-in Power Supply adapter to supply the power for one camera) |
|---|
| 焦距 | 3.7-11mm |
|---|
| 功耗 | Max 12.5W (12V DC, IR on) |
|---|
| Max Aperture | F1.5 Environmental |
|---|
| Angle of View | H: 112°~46° -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Operating Conditions * Start up should be done at above -30°C (-22°F) |
|---|
| Focus Control | Auto / Manual |
|---|
| 儲存環境 | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH 200mm |
|---|
| Close Focus Distance | Ingress Protection & Vandal 7.87'' IP67 Resistance |
|---|
| DORI Distance | Construction Note: The DORI distance is a “general proximity” of distance which makes it easy to Casing Aluminium pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Dimensions 244.1mm×90.4mm×90.4mm (9.61"×3.56"×3.56") criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 淨重 | 0.76kg (1.68lb) |
|---|
| DORI 偵測距離 | Distance |
|---|
| Definition | Wide Tele |
|---|
| Detect | 25px/m (8px/ft) 83m(272ft) 190m(623ft) |
|---|
| Observe | 63px/m (19px/ft) 33m(108ft) 76m(249ft) |
|---|
| Recognize | 125px/m (38px/ft) 17m(56ft) 38m(125ft) |
|---|
| Identify | 250px/m (76px/ft) 8m(26ft) 19m(62ft) Pan / Tilt / Rotation Pan: 0° ~ 360° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|---|
| 解像度 | 8MP (3840×2160) |
|---|
| Frame Rate | 15fps@4K, 20fps@6MP, 25/30fps@4MP 1-channel BNC high definition video output / CVBS Video Output video output (DIP switch) |
|---|
| Day/Night | Auto (ICR) / Manual www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| PFA130-E | PFA130-E + PFA152-E |
|---|
| 類型 | Part Number Description 4K Starlight HDCVI IR Bullet Camera, DH-HAC-HFW2802TP-Z-A PAL (For centralized power supply, 3.7~11mm please select -DP model) 4K Camera 4K Starlight HDCVI IR Bullet Camera, DH-HAC-HFW2802TN-Z-A NTSC (For centralized power supply, 3.7~11mm please select -DP model) Junction box (For use alone or with PFA130-E PFA152-E pole mount) Pole mount (For use with PFA130-E PFA152-E |
|---|
| junction box) | Corner Mount PFA130-E + PFA151 |
|---|
| Accessories | Corner mount braket(For use with PFA151 PFA130-E junction box) |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM320 | 12V 2A Power Adapter |
|---|

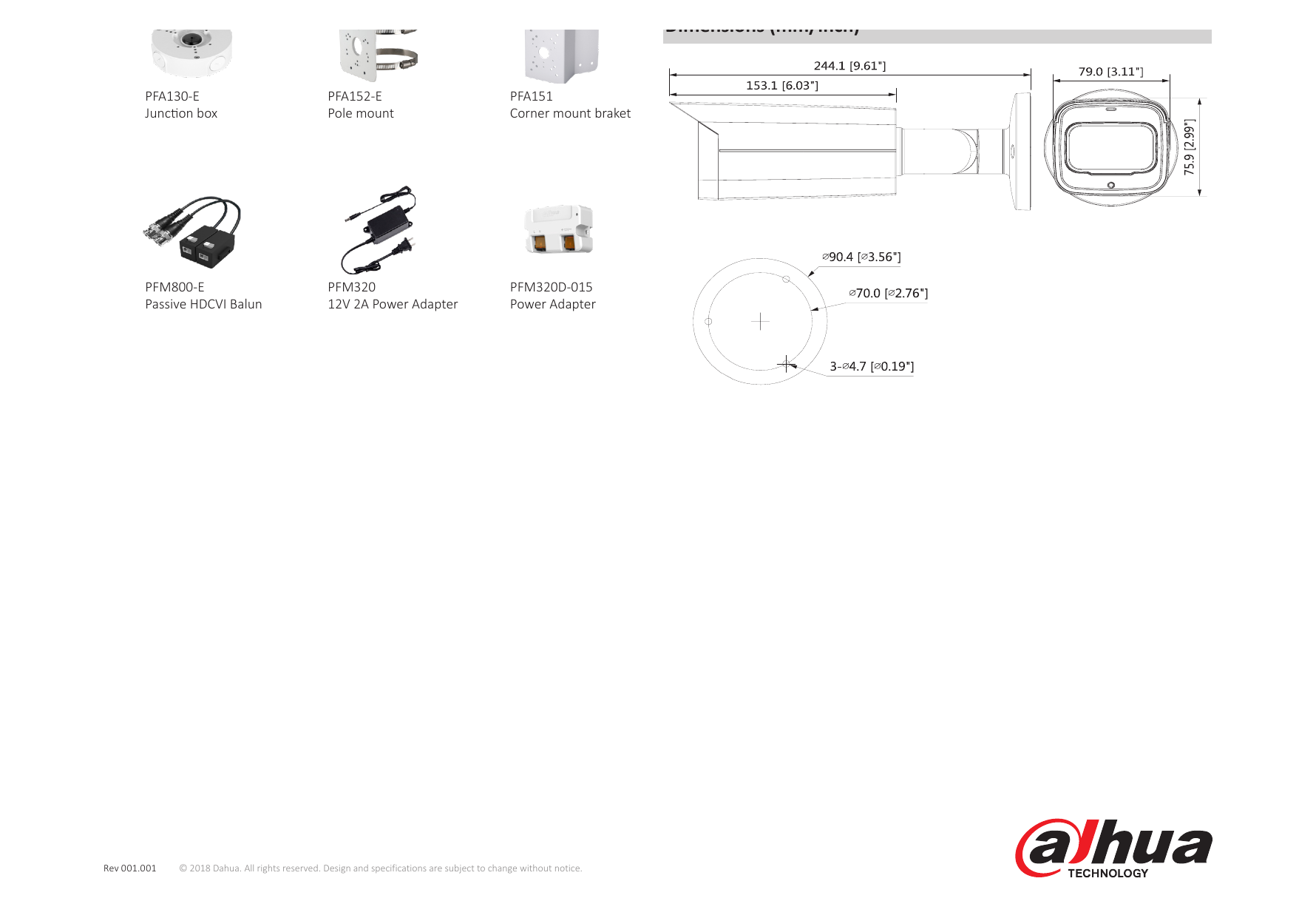

| PFM320D-015 | 12V 1.5A Power Adapter Accessories Optional: Dimensions (mm/inch) |
|---|
| Junction box | Pole mount Corner mount braket |
|---|
| Passive HDCVI Balun | 12V 2A Power Adapter Power Adapter |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
