| Camera | Noise Reduction 3D NR |
|---|
| 影像感測器 | 2 MP CMOS Illumination Mode Smart IR |
|---|
| 最大解像度 | 1920 (H) × 1080 (V) Mirror Yes |
|---|
| Scanning System | Progressive Privacy Masking Off/On (8 areas, rectangle) |
|---|
| PAL: 1/25 s–1/100000 s | Certification Electronic Shutter Speed NTSC: 1/30 s–1/100000 s CE-LVD: EN 62368-1; 0.01 lux@F2.0 (Color, 30 IRE) Certifications CE-EMC: EN 55032; EN 55035; |
|---|
| 最低照度 | 0.001 lux@F2.0 (B/W, 30 IRE) FCC: 47 CFR FCC Part 15, Subpart B 0 lux (Illuminator on) Port |
|---|
| S/N Ratio | >65 dB Video output choices of CVI/TVI/AHD/CVBS by one Video Output |
|---|
| Illumination Distance | 30 m (98.43 ft) BNC port |
|---|
| Illuminator On/Off Control | Auto Power |
|---|
| 供電 | 12 VDC ± 30% |
|---|
| Illuminator Number | 2 (IR light) |
|---|
| Pan: 0°–360° | Power Consumption Max 2.7 W (12 VDC, IR on) |
|---|
| 角度調節 | Tilt: 0°–78° |
|---|
| Rotation: 0°–360° | Environment |
|---|
| 鏡頭 | Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F) |
|---|
| 鏡頭類型 | Fixed-focal Operating Humidity <95% (RH), non-condensing |
|---|
| 鏡頭接口 | M12 Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F) |
|---|
| 焦距 | 2.8 mm; 3.6 mm Storage Humidity <95% (RH), non-condensing |
|---|
| Max. Aperture | F2.0 Structure 2.8 mm: H: 102°; V: 60°; D: 129° Casing Material Plastic Field of View 3.6 mm: H: 83°; V: 48°; D: 105° |
|---|
| Product Dimensions | Φ97.1 mm × 93.0 mm (Φ3.82" × 3.66") |
|---|
| Iris Control | Fixed 2.8 mm: 0.5 m (1.64 ft) |
|---|
| 淨重 | 0.14 kg (0.31 lb) Close Focus Distance 3.6 mm: 0.7 m (2.30 ft) |
|---|
| 毛重 | 0.25 kg (0.55 lb) |
|---|
| 安裝 | Wall mount; ceiling mount; vertical pole mount |
|---|
| DORI 偵測距離 | 41.4 m 16.5 m 8.3 m 4.1 m 2.8 mm |
|---|
| Distance | (135.83 ft) (42.13 ft) ( 27.23 ft) (13.45 ft) 50.9 m 20.3 m 10.2 m 5.1 m 3.6 mm (166.99 ft) (66.60 ft) (33.46 ft) (16.73 ft) CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; Video Frame Rate TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H |
|---|
| 解像度 | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
|---|
| Day/Night | Auto(ICR)/Color/B/W |
|---|
| BLC | BLC; HLC; DWDR |
|---|
| WDR | DWDR |
|---|
| White Balance | Auto; Area white balance www.dahuasecurity.com Ordering Information |
|---|
| 類型 | Model Description 2MP IR HDCVI Fixed-focal Eyeball Camera, |
|---|
| DH-HAC-HDW1200TRQP | PAL 2M Camera 2MP IR HDCVI Fixed-focal Eyeball Camera, |
|---|
| DH-HAC-HDW1200TRQN | NTSC |
|---|
| PFA13G | Junction Box |
|---|
| PFA109 | Mount Adapter |
|---|
| PFB220C | Ceiling Mount Bracket |
|---|
| PFB205W-E | Wall Mount Bracket Accessories (Optional) Pole Mount Bracket PFA152-E |
|---|
| PFM800-E | 1 Channel Passive HDCVI Balun |
|---|
| PFM321D | 12V 1A Power Adapter |
|---|

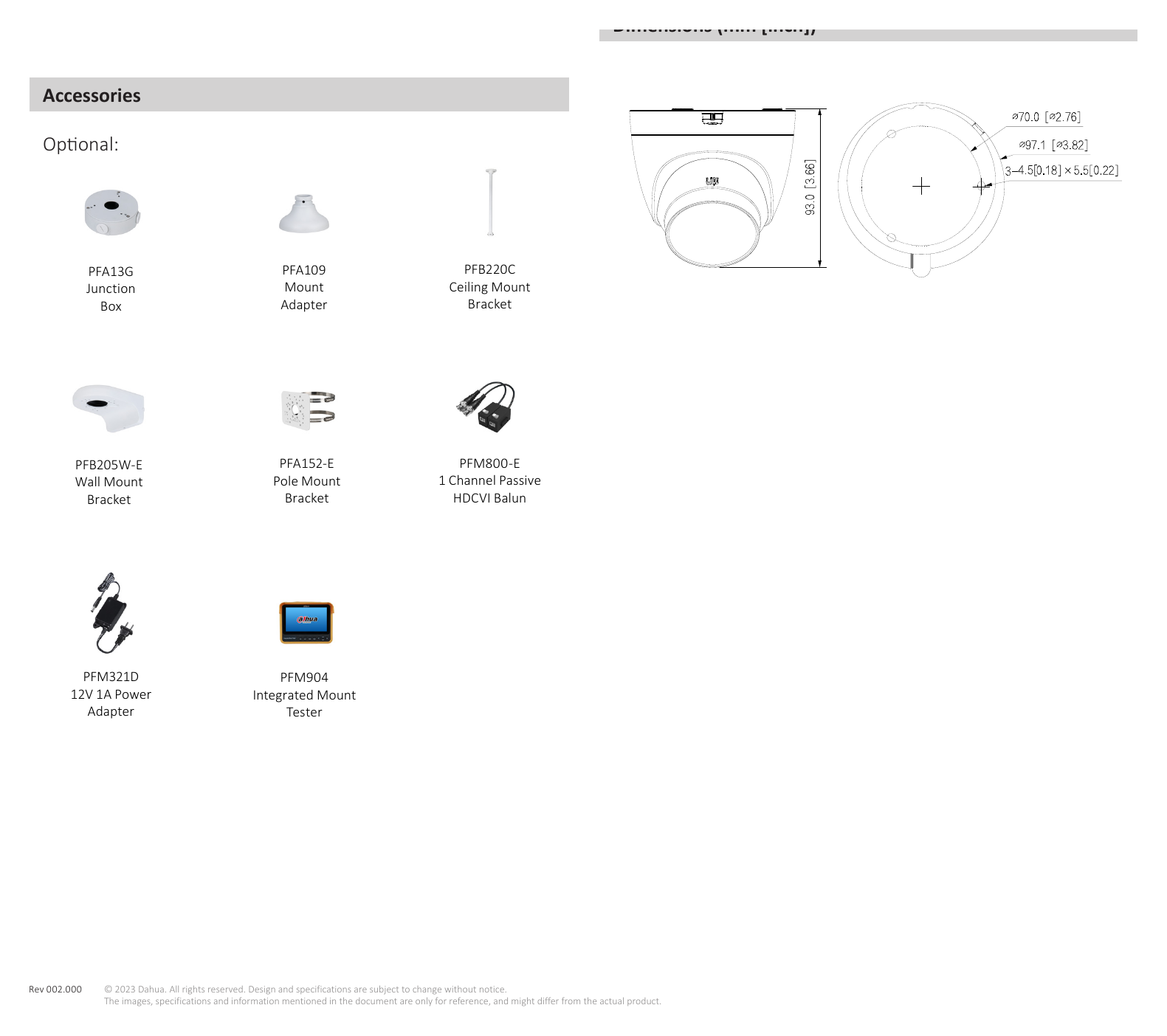

| PFM904 | Integrated Mount Tester Dimensions (mm [inch]) Accessories Optional: |
|---|
| Junction | Mount Ceiling Mount |
|---|
| Box | Adapter Bracket |
|---|
| Wall Mount | Pole Mount 1 Channel Passive |
|---|
| Bracket | Bracket HDCVI Balun |
|---|
| Adapter | Tester |
|---|
| Rev 002.000 | © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
