| 視頻壓縮 | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|---|
| Encoding Resolution | 1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF Main stream: For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps |
|---|
| Frame Rate | For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps For standard definition stream access: WD1/4CIF/VGA/CIF@25fps Sub-stream: CIF/QVGA@15fps |
|---|
| Video Bitrate | 32 Kbps to 4 Mbps |
|---|
| Dual-stream | Nonsupport |
|---|
| 碼流類型 | Video, Video & Audio |
|---|
| 音訊壓縮 | G.711u |
|---|
| Audio Bitrate | 64 Kbps 2-ch (up to 18-ch) |
|---|
| IP 視頻輸入 | Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras 32-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
|---|
| HDTVI Input | 1080p25, 1080p30, 720p25, 720p30 |
|---|
| AHD Input | 1080p25, 1080p30, 720p25, 720p30 |
|---|
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 |
|---|
| CVBS Input | PAL/NTSC |
|---|
| VGA 輸出 | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
|---|
| HDMI 輸出 | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz 1-ch, RCA (2.0 Vp-p, 1 KΩ) 32-ch via coaxial cable |
|---|
| 音訊輸出 | 1-ch, RCA (Linear, 1 KΩ) |
|---|
| 雙向語音 | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
|---|
| 同步回放 | 16-ch |
|---|
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω) |
|---|
| 遠程連接 | 128 TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, EHome |
|---|
| Total Bandwidth | 128 Mbps |
|---|
| 網絡接口 | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
|---|
| WiFi | Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
|---|
| Serial Interface | RS-485 (half-duplex) |
|---|
| SATA | 2 SATA interface |
|---|
| 容量 | Up to 10 TB capacity for each disk Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0 |
|---|
| 供電 | 12 VDC, 3.33 A |
|---|
| 功耗 | ≤ 18 W (without HDD) |
|---|
| 工作溫度 | -10 °C to 55 °C (14 °F to 131 °F) |
|---|
| 工作濕度 | 10% to 90% |
|---|
| 尺寸 | 380 × 320 × 48 mm (10.2 × 8.7 × 1.8 inch) |
|---|
| 重量 | ≤ 2.2 kg (without HDD, 4.9 lb.) |
|---|

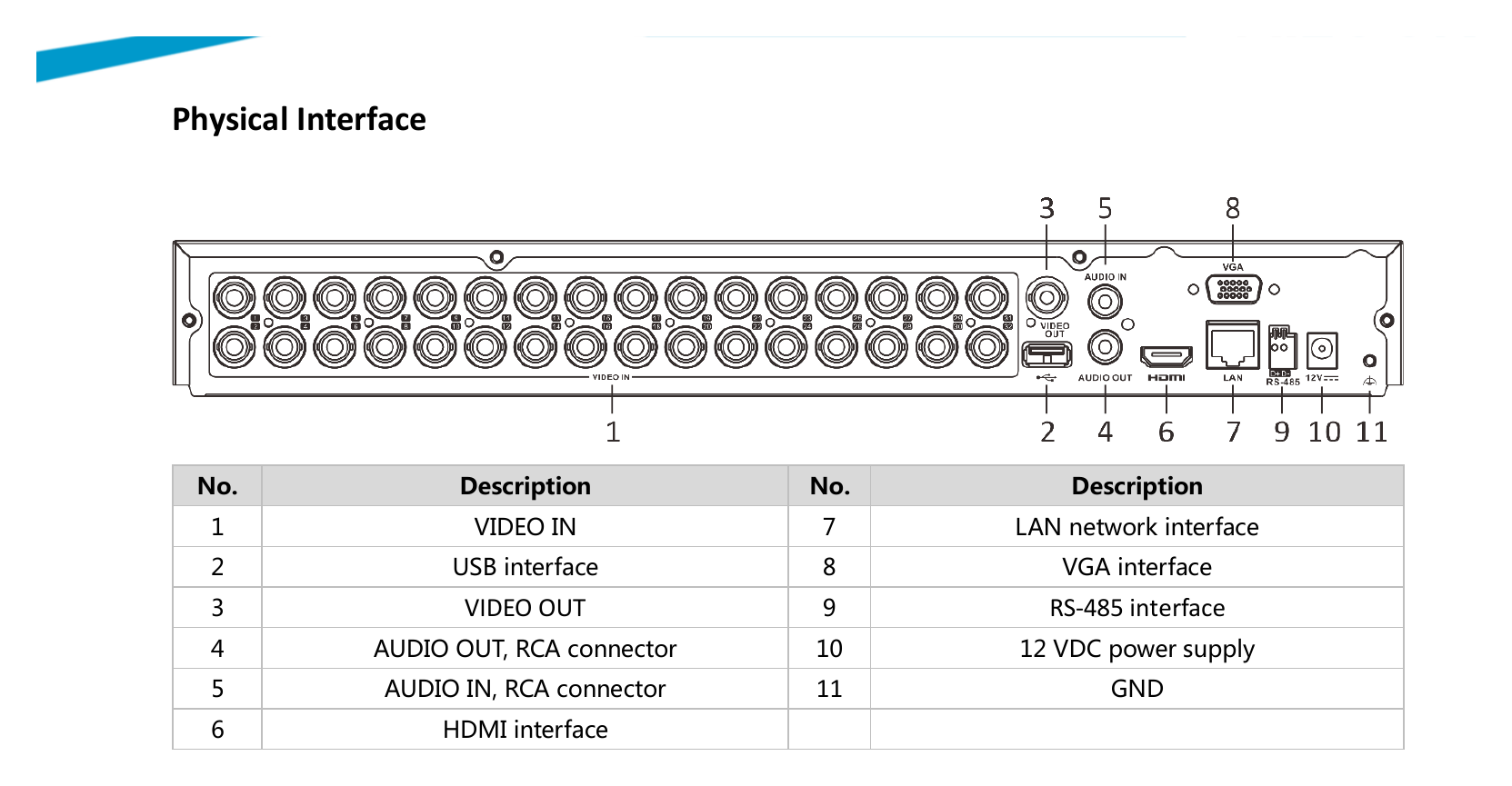

| No. | Description No. Description 1 VIDEO IN 7 LAN network interface 2 USB interface 8 VGA interface 3 VIDEO OUT 9 RS-485 interface 4 AUDIO OUT, RCA connector 10 12 VDC power supply 5 AUDIO IN, RCA connector 11 GND 6 HDMI interface |
|---|
