| Camera | Illumination Mode Smart IR 4K COMS 4K CMOS Defog Electronic defog |
|---|
| 最大解像度 | 3840 (H) × 2160 (V) Digital Zoom 4× |
|---|
| Scanning System | Progressive Mirror Yes Electronic Shutter Speed |
|---|
| PAL: 1/3 s–1/100000 s | Privacy Masking Off/On (8 areas, rectangle) NTSC: 1/4 s–1/100000 s 0.001 lux@F1.5 (Color, 30 IRE) Certification |
|---|
| 最低照度 | 0.0001 lux@F1.5 (B/W, 30 IRE) CE-LVD: EN 62368-1; 0 lux (Illuminator on) CE-EMC: EN 55032; EN 55035; Certifications |
|---|
| S/N Ratio | >65dB FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 |
|---|
| Illumination Distance | 60 m (196.85 ft) Port |
|---|
| Illuminator On/Off Control | Auto Video output choices of CVI/TVI/AHD/CVBS by one BNC Video Output port (DIP Switch) |
|---|
| Illuminator Number | 3 (IR light) |
|---|
| 音訊輸入 | One channel built-in MIC Pan; 0°–355° |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–80° |
|---|
| Rotation: 0°–355° | Power 12 VDC ± 30% (It is recommended to use a power adapter |
|---|
| 鏡頭 | Power Supply to supply the power for one camera) |
|---|
| 鏡頭類型 | Motorized Vari-focal |
|---|
| 功耗 | Max 7.8 W (12 VDC, IR on) |
|---|
| Auto Focus | Yes |
|---|
| 鏡頭接口 | φ14 |
|---|
| 工作溫度 | –30 °C to +60 °C (–22 °F to +140 °F) |
|---|
| 焦距 | 2.7 mm–13.5 mm |
|---|
| 工作濕度 | <95% (RH), non-condensing |
|---|
| Max. Aperture | F1.5 |
|---|
| 儲存溫度 | –30 °C to +60 °C (–22 °F to +140 °F) |
|---|
| Field of View | H: 113°–47°; V: 60°–26°; D: 133°–53° |
|---|
| Storage Humidity | <95% (RH), non-condensing |
|---|
| Iris Control | Fixed |
|---|
| 防護等級 | IP67; IK10 |
|---|
| Close Focus Distance | 1.2 m (3.94 ft) Structure |
|---|
| Casing Material | Metal 83.4 m 33.4 m 16.7 m 8.3 m 2.7 mm Product Dimensions φ126 mm × 100 mm (φ4.96" × 3.94") (273.62 ft) (109.58 ft) (54.79 ft) (27.23 ft) 189.6 m 75.8 m 37.9 m 19.0 m |
|---|
| DORI 偵測距離 | 13.5 mm Net Weight 0.64 kg (1.41 lb) (622.05 ft) (248.69 ft) (124.34 ft) (62.34 ft) Distance *DORI (Detect, Observe, Recognize, Identify) is a standard system Gross Weight 0.83 Kg (1.83 lb) (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in Installation Wall mount; ceiling mount; vertical pole mount this table |
|---|
| Video Frame Rate | AHD: PAL: 4K@15 fps; NTSC: 4K@15 fps TVI: PAL: 4K@15 fps; NTSC: 4K@15 fps CVBS: PAL: 960H; NTSC: 960H 4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); Resolution 960H (960 × 576/960 × 480) |
|---|
| Day/Night | Auto(ICR)/Color/B/W |
|---|
| BLC | BLC; HLC; WDR; HLC-Pro |
|---|
| WDR | 120 dB |
|---|
| White Balance | Auto; Area white balance |
|---|
| Gain Control | Auto/Manual www.dahuasecurity.com Ordering Information |
|---|
| 類型 | Part Number Description |
|---|
| DH-HAC-HDB- | 4K Starlight HDCVI Motorized Vari-focal |
|---|
| W2802RAP-Z-A | IR Dome Camera, PAL 4K Camera |
|---|
| W2802RAN-Z-A | IR Dome Camera, NTSC |
|---|
| PFA197R | Junction Box |
|---|
| PFB206W | Wall Mount Bracket |
|---|
| PFB220C | Ceiling Mount Bracket |
|---|
| PFA109 | Mount Adapter Accessories (Optional) |
|---|
| PFA156 | Pole Mount Bracket |
|---|
| PFM800-4K | 1-CH Passive Video Balun |
|---|
| PFM321D | 12V 1A Power Adapter |
|---|

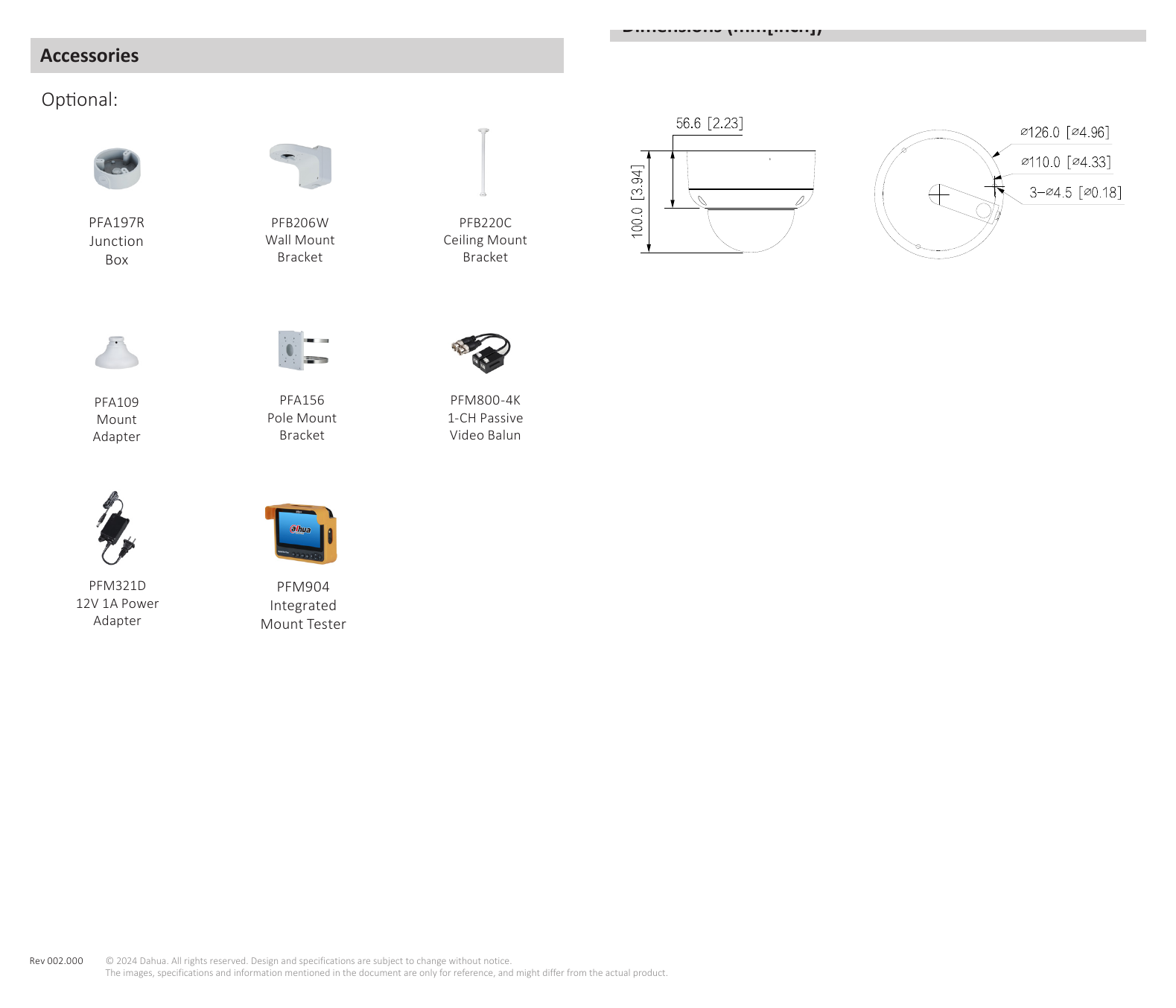

| PFM904 | Integrated Mount Tester Dimensions (mm[inch]) Accessories Optional: |
|---|
| Junction | Wall Mount Ceiling Mount |
|---|
| Box | Bracket Bracket |
|---|
| Mount | Pole Mount 1-CH Passive |
|---|
| Adapter | Bracket Video Balun |
|---|
| Rev 002.000 | © 2024 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
