Uniview IPC6824EL-X42-W-VH1 為IPC6824EL-X42-W-VH1，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC6824EL-X42-W-VH1 香港價格連安裝報價。
| Sensor | 1/1.8" CMOS |
|---|---|
| 最低照度 | Color: 0.0003 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | >56 dB |
| 焦距 | 6.0~252mm |
| Digital Zoom | 16X |
| Optical Zoom | 42X |
| Iris | F1.2 to F4.6 |
| Field of View (H) | 59.47° to 2.20° |
| Field of View (V) | 35.62° to 1.24° |
| Field of View (D) | 73.15° to 2.60° |
| DORI Distance (Detect) | 107.2 m to 3330.6 m (351.7 ft. to 10927.2 ft.) |
| DORI Distance (Observe) | 42.9 m to 1332.2 m (140.7 ft. to 4370.9 ft.) |
| DORI Distance (Recognize) | 21.4 m to 666.1 m (70.4 ft. to 2185.4 ft.) |
| DORI Distance (Identify) | 10.7 m to 333.1 m (35.1 ft. to 1092.9 ft.) |
| 隱私遮蔽 | 24 areas, up to 8 areas per scene |
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG Main Stream: 4 MP (2688 × 1520), max. 60 fps |
| Frame Rate | Sub Stream: 1080P (1920 × 1080), max. 60 fps Third Stream: D1 (720 × 576), max. 60 fps |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 10 OSDs |
| Auto Tracking | Support, target filtering: human, non-motor vehicle and vehicle |
| Multi-target Detection | Support Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density detection |
| Exception Detection | Object removed, Object Left Behind |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| 除霧 | Digital defog, Optical defog |
| EIS | Support |
| 防抖 | EIS (Gyroscope) Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output |
| 音訊壓縮 | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| 雙向語音 | Support |
| Suppression | Support |
| 取樣率 | 16 kHz |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | ANR, NAS (NFS) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Illuminator | Laser light, laser distance 500m SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and |
| 安全 | Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, TLS 1.3, WSSE and Digest Authentication for ONVIF |
| 客戶端 | EZStation, UNV-Link, UNV-Link Pro Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15 s to 1800 s |
| Preset Image Freeze | Support |
| Home Position | Support |
| Pan Range | 360° (endless) |
| Tilt Range | -15° to 90° (auto flip) |
| 水平速度 | 0.1°/s to 180°/s |
| 垂直速度 | 0.1°/s to 180°/s |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 7/2 |
| Serial Port | 1 * RS485 |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | 1 BNC (for debugging) CE-EMC (EN 55032: 2015+ A11: 2020; EN IEC 61000-3-2: 2019; EN 61000-3-3: 2013+ A: 2019; EN 55035: 2017+ A11: 2020) |
| Safety | CE LVD (EN IEC 62368-1: 2020+ A11: 2020) |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) IP67 (IEC 60529: 1989+AMD1: 1999+AMD2: 2013) ; IK10 (IEC62262; Anti-Vandalism Except for the Front Window) |
| 供電 | AC 24 V±25%, DC 24 V±25%, PoE (IEEE 802.3bt) |
| 功耗 | Max. 67 W |
| 電源接口 | Wires with cold-pressed terminal |
| 尺寸 | Ø226.7 mm × 440.3 mm (Ø8.93" × 17.33") (Ø × H) |
| 重量 | 6.9 kg (15.21 lb.) |
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| 防雷 | 6 KV |
| Reset Button | Support |
| Heater | Support |
| TR-UF45-A-IN | TR-SE45-A-IN TR-UC08-B-IN |
| Dome Indoor Ceiling Mounting Pedestal | Dome Ceiling Mounting Pole 500 Aluminium Alloy Corner Mounting Bracket |
| TR-UC08-A-IN | TR-UP08-B-IN TR-UP08-A-IN |
| Dome Corner Mounting Bracket | Aluminium Alloy Pole Mounting Bracket Dome Pole Mounting Bracket |
| TR-WE45-B-IN | TR-JB12-IN TR-CE45-IN |
| Dome Gooseneck Bracket | Dome Junction Box Dome Indoor Ceiling Mounting Bracket |
| TR-WE45-A-IN | TR-SE45-IN |
| Long Wall Mounting Bracket for Dome | Dome Ceiling Mounting Pole 200 Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

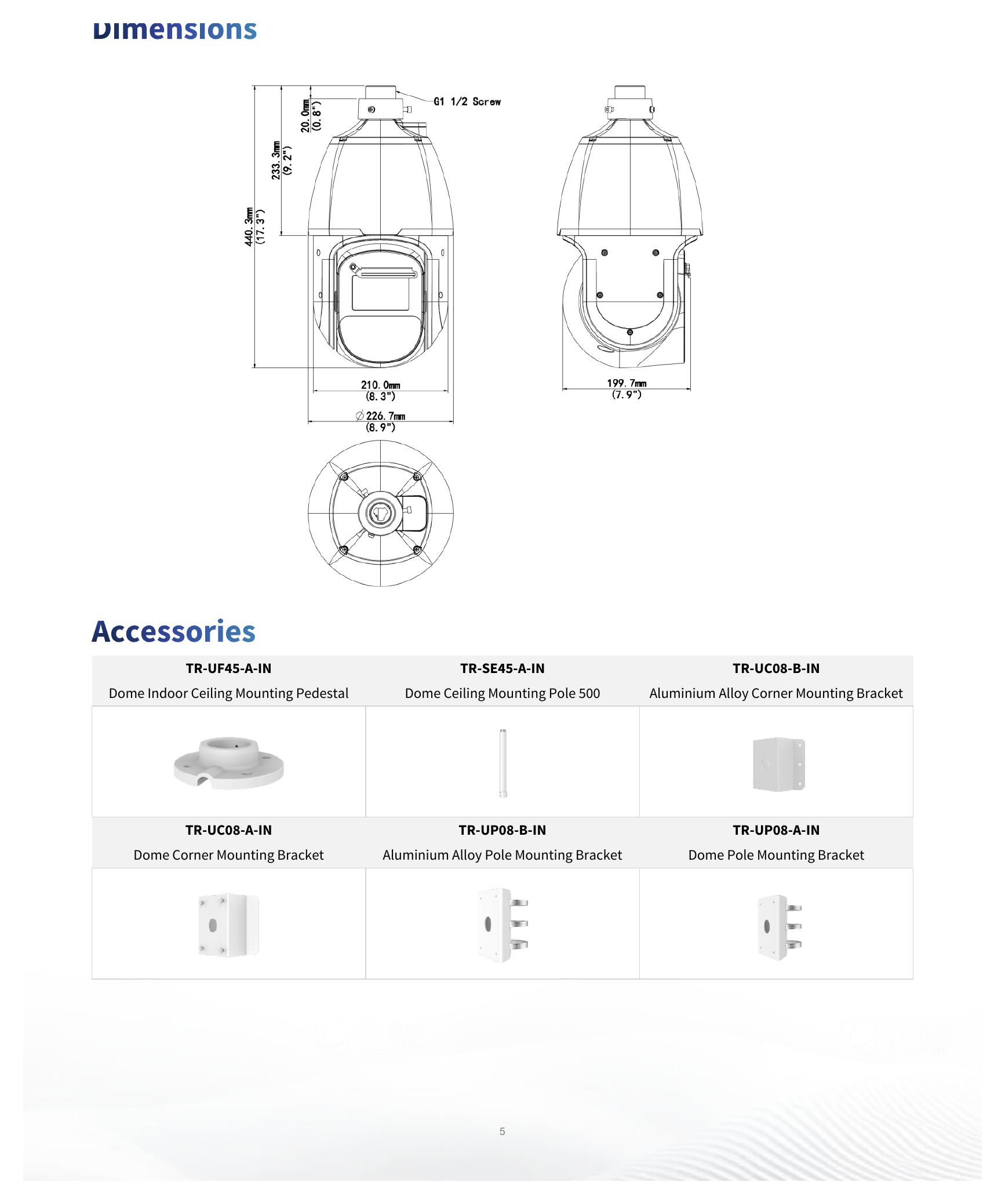

Ø226.7 mm × 440.3 mm (Ø8.93" × 17.33") (Ø × H)｜重量 6.9 kg (15.21 lb.)｜Unit: mm
IPC6824EL-X42-W-VH1 Uniview IPC6824EL-X42-W-VH1亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPC6824EL-X42-W-VH1 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Sensor方面，IPC6824EL-X42-W-VH1 係 1/1.8" CMOS，PKC1150-4-Z28-C-P 係 1/2.7" 5MP CMOS；Shutter方面，IPC6824EL-X42-W-VH1 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC6824EL-X42-W-VH1 係 6.0~252mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 IPC6824EL-X42-W-VH1 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 IPC6824EL-X42-W-VH1 Uniview IPC6824EL-X42-W-VH1供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：大圍CCTV 閉路電視安裝、大埔CCTV 閉路電視安裝、大角咀CCTV 閉路電視安裝、將軍澳CCTV 閉路電視安裝、尖沙咀CCTV 閉路電視安裝、屯門CCTV 閉路電視安裝、旺角CCTV 閉路電視安裝、柴灣CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 IPC6824EL-X42-W-VH1 香港價格連安裝報價。
